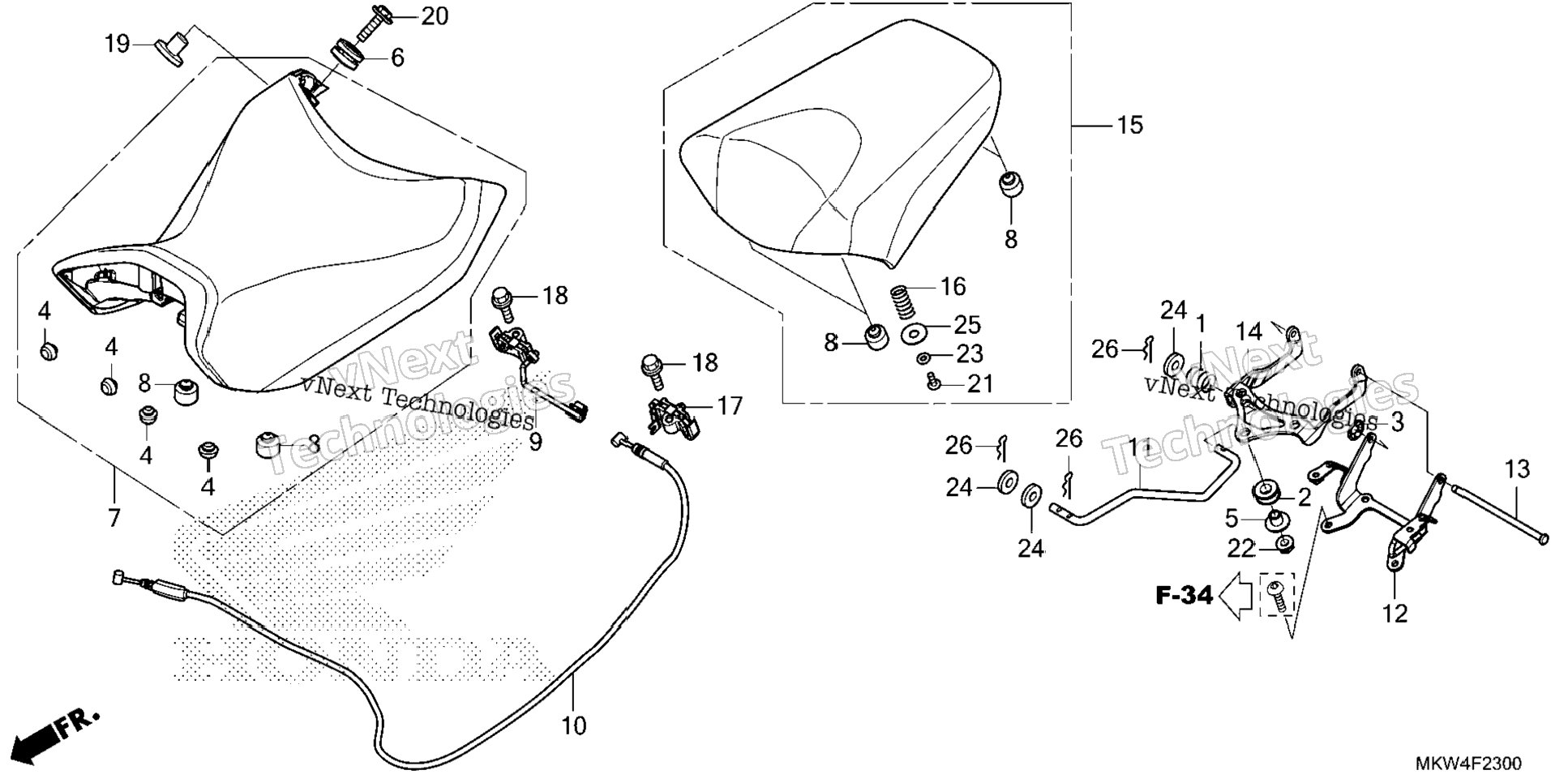

| 1 | 15447-149-000 | SPRING, OIL THROUGH | 1 шт. | — | |
|
| 2 | 17227-GS3-000 | RUBBER, AIR CLEANER MOUNTING | 3 шт. | — | |
|
| 3 | 18316-HW1-671 | NUT, PUSH (6MM) | 1 шт. | — | |
|
| 4 | 50354-428-000 | RUBBER B, STOPPER | 4 шт. | — | |
|
| 5 | 61104-435-000 | COLLAR, SIDE COVER | 3 шт. | — | |
|
| 6 | 61304-415-000 | RUBBER, HEADLIGHT CASE MOUNTING | 2 шт. | — | |
|
| 7 | 77100-MKW-D01ZA | SEAT ASSY., SINGLE (TYPE1) | 1 шт. | — | |
|
| 8 | 77206-GF0-000 | RUBBER, SEAT SETTING | 6 шт. | — | |
|
| 9 | 77220-MGS-D31 | LOCK A, SEAT CATCH | 1 шт. | — | |
|
| 10 | 77241-MKW-D01 | CABLE, SEAT LOCK | 1 шт. | — | |
|
| 11 | 77242-MGS-D30 | ROD, PILLION SEAT | 1 шт. | — | |
|
| 12 | 77250-MGS-D30 | STAY, PILLION SEAT HINGE | 1 шт. | — | |
|
| 13 | 77251-MGS-D30 | PIN, SEAT HINGE | 1 шт. | — | |
|
| 14 | 77255-MKW-D00 | ARM, SEAT HINGE | 1 шт. | — | |
|
| 15 | 77300-MKW-D01ZA | SEAT ASSY., PILLION (TYPE1) | 1 шт. | — | |
|
| 16 | 77302-MEE-000 | SPRING, SEAT LOCK | 2 шт. | — | |
|
| 17 | 77320-MGS-D31 | LOCK B, SEAT CATCH | 1 шт. | — | |
|
| 18 | 90101-MAS-000 | BOLT, FLANGE (6X20) | 2 шт. | — | |
|
| 19 | 90501-MFA-D00 | COLLAR (6.2X12) | 2 шт. | — | |
|
| 20 | 93404-06025-00 | BOLT-WASHER (6X25) | 2 шт. | — | |
|
| 21 | 93913-14220 | SCREW, TAPPING (4X12) | 2 шт. | — | |
|
| 22 | 94050-06080 | NUT, FLANGE (6MM) | 3 шт. | — | |
|
| 23 | 94101-04800 | WASHER, PLAIN (4MM) (Honda Code 0331462) | 2 шт. | — | |
|
| 24 | 94103-05800 | WASHER, PLAIN (5MM) | 3 шт. | — | |
|
| 25 | 94103-08800 | WASHER, PLAIN (8MM) | 2 шт. | — | |
|
| 26 | 94251-05000 | PIN, LOCK (5MM) | 3 шт. | — | |
|
