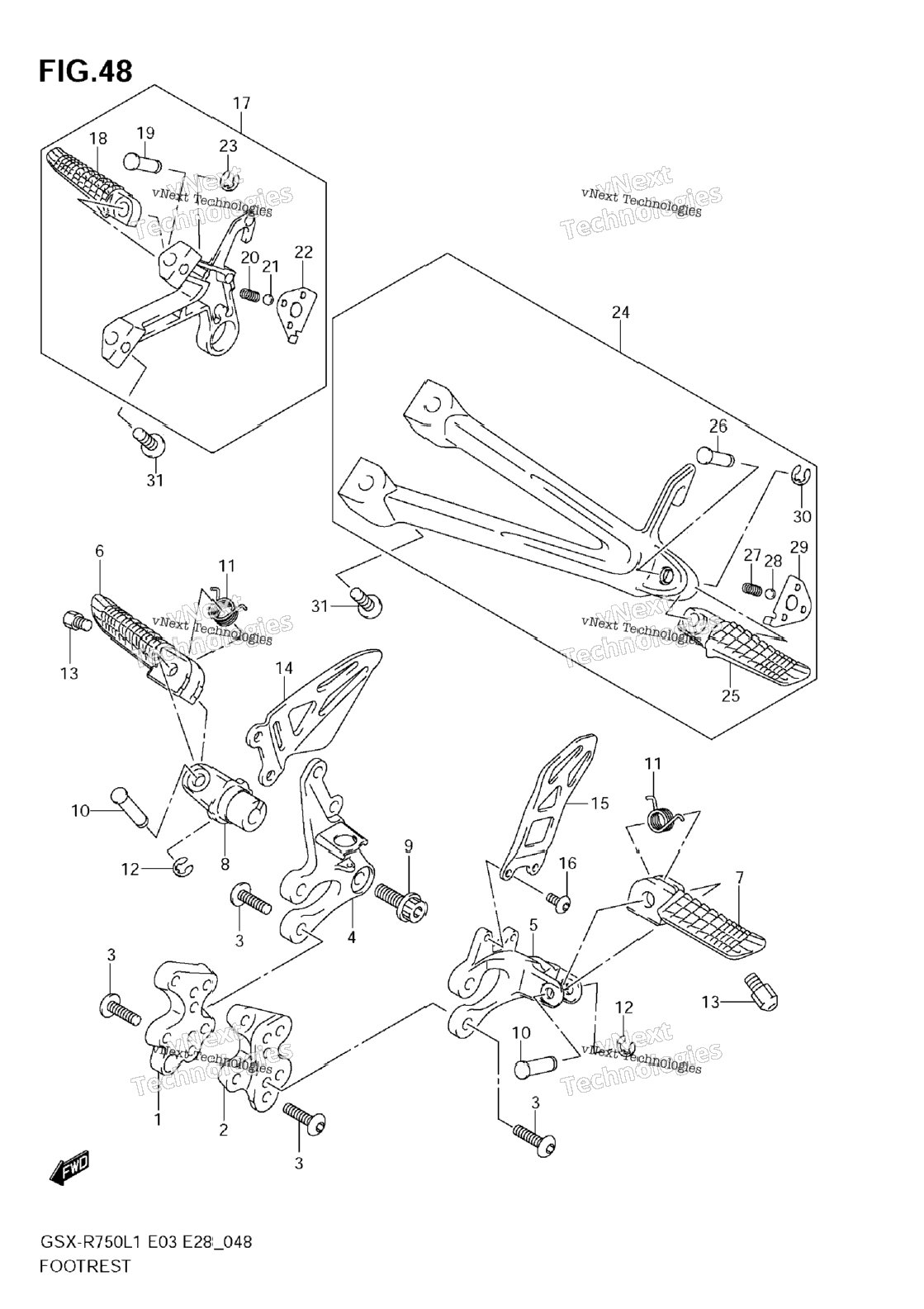

| 1 | 43541-14J00 | BRACKET, FOOTREST NO.1 RH | 1 шт. | — | |
|
| 2 | 43551-14J00 | BRACKET, FOOTREST NO.1 LH | 1 шт. | — | |
|
| 4 | 43511-14J00 | BRACKET, FOOTREST NO.2 RH | 1 шт. | — | |
|
| 5 | 43521-47H10 | BRACKET, FOOTREST NO.2 LH | 1 шт. | — | |
|
| 6 | 43516-37H00 | BAR, FOOTREST RH | 1 шт. | — | |
|
| 7 | 43526-37H00 | BAR, FOOTREST LH | 1 шт. | — | |
|
| 8 | 43531-41G10 | HOLDER, FOOTREST | 1 шт. | — | |
|
| 9 | 09106-10064 | BOLT (10X28) RH | 1 шт. | — | |
|
| 10 | 09208-08018 | PIN | 2 шт. | — | |
|
| 11 | 09448-14037 | SPRING | 2 шт. | — | |
|
| 13 | 43576-07D01 | BOLT, BANK SENSOR | 2 шт. | — | |
|
| 14 | 43571-47H00 | GUARD, FOOTREST RH | 1 шт. | — | |
|
| 15 | 43576-47H10 | GUARD, FOOTREST LH | 1 шт. | — | |
|
| 16 | 43577-35F00 | SCREW, LH | 2 шт. | — | |
|
| 17 | 43600-14J00 | FOOTREST, PILLION RH (SILVER) | 1 шт. | — | |
|
| 18 | 43611-37H00 | BAR, RH | 1 шт. | — | |
|
| 22 | 43816-47H00 | PLATE | 1 шт. | — | |
|
| 24 | 43700-14J00 | FOOTREST, PILLION LH (SILVER) | 1 шт. | — | |
|
| 25 | 43621-37H00 | BAR, LH | 1 шт. | — | |
|
| 26 | 09208-08017 | PIN | 1 шт. | — | |
|
| 26 | 09208-08017 | PIN | 1 шт. | — | |
|
| 27 | 09440-05003 | SPRING | 1 шт. | — | |
|
| 27 | 09440-05003 | SPRING | 1 шт. | — | |
|
| 28 | 06111-07004 | BALL | 1 шт. | — | |
|
| 28 | 06111-07004 | BALL | 1 шт. | — | |
|
| 29 | 43826-47H00 | PLATE | 1 шт. | — | |
|
| 30 | 08332-1106A | E-RING | 2 шт. | — | |
|
| 30 | 08332-1106A | E-RING | 1 шт. | — | |
|
| 30 | 08332-1106A | E-RING | 1 шт. | — | |
|
| 31 | 09106-08186 | BOLT (8X23) | 4 шт. | — | |
|
| 31 | 09106-08186 | BOLT (8X23) | 8 шт. | — | |
|
