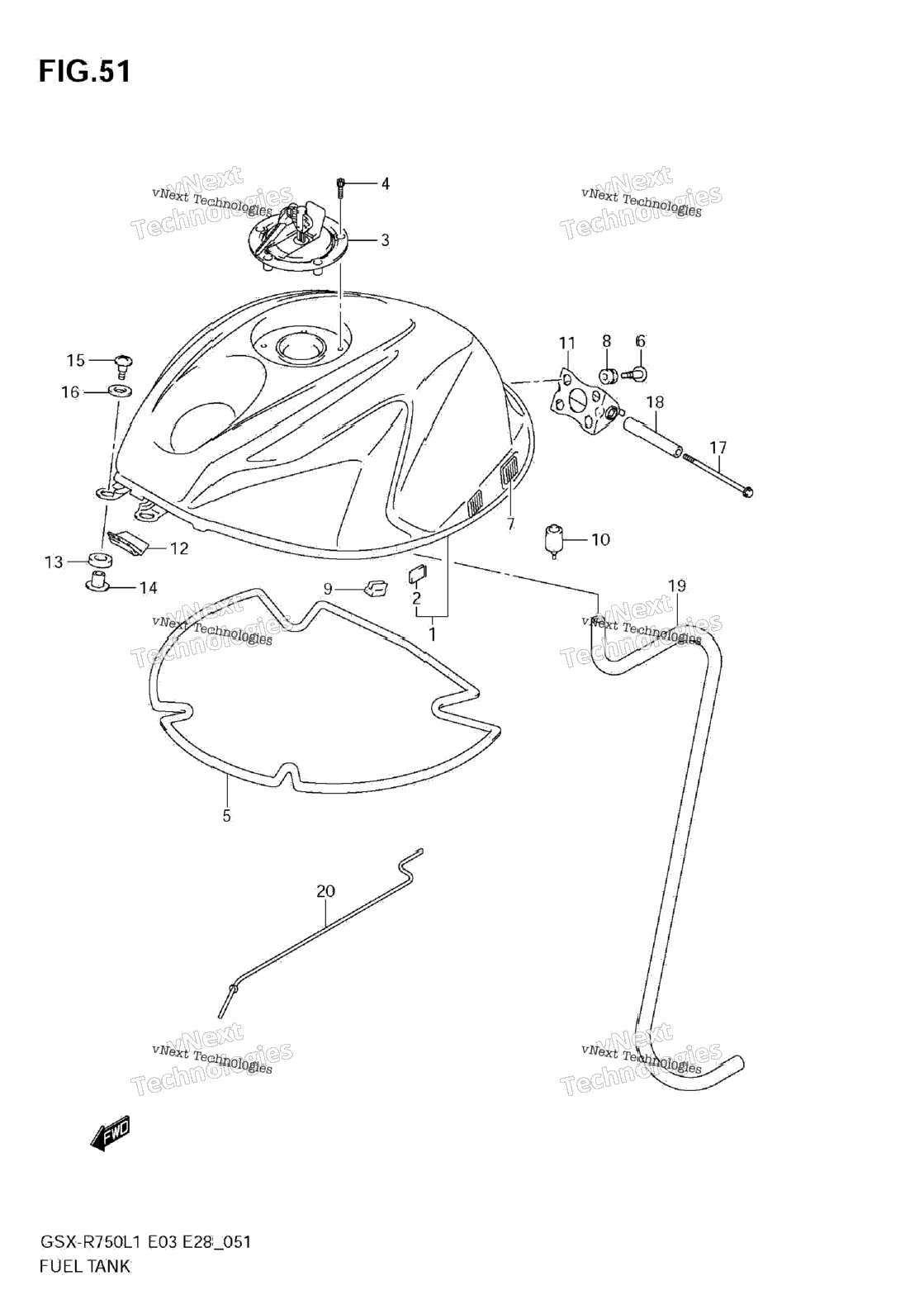

| 1 | 44100-14J20-YVB | TANK ASSY, FUEL (BLACK) FOR 6UX | 1 шт. | — | |
|
| 1 | 44100-14J20-YSF | TANK ASSY, FUEL (BLUE) FOR GLR | 1 шт. | — | |
|
| 2 | 44572-14J00 | FASTENER, COVER | 4 шт. | — | |
|
| 3 | 44200-16870 | CAP SET, FUEL TANK | 1 шт. | — | |
|
| 4 | 09106-05017 | BOLT (5X20) | 3 шт. | — | |
|
| 5 | 44191-14J00 | SHIELD,FUEL TANK HEAT | 1 шт. | — | |
|
| 6 | 44543-14J00 | SCREW, FUEL TANK REAR BRKT | 4 шт. | — | |
|
| 7 | 44572-13G00 | .FASTENER (33X25X2.6) | 4 шт. | — | |
|
| 8 | 09320-08071 | CUSHION | 4 шт. | — | |
|
| 9 | 44276-21H00 | CUSHION, TANK COVER | 2 шт. | — | |
|
| 10 | 44542-41G00 | CUSHION, REAR | 2 шт. | — | |
|
| 11 | 44530-41G00 | BRACKET, REAR | 1 шт. | — | |
|
| 12 | 44546-44H00 | RUBBER, TANK FRONT | 1 шт. | — | |
|
| 13 | 44511-16G00 | CUSHION | 2 шт. | — | |
|
| 14 | 44512-16G00 | SPACER,FUEL TANK,FR | 2 шт. | — | |
|
| 15 | 09139-06192 | SCREW | 2 шт. | — | |
|
| 16 | 09160-06054 | WASHER (6.5X22X1.6) | 2 шт. | — | |
|
| 17 | 09106-06119 | BOLT (6X110) | 1 шт. | — | |
|
| 18 | 44561-18G00 | SPACER, TANK REAR | 1 шт. | — | |
|
| 19 | 44423-14J00 | HOSE, DRAIN | 1 шт. | — | |
|
| 20 | 44574-35F00 | STAY, FUEL TANK | 1 шт. | — | |
|
