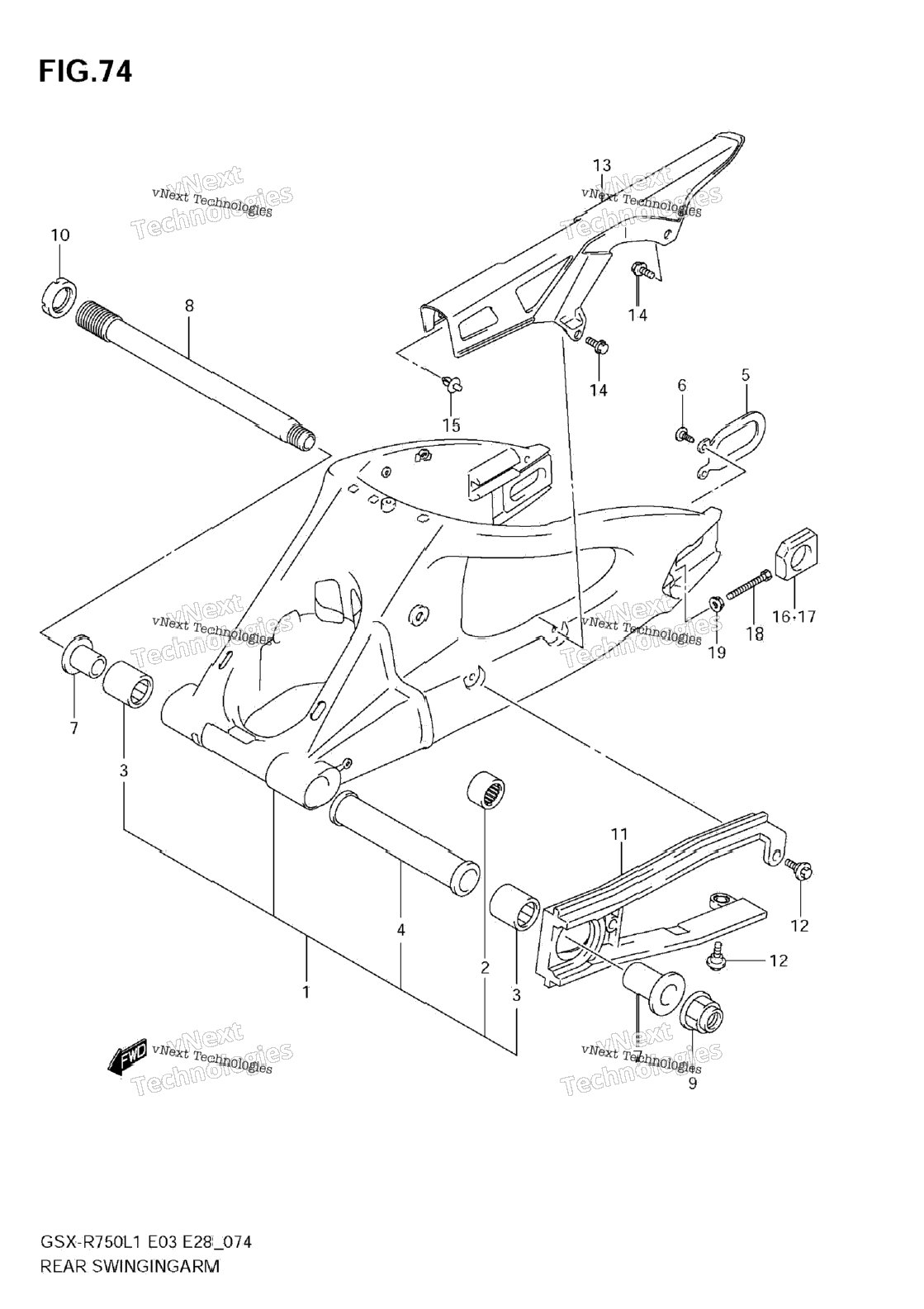

| 1 | 61000-14J00-YAP | SWINGING ARM ASSY, RR (BLACK) FOR 6UX | 1 шт. | — | |
|
| 2 | 61000-14J00-YUA | SWINGING ARM ASSY, RR (BLUE) FOR GLR | 1 шт. | — | |
|
| 3 | 09263-20070 | BEARING (20X27X30) | 1 шт. | — | |
|
| 4 | 09263-27013 | BEARING (27X35X35) | 2 шт. | — | |
|
| 5 | 61281-41G00 | SPACER, CENTER | 1 шт. | — | |
|
| 6 | 61124-14J00 | PLATE,RR SWGARM BRKT | 1 шт. | — | |
|
| 7 | 09125-06060 | SCREW (6X12) | 1 шт. | — | |
|
| 8 | 61251-41G00 | SPACER, BEARING | 2 шт. | — | |
|
| 9 | 61211-01H00 | SHAFT,RR SWINGINGARM PIVOT | 1 шт. | — | |
|
| 10 | 09159-20006 | NUT | 1 шт. | — | |
|
| 11 | 61214-42E00 | NUT, PIVOT | 1 шт. | — | |
|
| 12 | 61273-14J00 | BUFFER, CHAIN TOUCH DEFENSE | 1 шт. | — | |
|
| 13 | 09111-06072 | BOLT (6X17.8) | 3 шт. | — | |
|
| 14 | 61311-14J00 | CASE,CHAIN | 1 шт. | — | |
|
| 15 | 09111-06107 | BOLT (6X14) | 2 шт. | — | |
|
| 16 | 09409-08308-5ES | CLIP (7.6X25.7,BLACK) | 1 шт. | — | |
|
| 17 | 61445-44G00 | ADJUSTER, CHAIN RH | 1 шт. | — | |
|
| 18 | 61446-44G00 | ADJUSTER, CHAIN LH | 1 шт. | — | |
|
| 19 | 09100-08287 | BOLT (8X50) | 2 шт. | — | |
|
| 20 | 08316-1008A | NUT | 2 шт. | — | |
|
