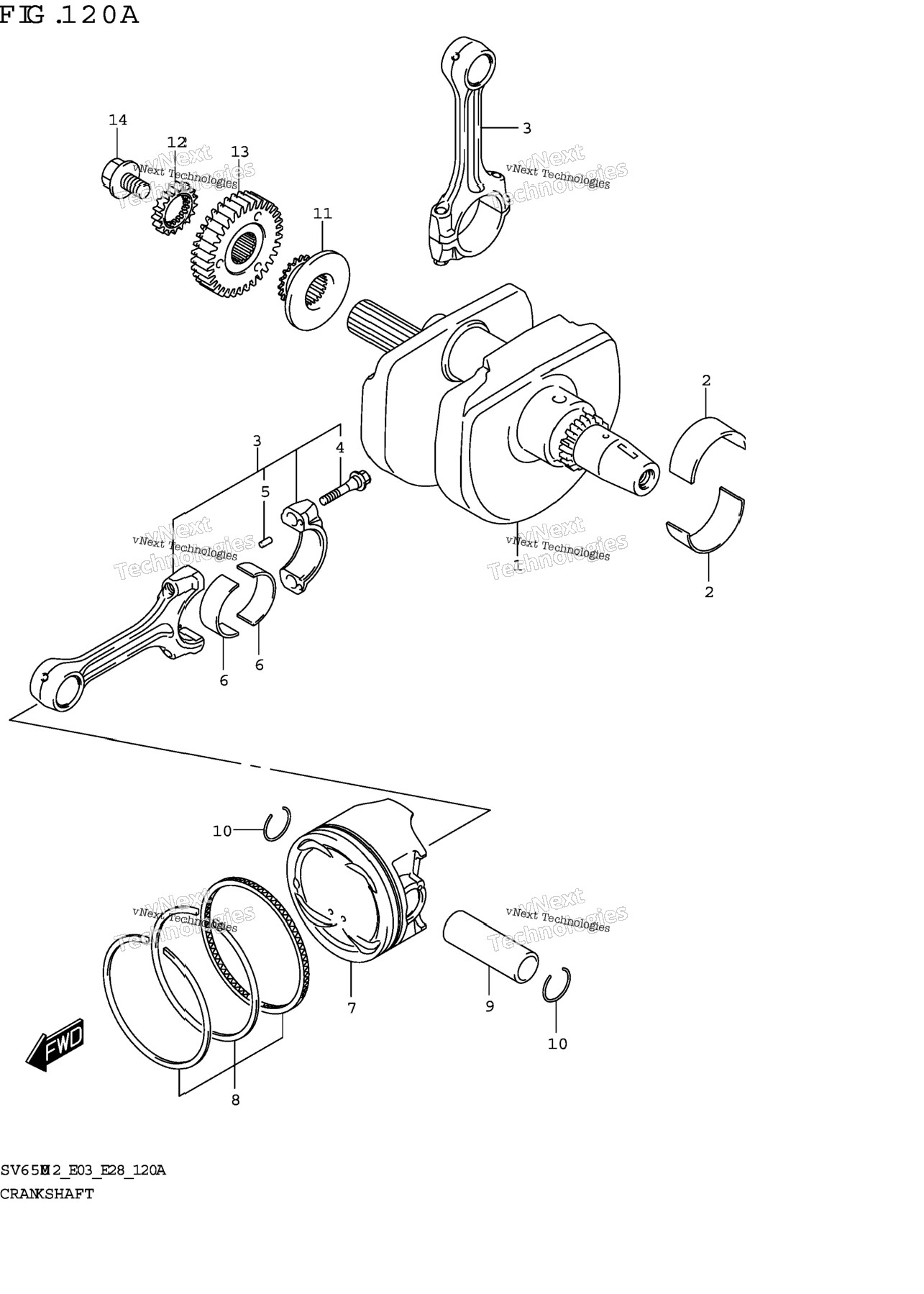

| 1 | 12220-44H20 | CRANKSHAFT | 1 шт. | — | |
|
| 2-1 | 12229-44H10-0A0 | BEARING, CRANKSHAFT GREEN | 4 шт. | — | |
|
| 2-2 | 12229-44H10-0B0 | BEARING, CRANKSHAFT BLACK | 4 шт. | — | |
|
| 2-3 | 12229-44H10-0C0 | BEARING, CRANKSHAFT BROWN | 0 шт. | — | |
|
| 3 | 12160-17G20 | CONNROD ASSY | 2 шт. | — | |
|
| 4 | 12163-24F10 | .BOLT, CONNECTING ROD | 4 шт. | — | |
|
| 5 | 04221-04089 | .PIN | 4 шт. | — | |
|
| 6-1 | 12164-46E10-0A0 | BEARING, CRANK PIN GREEN | 4 шт. | — | |
|
| 6-2 | 12164-46E10-0B0 | BEARING, CRANK PIN BLACK | 4 шт. | — | |
|
| 6-3 | 12164-46E10-0C0 | BEARING, CRANK PIN BROWN | 4 шт. | — | |
|
| 6-4 | 12164-46E10-0D0 | BEARING, CRANK PIN YELLOW | 4 шт. | — | |
|
| 7 | 12111-18K01-0F0 | PISTON | 2 шт. | — | |
|
| 8 | 12140-10L00 | RING SET,PISTON | 2 шт. | — | |
|
| 9 | 12151-05A10 | PIN, PISTON | 2 шт. | — | |
|
| 10 | 09381-20004 | CIRCLIP | 4 шт. | — | |
|
| 11 | 12731-19F00 | SPROCKET, CAM CHAIN DRIVE 8) | 0 шт. | — | |
|
| 12 | 17451-17G00 | GEAR, WATER PUMP DRIVE (NT:17 | 1 шт. | — | |
|
| 13 | 21100-44H00 | GEAR ASSY, PRIMARY DRIVE ) | 0 шт. | — | |
|
| 14 | 09103-10338 | BOLT (10X19) | 1 шт. | — | |
|
