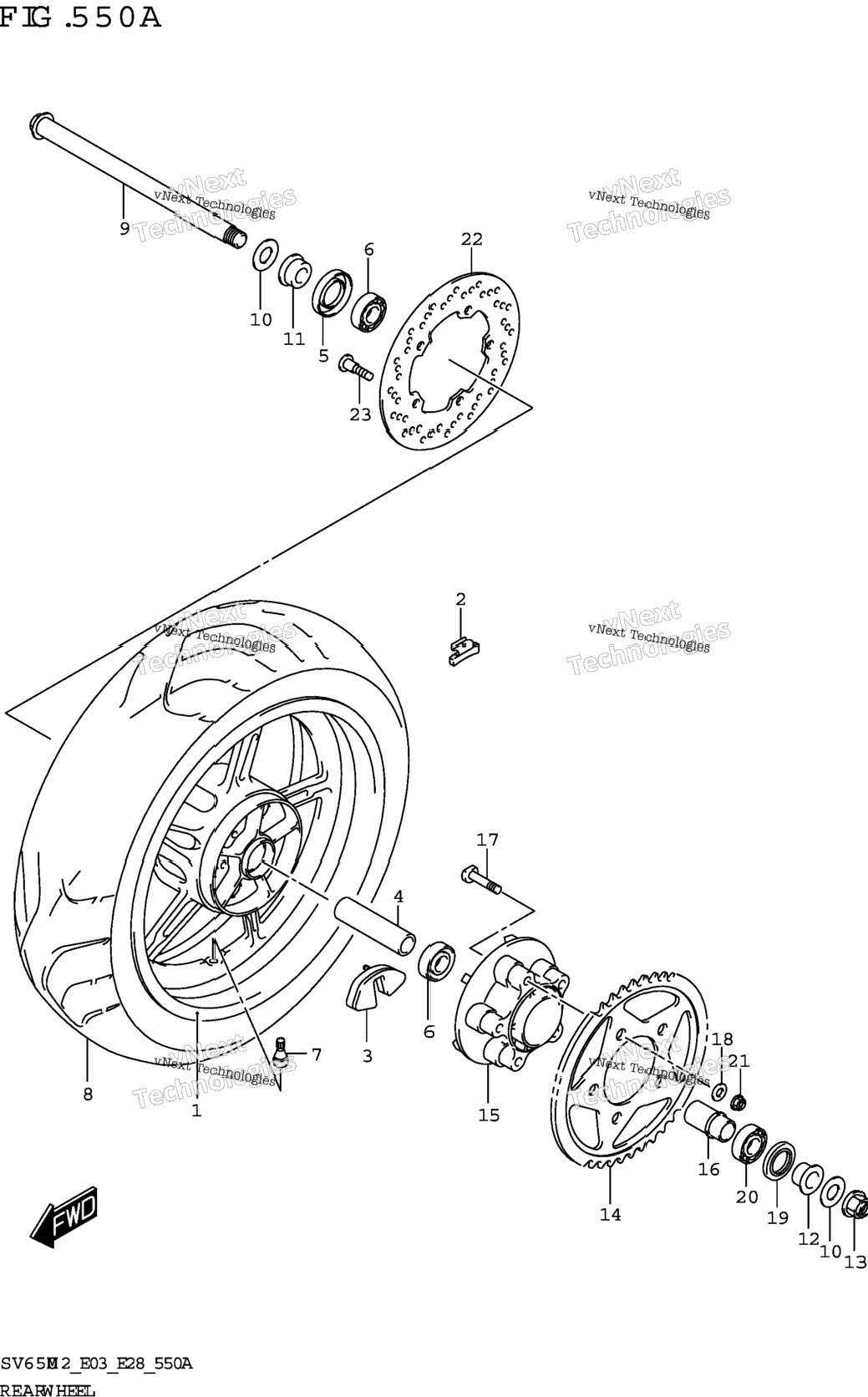

| 1 | 64111-44H00-QGY | WHEEL, REAR (17M/CXMT5.0) BODY COLOR:B1G | 1 шт. | — | |
|
| 2 | 64111-44H00-YLY | WHEEL,REAR (17M/CXMT5.0,BLUE) BODY COLOR:YKV | 1 шт. | — | |
|
| 3 | 64111-44H00-019 | WHEEL, REAR (17M/CXMT5.0) BODY COLOR:ACX | 0 шт. | — | |
|
| 4 | 55411-22H00 | BALANCER,WHEEL (10G) | 1 шт. | — | |
|
| 5 | 55412-22H00 | BALANCER,WHEEL (20G) | 1 шт. | — | |
|
| 6 | 55413-22H00 | BALANCER,WHEEL (30G) | 1 шт. | — | |
|
| 7 | 64651-27A01 | ABSORBER,SHOCK REAR HUB | 5 шт. | — | |
|
| 8 | 09180-20062 | SPACER (20.5X28X88) | 1 шт. | — | |
|
| 9 | 09285-28004 | OIL SEAL (27X47X7) | 1 шт. | — | |
|
| 10 | 08123-6204B | BEARING | 2 шт. | — | |
|
| 11 | 43130-24A00 | VALVE ASSY,WHEEL RIM (TR412) | 1 шт. | — | |
|
| 12 | 65110-18K01 | TIRE,REAR (160/60ZR17 M/C 69W | 1 шт. | — | |
|
| 13 | 64711-17E40 | AXLE,REAR | 1 шт. | — | |
|
| 14 | 64723-44H00 | WASHER,REAR AXLE | 2 шт. | — | |
|
| 15 | 64741-22D00 | SPACER,REAR AXLE RH | 1 шт. | — | |
|
| 16 | 64751-44H00 | SPACER,REAR AXLE LH | 1 шт. | — | |
|
| 17 | 09159-20013 | NUT | 1 шт. | — | |
|
| 18 | 64511-44H20 | SPROCKET,RR (46T-520) | 1 шт. | — | |
|
| 19 | 64611-19F10 | DRUM,REAR SPROCKET MTG | 0 шт. | — | |
|
| 20 | 64733-27A00 | RETAINER,REAR HUB BEARING | 1 шт. | — | |
|
| 21 | 09119-10043 | BOLT (10X47) | 5 шт. | — | |
|
| 22 | 09160-10039 | WASHER (10.5X22X2.3) | 5 шт. | — | |
|
| 23 | 09285-35001 | OIL SEAL (35X62X8) | 1 шт. | — | |
|
| 24 | 08113-6305B | BEARING | 1 шт. | — | |
|
| 25 | 08319-3110A | NUT | 5 шт. | — | |
|
| 26 | 69211-38G00 | DISC,REAR BRAKE | 1 шт. | — | |
|
| 27 | 09106-08160 | BOLT (8X21) | 5 шт. | — | |
|
