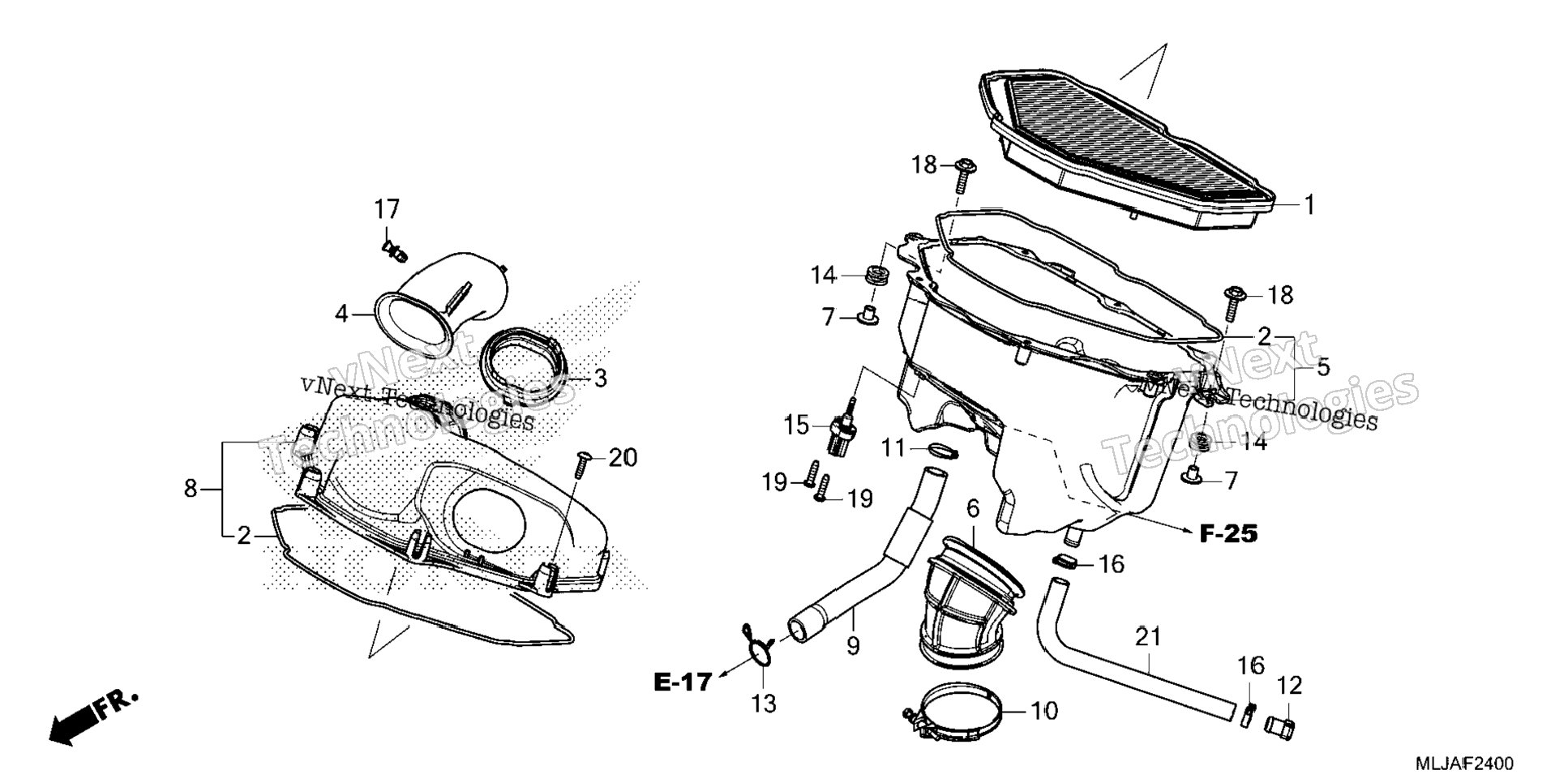

| 1 | 17210-MKC-A00 | ELEMENT, AIR CLEANER | 1 шт. | — | |
|
| 2 | 17221-MKC-A00 | SEAL, AIR CLEANER | 2 шт. | — | |
|
| 3 | 17223-MKC-A00 | DUCT A, L. | 1 шт. | — | |
|
| 4 | 17225-MKC-A00 | DUCT B, L. | 1 шт. | — | |
|
| 5 | 17230-MKC-A00 | HOUSING, AIR CLEANER | 1 шт. | — | |
|
| 6 | 17232-MKC-A00 | TUBE, AIR CLEANER CONNECTING | 1 шт. | — | |
|
| 7 | 17239-MGS-D30 | COLLAR, AIR CLEANER MOUNTING | 2 шт. | — | |
|
| 8 | 17240-MKC-A00 | COVER SUB-ASSY., AIR CLEANER | 1 шт. | — | |
|
| 9 | 17245-MKC-A00 | TUBE, ENGINE BREATHER | 1 шт. | — | |
|
| 10 | 17255-MKC-A00 | BAND, AIR CLEANER CONNECTING TUBE (66) | 1 шт. | — | |
|
| 11 | 17366-MJ0-000 | CLIP B, TUBE CLIP, SUB-TANK HOSE | 1 шт. | — | |
|
| 12 | 17370-382-870 | PLUG, BREATHER TUBE | 1 шт. | — | |
|
| 13 | 18532-634-670 | CLIP, AIR HOSE (21.5) | 1 шт. | — | |
|
| 14 | 33712-KT1-670 | RUBBER, TAILLIGHT | 2 шт. | — | |
|
| 15 | 37880-KWW-C01 | SENSOR ASSY., AIR TEMPERATURE | 1 шт. | — | |
|
| 16 | 90651-HM3-A71 | CLAMP, TUBE (14.0) | 2 шт. | — | |
|
| 17 | 91549-MCA-000 | CLIP, PANEL FIXING | 1 шт. | — | |
|
| 18 | 93404-06025-07 | BOLT-WASHER (6X25) | 2 шт. | — | |
|
| 19 | 93901-25420 | SCREW, TAPPING (5X20) | 2 шт. | — | |
|
| 20 | 93903-25480 | SCREW, TAPPING (5X20) | 7 шт. | — | |
|
| 21 | 95003-37025-31 | TUBE, VINYL (11X15X250) (95003-37001-60M) (NA USE ALT:95003-37001-60M) | 0 шт. | — | |
|
