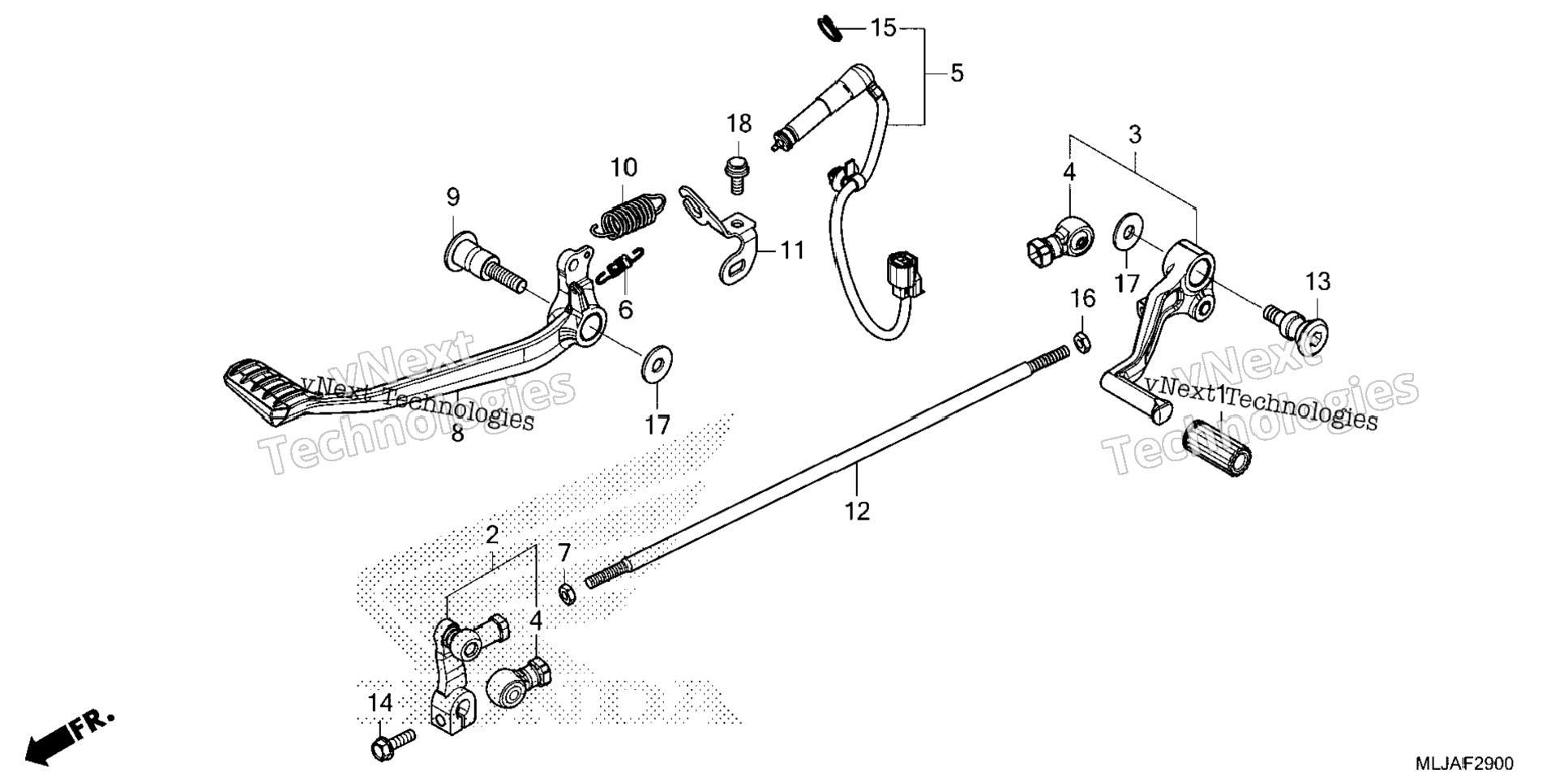

| 1 | 24705-MR7-000 | RUBBER, GEARSHIFT PEDAL | 1 шт. | — | |
|
| 2 | 24710-MKC-A20 | ARM, GEARSHIFT | 1 шт. | — | |
|
| 3 | 24720-MKC-A20 | PEDAL, GEARSHIFT | 1 шт. | — | |
|
| 4 | 24724-MBW-D21 | COVER, DUST | 2 шт. | — | |
|
| 5 | 35350-MKC-A01 | SWITCH ASSY., RR. STOP | 1 шт. | — | |
|
| 6 | 35357-HP0-A00 | SPRING, STOP SWITCH | 1 шт. | — | |
|
| 7 | 45423-KA4-700 | NUT, HEX. (6MM) (LEFT HAND THREAD) | 1 шт. | — | |
|
| 8 | 46500-MKC-A00 | PEDAL, RR. BRAKE | 1 шт. | — | |
|
| 9 | 46512-MKC-A00 | SHAFT, BRAKE PIVOT | 1 шт. | — | |
|
| 10 | 46514-MKC-A00 | SPRING, BRAKE PEDAL | 1 шт. | — | |
|
| 11 | 50358-MKC-A00 | STAY, RR. STOP SWITCH | 1 шт. | — | |
|
| 12 | 90101-MKC-A20 | BOLT, TIE ROD | 1 шт. | — | |
|
| 13 | 90113-MCF-000 | BOLT, CHANGE PIVOT | 1 шт. | — | |
|
| 14 | 90118-KY1-000 | BOLT, FLANGE (6X20) | 1 шт. | — | |
|
| 15 | 90601-KAF-003 | CLIP, SWITCH COVER | 1 шт. | — | |
|
| 16 | 94002-06040-0S | NUT, HEX. (6MM) | 1 шт. | — | |
|
| 17 | 94103-08700 | WASHER, PLAIN (8MM) | 2 шт. | — | |
|
| 18 | 95701-06014-07 | BOLT, FLANGE (6X14) | 1 шт. | — | |
|
