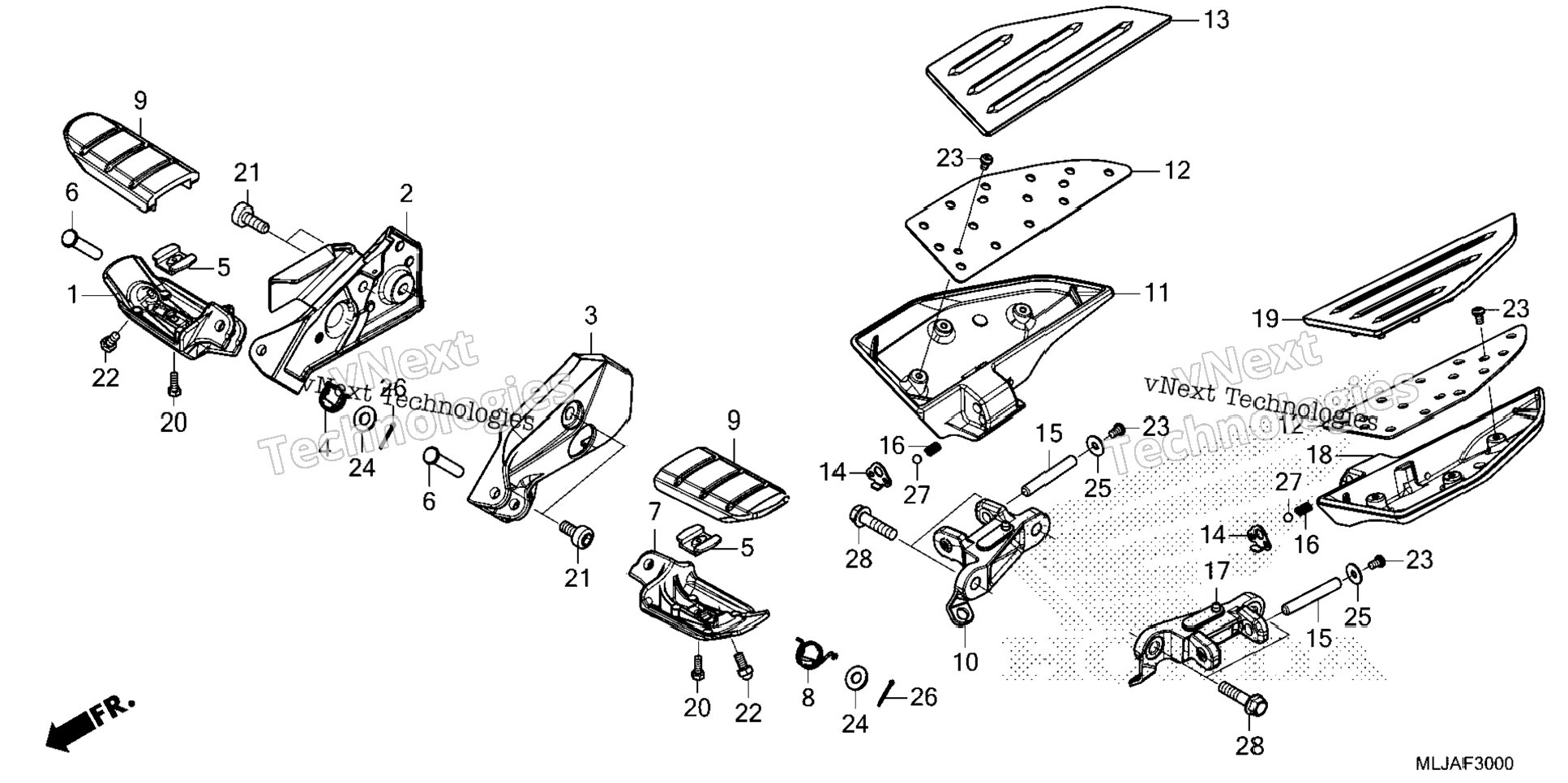

| 1 | 50612-MKC-A00 | ARM, R. STEP | 1 шт. | — | |
|
| 2 | 50613-MKC-A10ZB | BRACKET, R. MAIN STEP *NHA86M* (MAT BALLISTIC BLACK) | 1 шт. | — | |
|
| 3 | 50614-MKC-A10ZB | BRACKET, L. MAIN STEP *NHA86M* (MAT BALLISTIC BLACK) | 1 шт. | — | |
|
| 4 | 50617-MM5-000 | SPRING, R. STEP RETURN | 1 шт. | — | |
|
| 5 | 50619-MKC-A00 | PLATE, STEP SETTING | 2 шт. | — | |
|
| 6 | 50639-MFL-D20 | PIN, STEP BAR | 2 шт. | — | |
|
| 7 | 50642-MKC-A00 | ARM, L. STEP | 1 шт. | — | |
|
| 8 | 50644-MM5-000 | SPRING, L. STEP RETURN | 1 шт. | — | |
|
| 9 | 50661-MKC-A00 | RUBBER, STEP | 2 шт. | — | |
|
| 10 | 50715-MKC-A00ZC | HOLDER, R. PILLION STEP *NHA86M* (MAT BALLISTIC BLACK) | 1 шт. | — | |
|
| 11 | 50716-MKC-A00ZC | ARM, R. PILLION STEP *NHA86M* (MAT BALLISTIC BLACK) | 1 шт. | — | |
|
| 12 | 50717-MKC-A00 | PLATE, PILLION STEP | 2 шт. | — | |
|
| 13 | 50718-MKC-A00 | RUBBER, R. PILLION STEP | 1 шт. | — | |
|
| 14 | 50720-MKC-A00 | PLATE, PILLION STEP CLICK | 2 шт. | — | |
|
| 15 | 50721-MKC-A00 | PIN, PILLION STEP | 2 шт. | — | |
|
| 16 | 50746-MT8-770 | SPRING, PILLION STEP ADJUST CLICK | 2 шт. | — | |
|
| 17 | 50815-MKC-A00ZC | HOLDER, L. PILLION STEP *NHA86M* (MAT BALLISTIC BLACK) | 1 шт. | — | |
|
| 18 | 50816-MKC-A00ZC | ARM, L. PILLION STEP *NHA86M* (MAT BALLISTIC BLACK) | 1 шт. | — | |
|
| 19 | 50818-MKC-A00 | RUBBER, L. PILLION STEP | 1 шт. | — | |
|
| 20 | 90115-MT3-000 | BOLT, MAIN STEP RUBBER SETTING | 2 шт. | — | |
|
| 21 | 90158-MKC-A10 | BOLT, SOCKET (8X19) | 4 шт. | — | |
|
| 22 | 92501-06012-0A | BOLT, CAP (6X12) | 2 шт. | — | |
|
| 23 | 93500-05008-0A | BOLT, FLANGE (8X62) | 8 шт. | — | |
|
| 24 | 94101-08000 | WASHER, PLAIN (8MM) | 2 шт. | — | |
|
| 25 | 94103-05800 | WASHER, PLAIN (5MM) | 2 шт. | — | |
|
| 26 | 94201-20150 | PIN, COTTER (2.0X15) | 2 шт. | — | |
|
| 27 | 96211-08000 | BALL, STEEL (#8) (1/4) | 2 шт. | — | |
|
| 28 | 96400-08032-00 | BOLT, FLANGE (8X32) | 4 шт. | — | |
|
