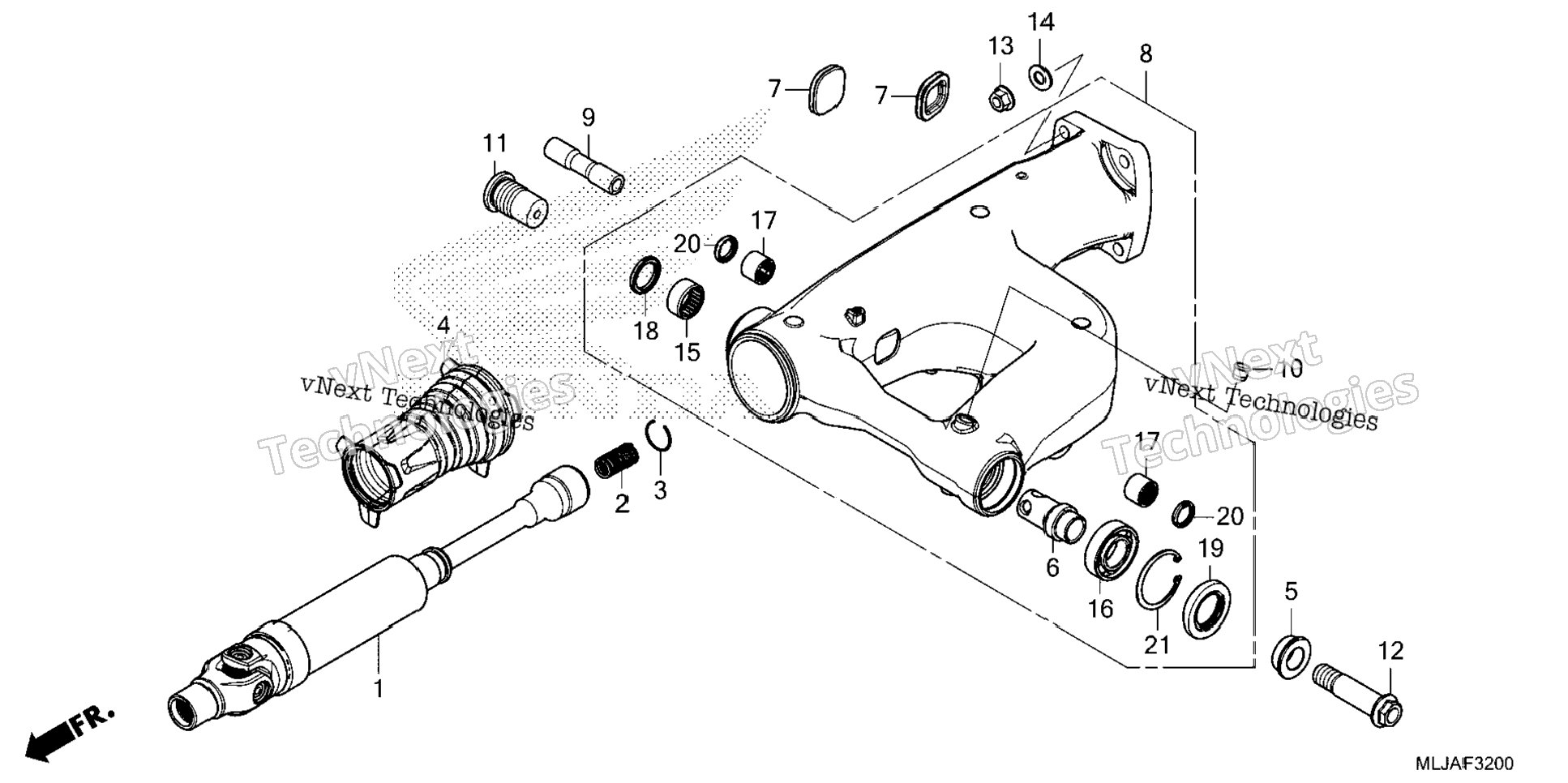

| 1 | 40200-MKC-A00 | SHAFT ASSY., PROPELLER | 1 шт. | — | |
|
| 2 | 40216-MKC-A00 | SPRING, PROP SHAFT | 1 шт. | — | |
|
| 3 | 40221-MKC-A00 | RING, STOPPER | 1 шт. | — | |
|
| 4 | 52104-MKC-A00 | BOOT, JOINT | 1 шт. | — | |
|
| 5 | 52141-MKC-A00 | COLLAR, SWINGARM PIVOT | 1 шт. | — | |
|
| 6 | 52142-MKC-A00 | NUT, SWINGARM PIVOT | 1 шт. | — | |
|
| 7 | 52175-MGE-000 | GROMMET, SWINGARM | 2 шт. | — | |
|
| 8 | 52200-MKC-A00ZC | SWINGARM SUB-ASSY. (TYPE3) | 1 шт. | — | |
|
| 9 | 52462-MKC-A00 | COLLAR B, CUSHION ARM | 1 шт. | — | |
|
| 10 | 81212-GF4-000 | CAP, RR. CARRIER | 1 шт. | — | |
|
| 11 | 90141-MKC-A00 | BOLT, R. SWINGARM PIVOT | 1 шт. | — | |
|
| 12 | 90142-MKC-A00 | BOLT, L. SWINGARM PIVOT | 1 шт. | — | |
|
| 13 | 90309-375-003 | NUT, FLANGE (12MM) | 4 шт. | — | |
|
| 14 | 90440-GT4-970 | WASHER, PLAIN (12MM) | 4 шт. | — | |
|
| 15 | 91021-MGZ-J01 | BEARING, NEEDLE (28X35X16) (NTN) | 1 шт. | — | |
|
| 16 | 91051-MFL-003 | BEARING, ANGULAR BALL (28X56X15) | 1 шт. | — | |
|
| 17 | 91072-MY1-005 | BEARING, NEEDLE (20X26X20) | 2 шт. | — | |
|
| 18 | 91202-MR7-003 | DUST SEAL (28X37X4) | 1 шт. | — | |
|
| 19 | 91251-MFL-003 | DUST SEAL (35X56X7.5) | 1 шт. | — | |
|
| 20 | 91254-KS6-003 | DUST SEAL (20X26X4.5) (ARAI) | 2 шт. | — | |
|
| 21 | 94520-56000 | CIRCLIP (INNER) (56MM) | 1 шт. | — | |
|
