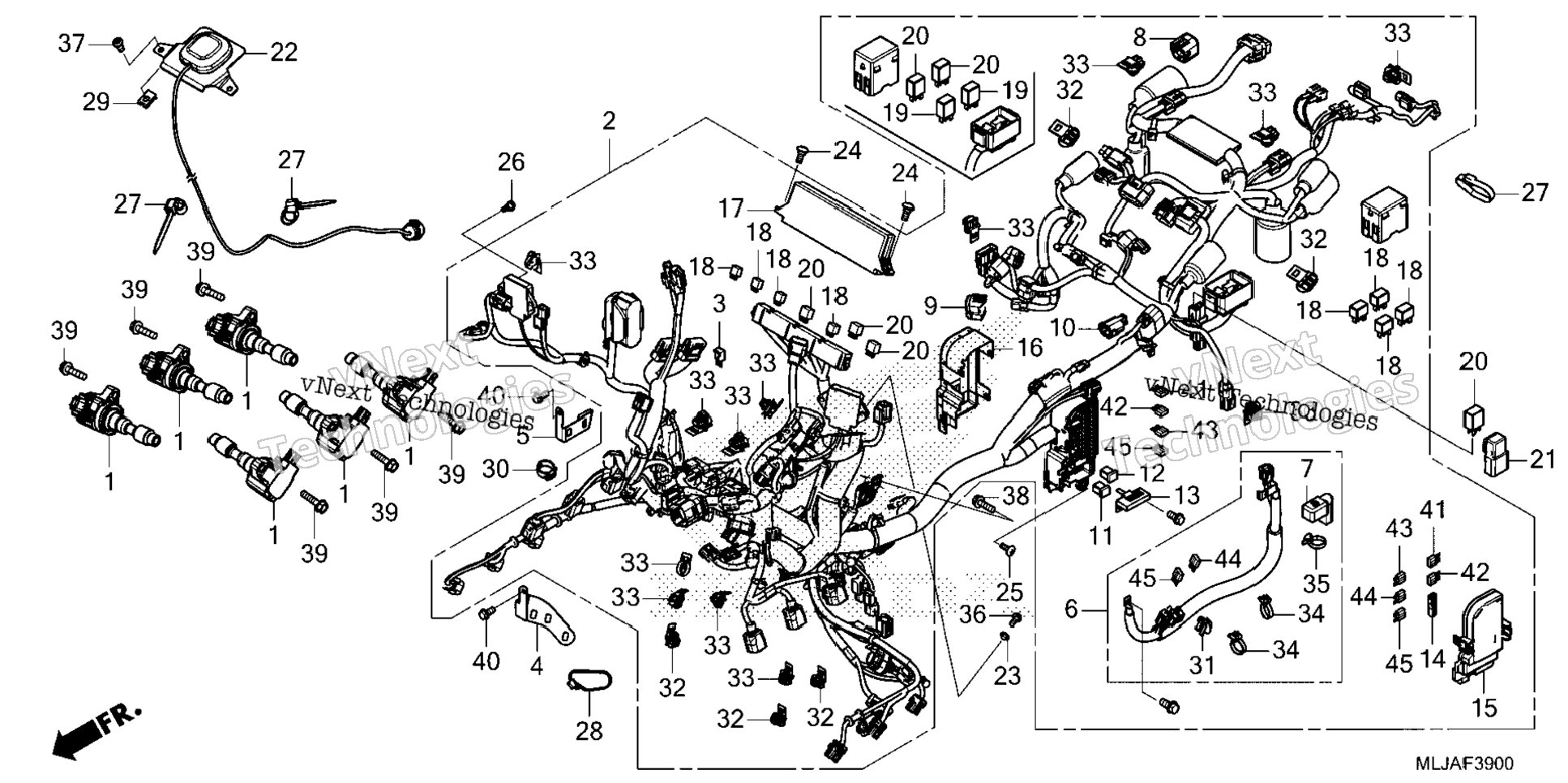

| 1 | 30510-MKC-A01 | COIL ASSY., PLUG TOP | 6 шт. | — | |
|
| 2 | 32100-MLJ-A10 | WIRE HARNESS | 1 шт. | — | |
|
| 3 | 32146-S84-003 | CONNECTOR, DIODE (2P) (3A) | 1 шт. | — | |
|
| 4 | 32153-MKC-A00 | STAY, CONNECTOR B | 1 шт. | — | |
|
| 5 | 32158-MKC-A00 | STAY, CONNECTOR C | 1 шт. | — | |
|
| 6 | 32401-MKC-A20 | CABLE, STARTER BATTERY | 1 шт. | — | |
|
| 7 | 32412-MCA-000 | COVER, BATTERY TERMINAL | 1 шт. | — | |
|
| 8 | 32605-GEV-761 | CAP, DUMMY (WPC 4P 090 M) (NATURAL) | 1 шт. | — | |
|
| 9 | 32606-K44-V01 | CAP, DUMMY (WPC 4P 090 M) (RED) | 1 шт. | — | |
|
| 10 | 38211-MCA-A61 | FUSE, BLOCK (60A) (LOW-PROFILE) | 1 шт. | — | |
|
| 11 | 38211-SNA-A21 | FUSE, BLOCK (40A) | 1 шт. | — | |
|
| 12 | 38231-SFE-J01 | FUSE A, MULTI BLOCK (120A/40A) | 1 шт. | — | |
|
| 13 | 38235-S04-003 | PULLER, MINI FUSE (SUMITOMO) | 1 шт. | — | |
|
| 14 | 38251-MKC-A20 | COVER SET (UPPER) (WL) | 1 шт. | — | |
|
| 15 | 38256-MCA-A61 | COVER (LOWER) | 1 шт. | — | |
|
| 16 | 38282-MKC-A01 | COVER (UPPER) | 1 шт. | — | |
|
| 17 | 38501-MKP-DN1 | RELAY (MICRO ISO 4P) | 8 шт. | — | |
|
| 18 | 38502-MCS-G01 | RELAY, POWER (MICRO ISO 5P) | 2 шт. | — | |
|
| 19 | 38503-MCA-A61 | RELAY, POWER (MICRO ISO 4P) | 6 шт. | — | |
|
| 20 | 38506-MCS-G00 | SUSPENSION, POWER RELAY | 1 шт. | — | |
|
| 21 | 39125-MKC-L01 | ANTENNA ASSY., SXM | 1 шт. | — | |
|
| 22 | 90007-MA3-770 | COLLAR (6X5.5) | 2 шт. | — | |
|
| 23 | 93903-25380 | SCREW, TAPPING (5X16) | 2 шт. | — | |
|
| 24 | 90109-KBV-000 | SCREW, TRUSS (5X14) | 1 шт. | — | |
|
| 25 | 90300-GB6-920 | SCREW, SPLASH GUARD | 2 шт. | — | |
|
| 26 | 90650-KV6-003 | BAND, WIRE (Honda Code 2687788) | 3 шт. | — | |
|
| 27 | 90651-KV6-003 | BAND, WIRE (165MM) (BLACK) | 1 шт. | — | |
|
| 28 | 90677-KAN-961 | NUT, CLIP (5MM) | 2 шт. | — | |
|
| 29 | 90683-KJ2-003 | CLIP, WIRE HARNESS | 1 шт. | — | |
|
| 30 | 91533-S04-003 | CLIP, CONNECTOR (NATURAL) | 1 шт. | — | |
|
| 31 | 91535-STK-003 | CLIP, CONNECTOR (DARK BLUE) | 5 шт. | — | |
|
| 32 | 91535-TA0-003 | CLIP, CONNECTOR (DARK BROWN) | 14 шт. | — | |
|
| 33 | 91540-S7S-003 | CLIP, HARNESS BAND (157.7MM) (BLACK) | 2 шт. | — | |
|
| 34 | 91541-S0A-003 | CLIP, HARNESS BAND (145MM) (BLACK) | 1 шт. | — | |
|
| 35 | 93500-04014-0A | SCREW, PAN (4X14) | 2 шт. | — | |
|
| 36 | 93500-05010-0A | SCREW, PAN (5X10) | 2 шт. | — | |
|
| 37 | 95701-06020-08 | BOLT, FLANGE (6X20) | 1 шт. | — | |
|
| 38 | 95701-06025-08 | BOLT, FLANGE (6X25) BOLT, FLANGE (6X16) | 6 шт. | — | |
|
| 39 | 96001-06012-07 | BOLT, FLANGE (6X12) (L. SIDE ONLY) | 2 шт. | — | |
|
| 40 | 98200-40500 | FUSE, MINI (5A) (Honda Code 5026521) | 5 шт. | — | |
|
| 41 | 98200-41000 | FUSE, MINI (10A) | 9 шт. | — | |
|
| 42 | 98200-41500 | FUSE, MINI (15A) (Honda Code 4853438) | 10 шт. | — | |
|
| 43 | 98200-42000 | FUSE, MINI (20A) | 2 шт. | — | |
|
| 44 | 98200-43000 | FUSE, MINI (30A) (Honda Code 5359666) | 6 шт. | — | |
|
