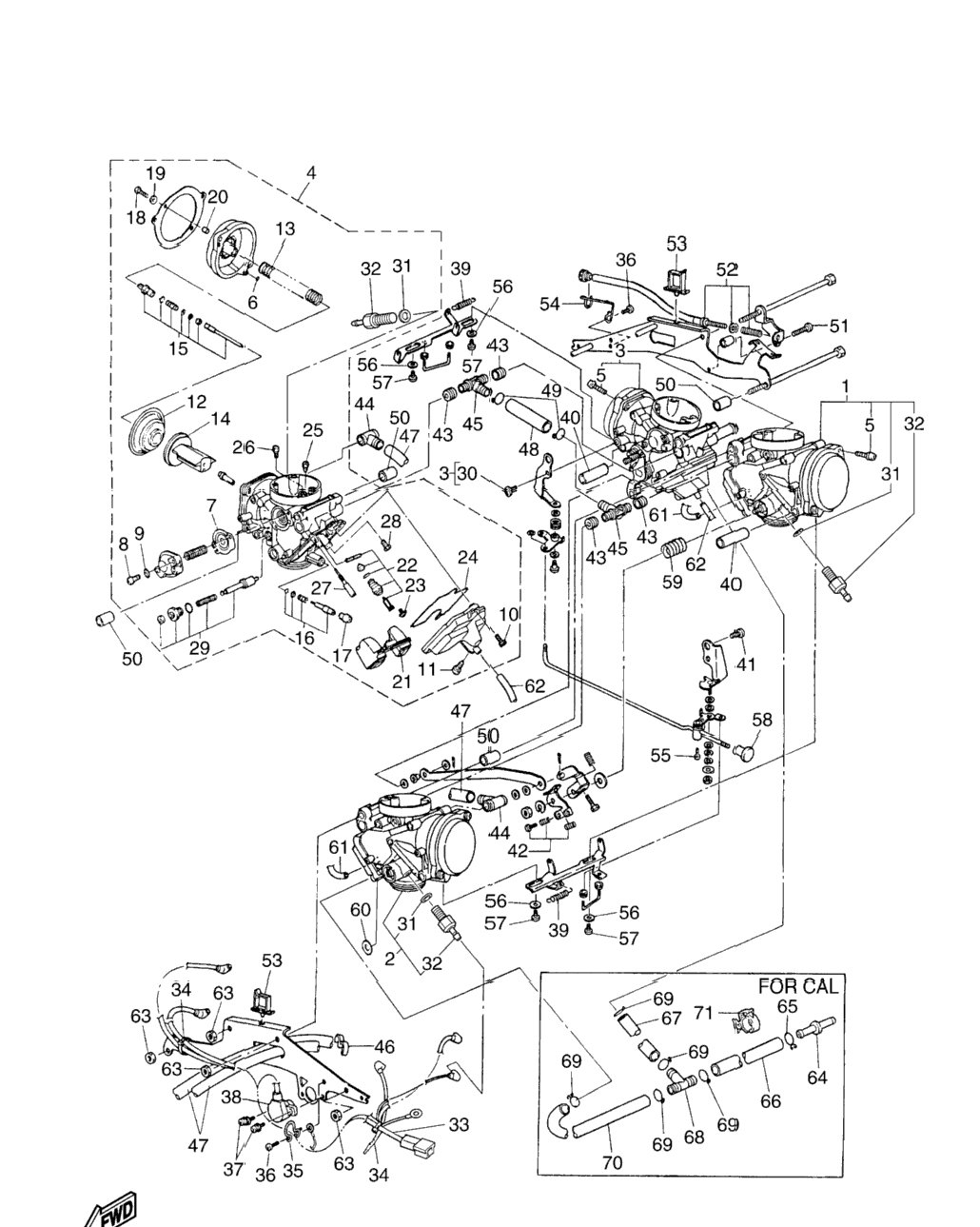

| 1 | 4XY-14901-71-00 | Carburetor Assy 1 FOR CALIFORNIA | 0 шт. | — | |
|
| 1 | 4XY-14901-91-00 | Carburetor Assy 1 U49 | 1 шт. | — | |
|
| 2 | 4XY-14902-71-00 | Carburetor Assy 2 FOR CALIFORNIA | 0 шт. | — | |
|
| 2 | 4XY-14902-91-00 | Carburetor Assy 2 U49 | 1 шт. | — | |
|
| 3 | 4XY-14903-71-00 | Carburetor Assy 3 FOR CALIFORNIA | 0 шт. | — | |
|
| 3 | 4XY-14903-91-00 | Carburetor Assy 3 U49 | 1 шт. | — | |
|
| 4 | 4XY-14904-71-00 | Carburetor Assy 4 FOR CALIFORNIA | 0 шт. | — | |
|
| 4 | 4XY-14904-91-00 | Carburetor Assy 4 U49 | 1 шт. | — | |
|
| 5 | 4KM-14216-00-00 | . . Screw #1, 2, 3 | 2 шт. | — | |
|
| 6 | 354-14147-00-00 | . .O-Ring | 1 шт. | — | |
|
| 7 | 5AP-14940-00-00 | . .Diaphragm Assy | 1 шт. | — | |
|
| 8 | 98507-04014-00 | . Screw, Pan Head | 2 шт. | — | |
|
| 9 | 92907-04100-00 | . .Washer, Spring | 2 шт. | — | |
|
| 10 | 91317-05012-00 | . Bolt | 3 шт. | — | |
|
| 11 | 4KP-14191-00-00 | . .Plug, Drain | 1 шт. | — | |
|
| 12 | 5DM-14940-00-00 | . .Diaphragm Assy | 1 шт. | — | |
|
| 13 | 4XY-14933-00-00 | . .Spring, Diaphragm | 1 шт. | — | |
|
| 14 | 5DM-14112-00-00 | . .Valve, Throttle 1 | 1 шт. | — | |
|
| 15 | 4XY-1490J-00-00 | . .Needle Set | 1 шт. | — | |
|
| 16 | 4XY-14105-00-00 | . .Pilot Screw Set | 1 шт. | — | |
|
| 17 | 4XY-14118-00-00 | . .Cap | 1 шт. | — | |
|
| 18 | 98507-05018-00 | . .Screw, Pan Head #4 | 2 шт. | — | |
|
| 19 | 92907-05100-00 | . Washer, Spring #4 | 2 шт. | — | |
|
| 20 | 4KM-14194-00-00 | . .Ring #4 | 2 шт. | — | |
|
| 21 | 4SV-14985-00-00 | . .Float | 1 шт. | — | |
|
| 22 | 4KM-14107-15-00 | . .Needle Valve Set | 1 шт. | — | |
|
| 23 | 1FN-14565-00-00 | . Screw | 1 шт. | — | |
|
| 24 | 4XV-14562-00-00 | . .O-Ring | 1 шт. | — | |
|
| 25 | 1HX-14231-17-00 | . . Jet, Main (#85) | 1 шт. | — | |
|
| 26 | 1HX-14231-28-00 | . .Jet, Main (#140) | 1 шт. | — | |
|
| 27 | 4KM-14142-15-00 | . . Jet, Pilot (#15) | 1 шт. | — | |
|
| 28 | 3G2-1423A-74-00 | . .Jet, Main (#117.5) UR #3 | 1 шт. | — | |
|
| 28 | 3G2-14231-24-00 | . .Jet, Main (#120) UR #4 | 1 шт. | — | |
|
| 28 | 3G2-1423A-75-00 | . . Jet, Main (#122.5) UR #1, 2 | 1 шт. | — | |
|
| 29 | 4SV-1410A-00-00 | . .Starter Set | 1 шт. | — | |
|
| 31 | 90201-08016-00 | . Washer, Plate | 1 шт. | — | |
|
| 32 | 5FU-83790-00-00 | . Heater Assy (15W) | 1 шт. | — | |
|
| 33 | 1D6-81517-00-00 | Wire, Sub Lead | 1 шт. | — | |
|
| 34 | 35H-14139-00-00 | Clip, Pipe | 4 шт. | — | |
|
| 35 | 4XY-14159-00-00 | Clip | 1 шт. | — | |
|
| 36 | 98507-05006-00 | Screw, Pan Head | 2 шт. | — | |
|
| 37 | 4WM-14565-00-00 | Screw | 2 шт. | — | |
|
| 38 | 4HM-85885-20-00 | Throttle Position Sensor Assy | 1 шт. | — | |
|
| 39 | 5DM-14935-00-00 | Spring | 2 шт. | — | |
|
| 40 | 4XY-14148-00-00 | Pipe | 2 шт. | — | |
|
| 41 | 98607-05110-00 | Screw, Oval Head | 0 шт. | — | |
|
| 41 | 98607-05110-00 | . Screw, Oval Head #3 | 0 шт. | — | |
|
| 42 | 3EN-1490K-00-00 | Stop Screw Set | 2 шт. | — | |
|
| 43 | 3EN-14997-00-00 | Seal | 4 шт. | — | |
|
| 44 | 5DM-14396-10-00 | Pipe | 2 шт. | — | |
|
| 45 | 4XY-14251-00-00 | Nipple | 2 шт. | — | |
|
| 46 | 90464-09M31-00 | Clamp | 1 шт. | — | |
|
| 47 | 4XY-14349-00-00 | Pipe | 2 шт. | — | |
|
| 48 | 4XY-14349-11-00 | Pipe | 0 шт. | — | |
|
| 49 | 4NK-14137-00-00 | Clip | 2 шт. | — | |
|
| 50 | 4XY-14148-10-00 | Pipe | 4 шт. | — | |
|
| 51 | 98507-05020-00 | Screw, Pan Head | 1 шт. | — | |
|
| 52 | 4XY-14103-00-00 | Throttle Screw Set | 1 шт. | — | |
|
| 53 | 4XY-14137-00-00 | Clip | 2 шт. | — | |
|
| 54 | 4XY-14139-00-00 | Clip, Pipe | 1 шт. | — | |
|
| 55 | 4XY-14565-00-00 | Screw | 1 шт. | — | |
|
| 56 | 4NK-14327-00-00 | Packing | 4 шт. | — | |
|
| 57 | 4XY-24453-10-00 | Screw | 4 шт. | — | |
|
| 58 | 4XY-14261-00-00 | Holder | 1 шт. | — | |
|
| 59 | 4XY-14286-00-00 | Spring | 1 шт. | — | |
|
| 60 | 4KG-14285-00-00 | Washer | 1 шт. | — | |
|
| 61 | 3JD-14197-00-00 | Pipe | 2 шт. | — | |
|
| 62 | 4FU-14197-00-00 | Pipe | 0 шт. | — | |
|
| 63 | 95307-06600-00 | Nut | 4 шт. | — | |
|
| 64 | 4XY-14568-00-00 | .Joint FOR CALIFORNIA | 0 шт. | — | |
|
| 65 | 90467-10041-00 | Clip FOR CALIFORNIA | 0 шт. | — | |
|
| 66 | 4XY-14349-21-00 | Pipe FOR CALIFORNIA | 0 шт. | — | |
|
| 67 | 51L-14987-01-00 | Hose FOR CALIFORNIA | 0 шт. | — | |
|
| 68 | 3H3-24376-00-00 | Pipe, Joint 1 FOR CALIFORNIA | 0 шт. | — | |
|
| 69 | 3UH-14937-00-00 | Clip FOR CALIFORNIA | 0 шт. | — | |
|
| 70 | 3UH-14294-01-00 | Hose FOR CALIFORNIA | 0 шт. | — | |
|
| 71 | 90464-15192-00 | Clamp FOR CALIFORNIA | 0 шт. | — | |
|
