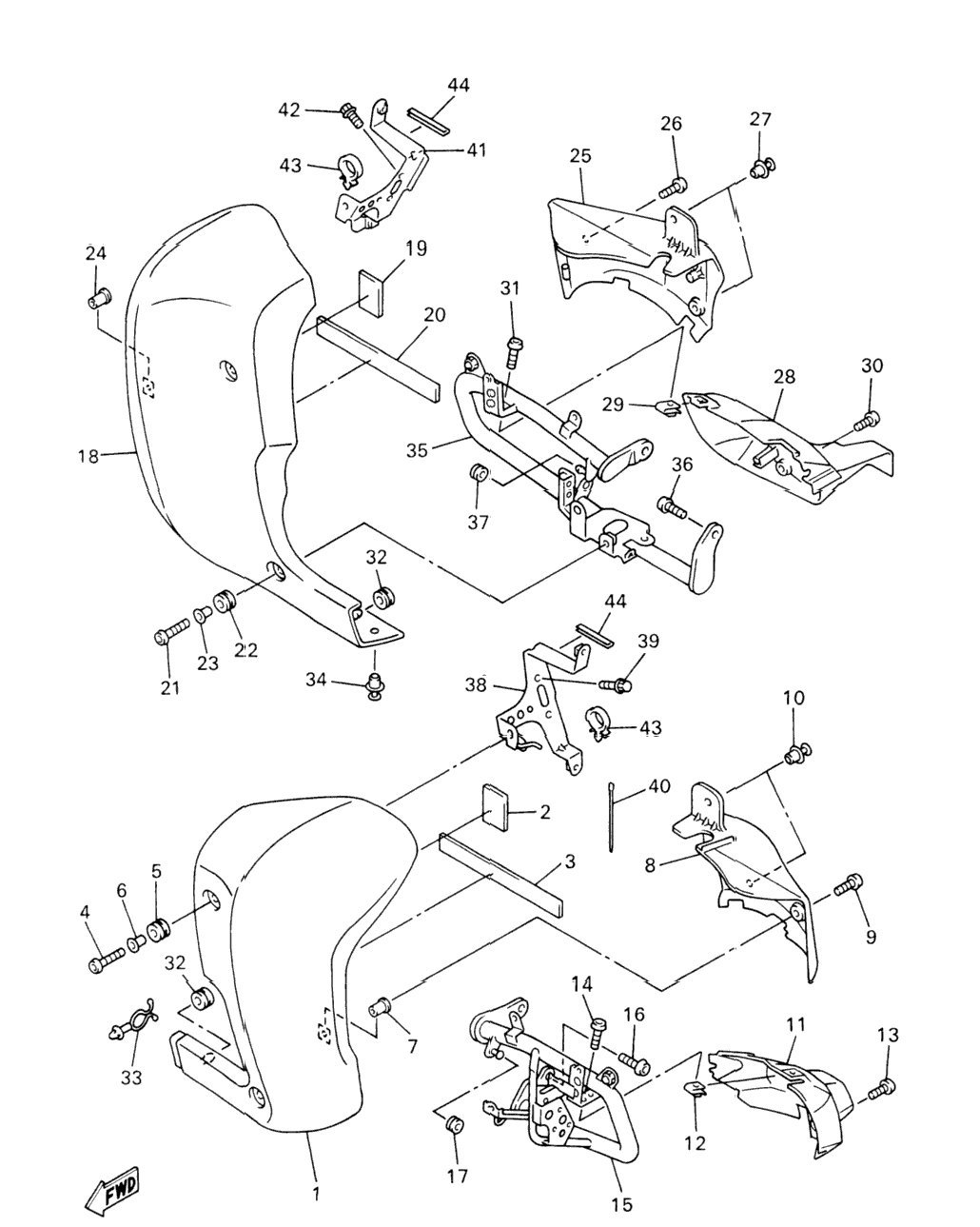

| 1 | 2C9-2835J-00-P2 | Body, Front Lower 1 SMM | 1 шт. | — | |
|
| 8 | 4XY-2835N-00-00 | Body, Rear 1 | 1 шт. | — | |
|
| 11 | 4XY-2842M-00-00 | Cover 1 | 1 шт. | — | |
|
| 15 | 4XY-28418-01-00 | Guard, Engine 1 | 1 шт. | — | |
|
| 18 | 2C9-2835K-00-P2 | Body, Front Under 2 SMM | 1 шт. | — | |
|
| 19 | 22F-2139X-00-00 | Damper | 1 шт. | — | |
|
| 19 | 22F-2139X-00-00 | Damper | 1 шт. | — | |
|
| 20 | 4XY-2139X-00-00 | Damper | 1 шт. | — | |
|
| 20 | 4XY-2139X-00-00 | Damper | 1 шт. | — | |
|
| 21 | 90110-06202-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 21 | 90110-06202-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 22 | 90480-10289-00 | Grommet | 2 шт. | — | |
|
| 22 | 90480-10289-00 | Grommet | 2 шт. | — | |
|
| 23 | 90387-066Y6-00 | Collar | 2 шт. | — | |
|
| 23 | 90387-066Y6-00 | Collar | 2 шт. | — | |
|
| 24 | 90179-05523-00 | Nut | 1 шт. | — | |
|
| 24 | 90179-05523-00 | Nut | 1 шт. | — | |
|
| 25 | 4XY-2835R-00-00 | Body, Rear 2 | 1 шт. | — | |
|
| 26 | 90149-05299-00 | Screw | 1 шт. | — | |
|
| 26 | 90149-05299-00 | Screw | 1 шт. | — | |
|
| 27 | 90269-06062-00 | Rivet | 2 шт. | — | |
|
| 27 | 90269-06062-00 | Rivet | 2 шт. | — | |
|
| 28 | 4XY-2842N-00-00 | Cover 2 | 1 шт. | — | |
|
| 29 | 90183-05024-00 | Nut, Spring | 1 шт. | — | |
|
| 29 | 90183-05024-00 | Nut, Spring | 1 шт. | — | |
|
| 30 | 90154-05013-00 | Screw, Binding | 1 шт. | — | |
|
| 30 | 90154-05013-00 | Screw, Binding | 1 шт. | — | |
|
| 31 | 98907-05010-00 | Screw, Bind | 1 шт. | — | |
|
| 31 | 98907-05010-00 | Screw, Bind | 1 шт. | — | |
|
| 32 | 90480-01558-00 | Grommet | 2 шт. | — | |
|
| 33 | 90464-18269-00 | Clamp | 1 шт. | — | |
|
| 34 | 90269-07076-00 | Rivet | 1 шт. | — | |
|
| 35 | 4XY-28419-00-00 | Guard, Engine 2 | 1 шт. | — | |
|
| 36 | 92017-10030-00 | Bolt, Button Head | 1 шт. | — | |
|
| 36 | 92017-10030-00 | Bolt, Button Head | 1 шт. | — | |
|
| 37 | 90480-11224-00 | Grommet | 1 шт. | — | |
|
| 37 | 90480-11224-00 | Grommet | 1 шт. | — | |
|
| 38 | 4XY-2831T-01-00 | Stay, Support 1 | 1 шт. | — | |
|
| 40 | 90465-10098-00 | Clamp | 1 шт. | — | |
|
| 41 | 4XY-2832T-01-00 | Stay, Support 2 | 1 шт. | — | |
|
| 42 | 95807-06010-00 | Bolt, Flange | 2 шт. | — | |
|
| 42 | 95807-06010-00 | Bolt, Flange | 2 шт. | — | |
|
| 43 | 90464-07209-00 | Clamp | 2 шт. | — | |
|
| 44 | 4XY-28347-00-00 | Mole 3 | 2 шт. | — | |
|
