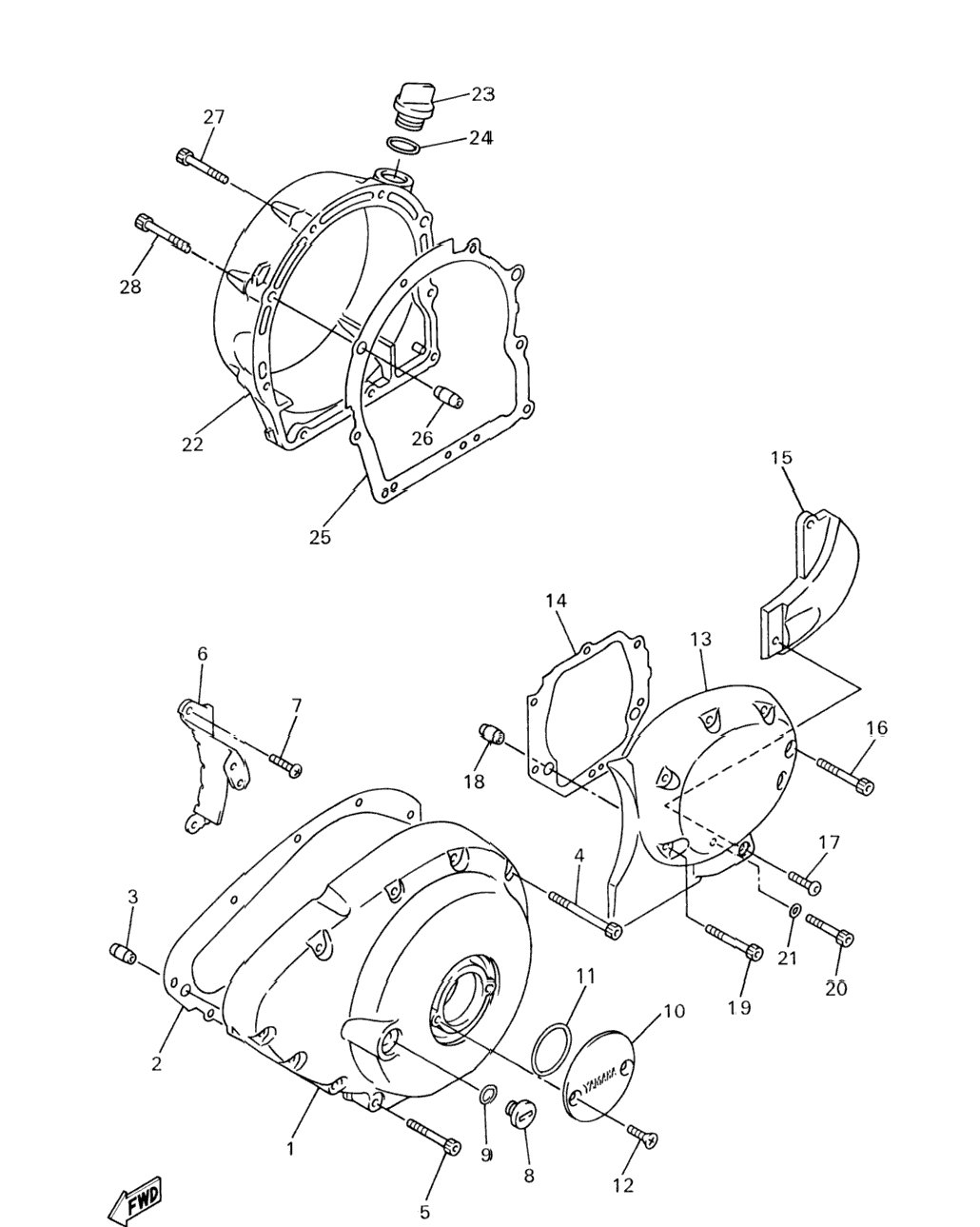

| 1 | 4NK-15411-00-00 | Cover, Crankcase 1 | 1 шт. | — | |
|
| 2 | 4NK-15451-00-00 | Gasket, Crankcase Cover 1 | 1 шт. | — | |
|
| 4 | 91314-06060-00 | Bolt, Hexagon Socket Head | 4 шт. | — | |
|
| 6 | 4NK-15191-00-00 | Plate | 1 шт. | — | |
|
| 7 | 98507-06016-00 | Screw, Pan Head | 1 шт. | — | |
|
| 8 | 90340-14139-00 | Plug, Straight Screw | 1 шт. | — | |
|
| 9 | 93210-14369-00 | O-Ring | 1 шт. | — | |
|
| 10 | 4NK-15427-00-00 | Cover, Cap 2 | 1 шт. | — | |
|
| 11 | 93210-45150-00 | O-Ring | 1 шт. | — | |
|
| 12 | 98704-06016-00 | Screw, Flat Head | 0 шт. | — | |
|
| 13 | 4NK-15421-00-00 | Cover, Crankcase 2 | 1 шт. | — | |
|
| 14 | 3JP-15461-01-00 | Gasket, Crankcase Cover 2 | 1 шт. | — | |
|
| 15 | 4NK-15423-00-00 | Cover 2 | 1 шт. | — | |
|
| 17 | 92014-06014-00 | Bolt, Button Head | 1 шт. | — | |
|
| 19 | 91314-06045-00 | Bolt, Hexagon Socket Head | 7 шт. | — | |
|
| 19 | 91314-06045-00 | Bolt, Hexagon Socket Head | 3 шт. | — | |
|
| 21 | 90430-06014-00 | .Gasket | 1 шт. | — | |
|
| 22 | 4NK-15431-00-00 | Cover, Crankcase 3 | 1 шт. | — | |
|
| 23 | 2H7-15363-00-00 | Plug, Oil | 1 шт. | — | |
|
| 24 | 93210-27370-00 | O-Ring | 1 шт. | — | |
|
| 25 | 4NK-15462-00-00 | Gasket, Crankcase Cover 3 | 1 шт. | — | |
|
| 26 | 99530-10114-00 | Pin, Dowel | 2 шт. | — | |
|
| 26 | 99530-10114-00 | Pin, Dowel | 2 шт. | — | |
|
| 26 | 99530-10114-00 | Pin, Dowel | 2 шт. | — | |
|
| 27 | 91314-06025-00 | Bolt, Hexagon Socket Head | 7 шт. | — | |
|
| 27 | 91314-06025-00 | Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 28 | 91314-06035-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 28 | 91314-06035-00 | Bolt, Hexagon Socket Head | 3 шт. | — | |
|
