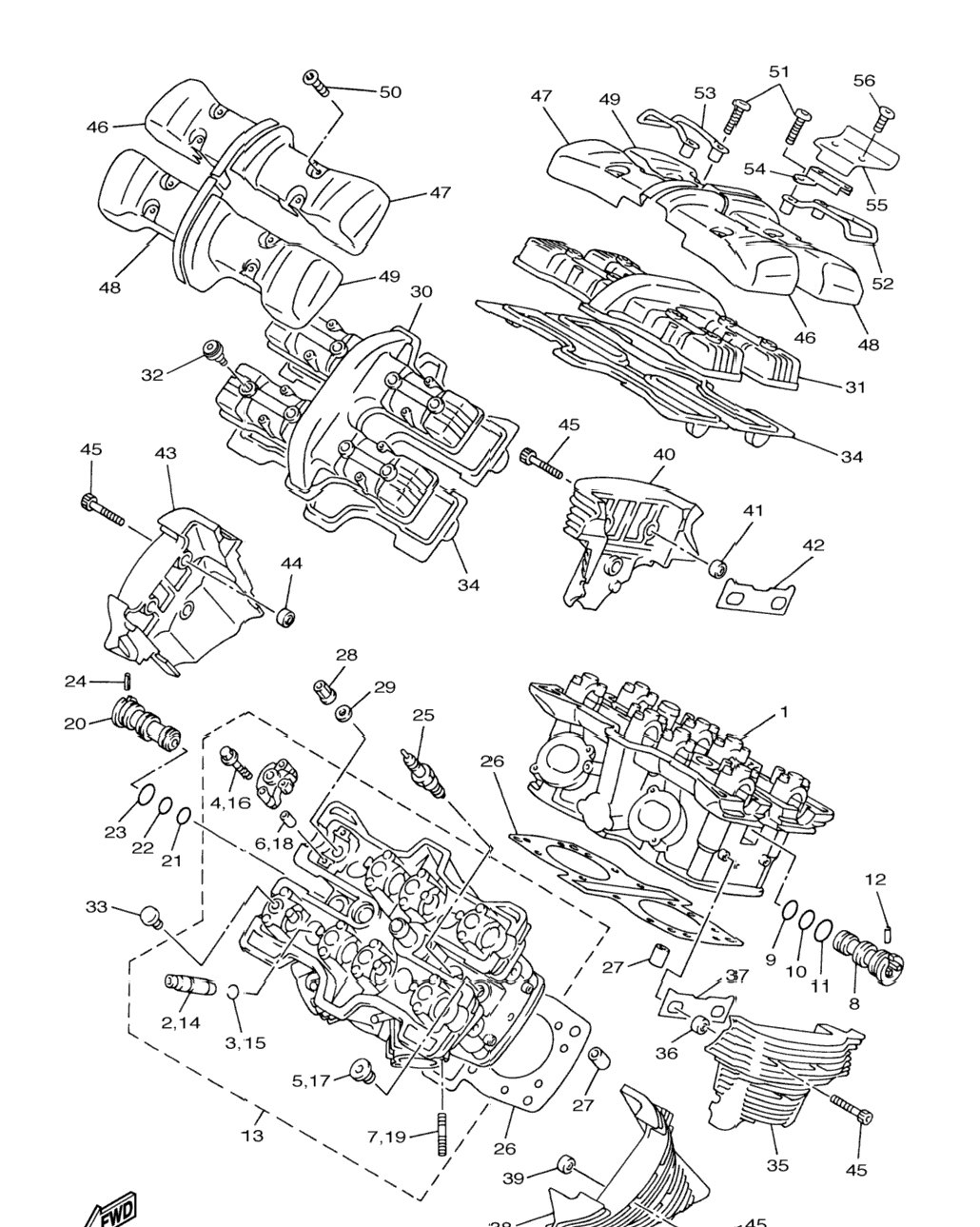

| 1 | 4XY-11101-40-00 | Cylinder Head Assy | 1 шт. | — | |
|
| 13 | 4XY-11101-51-00 | Cylinder Head Assy | 1 шт. | — | |
|
| 14 | 26H-11133-10-00 | . .Guide, Valve 1 | 8 шт. | — | |
|
| 14 | 26H-11133-10-00 | . .Guide, Valve 1 | 8 шт. | — | |
|
| 15 | 93440-12117-00 | . .Circlip | 8 шт. | — | |
|
| 15 | 93440-12117-00 | . .Circlip | 8 шт. | — | |
|
| 16 | 90105-06153-00 | . .Bolt, Flange | 16 шт. | — | |
|
| 16 | 90105-06153-00 | . .Bolt, Flange | 16 шт. | — | |
|
| 17 | 90340-18101-00 | . Plug, Straight Screw | 3 шт. | — | |
|
| 17 | 90340-18101-00 | . Plug, Straight Screw | 3 шт. | — | |
|
| 18 | 91808-16023-00 | . .Pin, Dowel | 16 шт. | — | |
|
| 18 | 91808-16023-00 | . .Pin, Dowel | 16 шт. | — | |
|
| 19 | 95617-08620-00 | . .Bolt, Stud | 4 шт. | — | |
|
| 19 | 95617-08620-00 | . .Bolt, Stud | 4 шт. | — | |
|
| 20 | 26H-12469-01-00 | Joint 1 | 1 шт. | — | |
|
| 20 | 26H-12469-01-00 | Joint 1 | 1 шт. | — | |
|
| 21 | 93210-16629-00 | O-Ring | 1 шт. | — | |
|
| 21 | 93210-16629-00 | O-Ring | 1 шт. | — | |
|
| 22 | 93210-18322-00 | .O-Ring | 1 шт. | — | |
|
| 22 | 93210-18322-00 | .O-Ring | 1 шт. | — | |
|
| 23 | 93210-21631-00 | O-Ring | 1 шт. | — | |
|
| 23 | 93210-21631-00 | O-Ring | 1 шт. | — | |
|
| 24 | 90254-03008-00 | Pin, Spring | 1 шт. | — | |
|
| 24 | 90254-03008-00 | Pin, Spring | 1 шт. | — | |
|
| 25 | 94701-00242-00 | Plug, Spark (Nd X24epr-U9) UR | 4 шт. | — | |
|
| 25 | 94701-00241-00 | Plug, Spark (Ngk Dpr8ea-9) UR | 4 шт. | — | |
|
| 26 | 1NL-11181-02-00 | Gasket, Cylinder Head 1 | 2 шт. | — | |
|
| 27 | 99530-14016-00 | Pin, Dowel | 4 шт. | — | |
|
| 28 | 90179-10026-00 | Nut | 16 шт. | — | |
|
| 29 | 90201-102G9-00 | Washer, Plate | 16 шт. | — | |
|
| 31 | 4NK-11191-00-00 | Cover, Cylinder Head 1 | 1 шт. | — | |
|
| 31 | 4NK-11191-00-00 | Cover, Cylinder Head 1 | 1 шт. | — | |
|
| 32 | 5SL-1119E-00-00 | Bolt, Cover Head | 16 шт. | — | |
|
| 33 | 90338-10150-00 | Plug | 16 шт. | — | |
|
| 34 | 4NK-11193-00-00 | Gasket, Head Cover 1 | 2 шт. | — | |
|
| 35 | 4NK-11186-20-00 | Cover, Cylinder Head Side 2 | 1 шт. | — | |
|
| 38 | 4XY-11187-20-00 | Cover, Cylinder Head Side 3 | 1 шт. | — | |
|
| 40 | 4NK-11185-20-00 | Cover, Cylinder Head Side 3 | 1 шт. | — | |
|
| 42 | 4NK-11195-00-00 | Gasket | 1 шт. | — | |
|
| 42 | 4NK-11195-00-00 | Gasket | 1 шт. | — | |
|
| 43 | 4XY-1111H-20-00 | Cover, Cylinder Head Side 4 | 1 шт. | — | |
|
| 44 | 4NK-15316-00-00 | Damper 1 | 3 шт. | — | |
|
| 44 | 4NK-15316-00-00 | Damper 1 | 3 шт. | — | |
|
| 44 | 4NK-15316-00-00 | Damper 1 | 3 шт. | — | |
|
| 44 | 4NK-15316-00-00 | Damper 1 | 3 шт. | — | |
|
| 45 | 91314-06020-00 | Bolt, Hexagon Socket Head | 12 шт. | — | |
|
| 46 | 4NK-1111M-00-00 | Cover 1 | 2 шт. | — | |
|
| 47 | 4NK-1111N-00-00 | Cover 2 | 2 шт. | — | |
|
| 48 | 4NK-1111P-00-00 | Cover 3 | 2 шт. | — | |
|
| 49 | 4NK-1111R-00-00 | Cover 4 | 2 шт. | — | |
|
| 50 | 92014-06014-00 | Bolt, Button Head | 12 шт. | — | |
|
| 51 | 92014-06030-00 | Bolt, Button Head | 4 шт. | — | |
|
| 52 | 4NK-11152-00-00 | Bracket, Cylinder Head Cover | 1 шт. | — | |
|
| 53 | 4NK-11142-00-00 | Bracket, Cylinder Head Cover 2 | 1 шт. | — | |
|
| 54 | 4XY-11152-00-00 | Bracket, Cylinder Head Cover | 1 шт. | — | |
|
| 55 | 4XY-1118A-00-00 | Cover | 1 шт. | — | |
|
| 56 | 92014-06010-00 | Bolt, Button Head | 2 шт. | — | |
|
