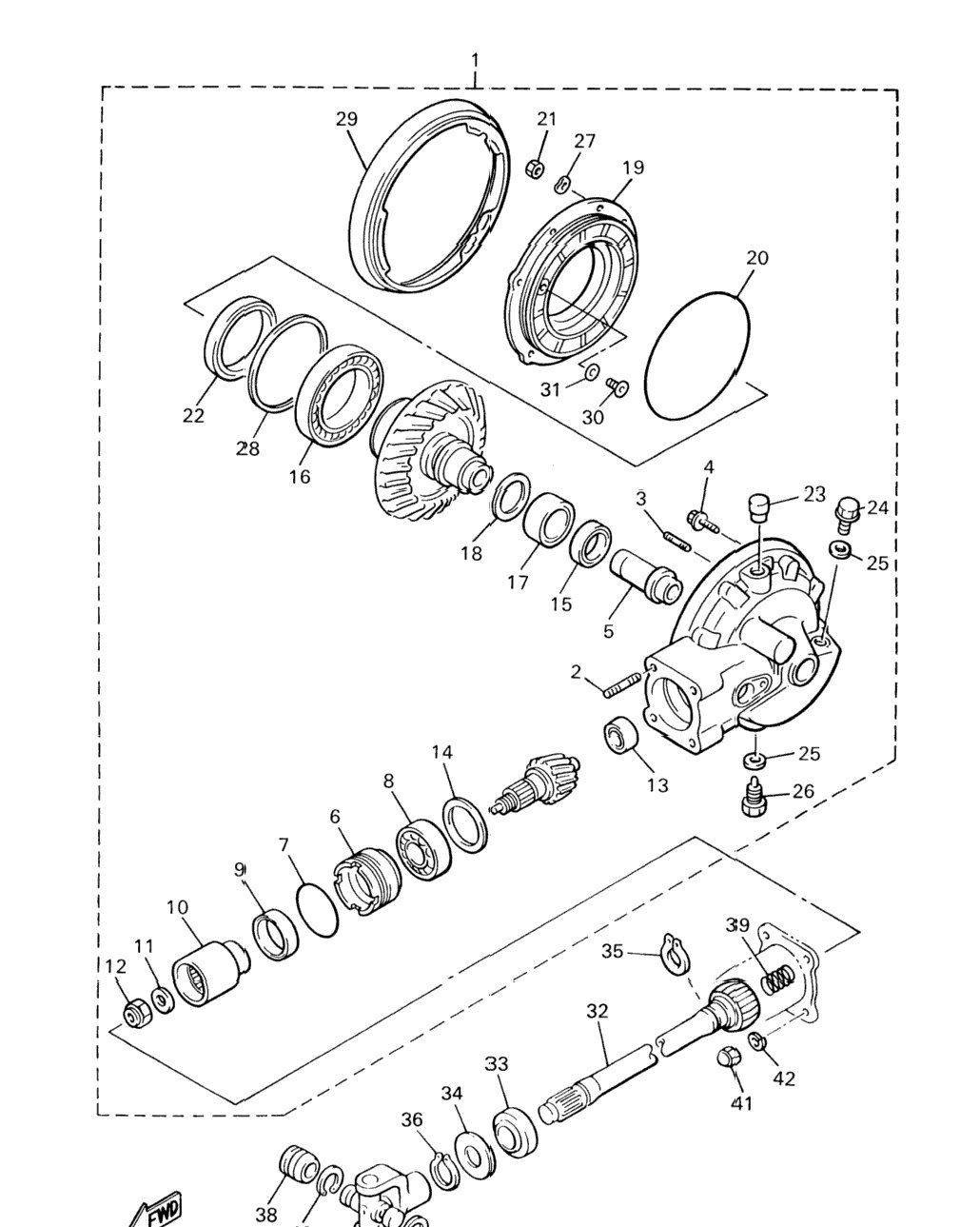

| 1 | 4XY-46101-00-00 | Rear Axle Gear Case Assy | 1 шт. | — | |
|
| 2 | 90116-10593-00 | . .Bolt, Stud | 4 шт. | — | |
|
| 3 | 90116-08427-00 | . .Bolt, Stud | 6 шт. | — | |
|
| 4 | 95817-10050-00 | . Bolt, Flange | 2 шт. | — | |
|
| 5 | 4YE-46153-00-00 | . .Collar, Guide | 0 шт. | — | |
|
| 6 | 4H7-46125-00-00 | . .Retainer, Bearing | 1 шт. | — | |
|
| 7 | 93210-60426-00 | . O-Ring | 1 шт. | — | |
|
| 8 | 93306-30533-00 | . .Bearing | 1 шт. | — | |
|
| 9 | 93101-38098-00 | . .Oil Seal | 1 шт. | — | |
|
| 10 | 4H7-46123-01-00 | . .Coupling, Gear | 1 шт. | — | |
|
| 11 | 90201-166R5-00 | . .Washer, Plate | 1 шт. | — | |
|
| 12 | 90179-16661-00 | . Nut | 1 шт. | — | |
|
| 13 | 2H7-46102-00-00 | . .Bearing Assy | 1 шт. | — | |
|
| 14 | 1J7-17537-Y0-50 | . .Shim, Thrust (0.50T) UR | 1 шт. | — | |
|
| 15 | 1J7-17537-Y0-40 | . .Shim, Thrust (0.40T) UR | 1 шт. | — | |
|
| 16 | 1J7-17537-Y0-30 | . .Shim, Thrust (0.30T) UR | 1 шт. | — | |
|
| 17 | 93101-30084-00 | . .Oil Seal | 1 шт. | — | |
|
| 18 | 93316-01403-00 | . .Bearing | 1 шт. | — | |
|
| 19 | 93311-43729-00 | . .Bearing | 1 шт. | — | |
|
| 20 | 22U-46118-00-20 | . .Shim, Thrust (2.0T) UR | 1 шт. | — | |
|
| 21 | 22U-46118-00-18 | . .Shim, Thrust (1.8T) UR | 1 шт. | — | |
|
| 22 | 22U-46118-00-16 | . .Shim, Thrust (1.6T) UR | 1 шт. | — | |
|
| 23 | 22U-46118-00-14 | . .Shim, Thrust (1.4T) UR | 1 шт. | — | |
|
| 24 | 22U-46118-00-12 | . .Shim, Thrust (1.2T) UR | 1 шт. | — | |
|
| 25 | 1FK-46152-01-00 | . .Housing, Bearing | 0 шт. | — | |
|
| 26 | 93211-54698-00 | . .O-Ring | 1 шт. | — | |
|
| 27 | 95317-08600-00 | . .Nut | 6 шт. | — | |
|
| 28 | 93102-70167-00 | . .Oil Seal | 1 шт. | — | |
|
| 29 | 56W-17590-00-00 | . .Breather Comp | 1 шт. | — | |
|
| 30 | 90340-14132-00 | . .Plug, Straight Screw | 1 шт. | — | |
|
| 31 | 214-11198-01-00 | . .Gasket | 2 шт. | — | |
|
| 32 | 90340-14135-00 | . .Plug, Straight Screw | 0 шт. | — | |
|
| 33 | 92907-08700-00 | . .Washer | 6 шт. | — | |
|
| 34 | 1J7-46117-Y0-25 | . .Shim, Ring Gear (0.25T) UR | 1 шт. | — | |
|
| 35 | 1J7-46117-Y0-30 | . .Shim, Ring Gear (0.30T) UR | 1 шт. | — | |
|
| 36 | 1J7-46117-Y0-40 | . .Shim, Ring Gear (0.40T) UR | 1 шт. | — | |
|
| 37 | 1J7-46117-Y0-50 | . .Shim, Ring Gear (0.50T) UR | 1 шт. | — | |
|
| 38 | 1FK-46154-00-00 | . .Cover, Housing | 1 шт. | — | |
|
| 39 | 1FK-46156-00-00 | . .Stopper, Ring Gear | 1 шт. | — | |
|
| 40 | 1FK-46157-00-15 | . .Shim, Stopper (T=0.15) UR | 1 шт. | — | |
|
| 41 | 1FK-46157-00-20 | . .Shim, Stopper (T=0.20) UR | 1 шт. | — | |
|
| 42 | 4XY-46172-00-00 | Shaft, Drive | 1 шт. | — | |
|
| 43 | 93108-43013-00 | Oil Seal | 1 шт. | — | |
|
| 44 | 90201-231A2-00 | Washer, Plate | 1 шт. | — | |
|
| 45 | 93410-23056-00 | .Circlip | 1 шт. | — | |
|
| 46 | 93410-22039-00 | Circlip | 1 шт. | — | |
|
| 47 | 4X7-46180-00-00 | Cross Joint Comp | 1 шт. | — | |
|
| 48 | 93311-21044-00 | Bearing | 2 шт. | — | |
|
| 49 | 90501-16491-00 | Spring, Compression | 1 шт. | — | |
|
| 50 | 93440-20088-00 | Circlip | 2 шт. | — | |
|
| 51 | 90176-10075-00 | Nut, Crown | 4 шт. | — | |
|
| 52 | 92903-10100-00 | Washer, Spring | 4 шт. | — | |
|
