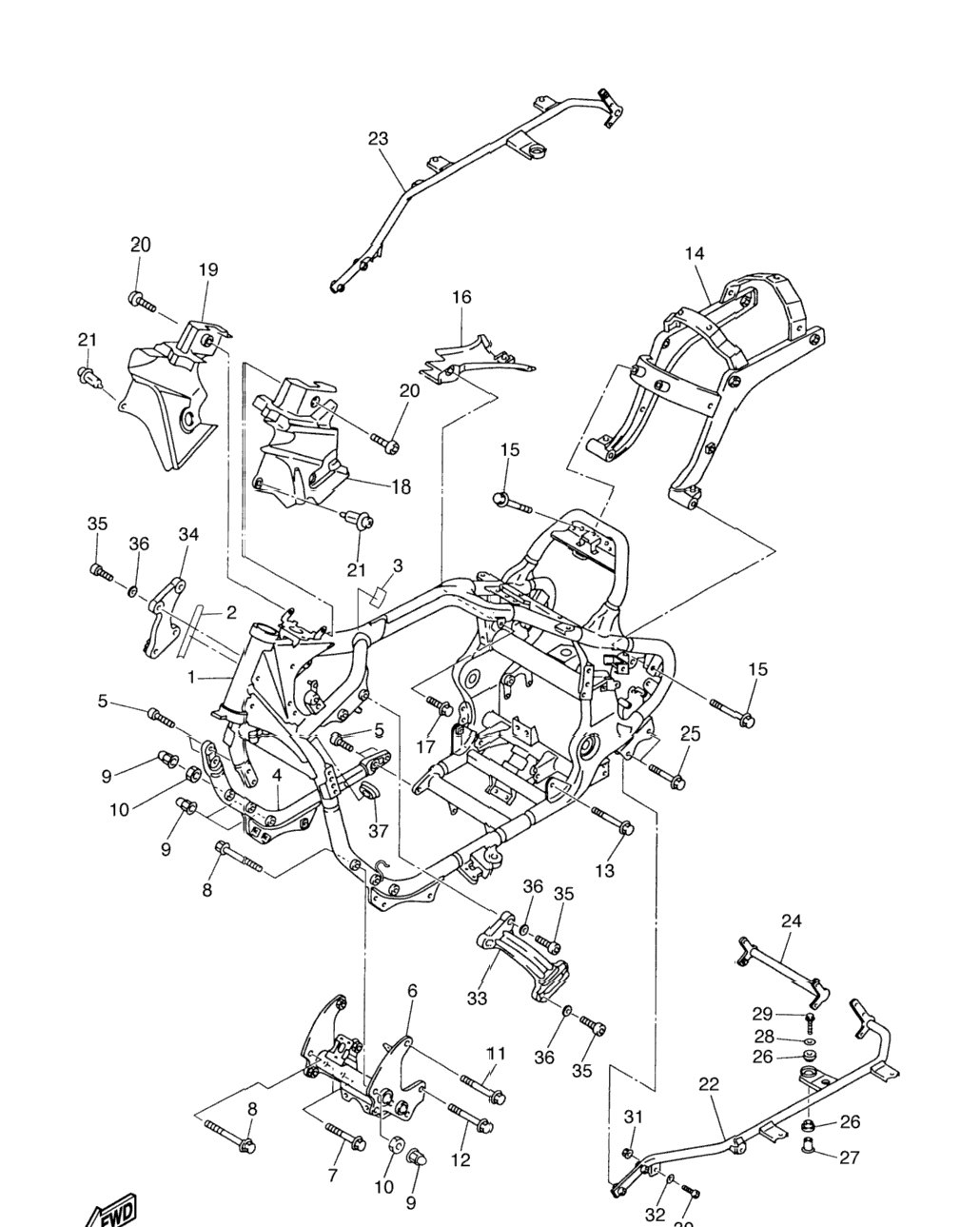

| 1 | 4XY-21110-00-33 | Frame Comp YB | 1 шт. | — | |
|
| 2 | 3HA-24141-00-00 | Protector, Fuel Tank | 1 шт. | — | |
|
| 3 | 2AL-84553-00-00 | .Damper | 1 шт. | — | |
|
| 4 | 4XY-21150-00-33 | Down Tube Comp.2 YB | 1 шт. | — | |
|
| 5 | 90110-10161-00 | Bolt, Hexagon Socket Head | 4 шт. | — | |
|
| 6 | 4XY-2141V-01-00 | Cross Bar Complete | 1 шт. | — | |
|
| 7 | 95827-10070-00 | Bolt, Flange | 4 шт. | — | |
|
| 8 | 95827-10080-00 | Bolt, Flange | 2 шт. | — | |
|
| 9 | 90176-10075-00 | Nut, Crown | 6 шт. | — | |
|
| 10 | 90170-10206-00 | Nut | 2 шт. | — | |
|
| 11 | 90105-10788-00 | Bolt, Flange | 2 шт. | — | |
|
| 12 | 90105-10788-00 | Bolt, Flange | 2 шт. | — | |
|
| 13 | 90105-12252-00 | Bolt, Flange | 2 шт. | — | |
|
| 14 | 4XY-21190-02-00 | Rear Frame Comp | 1 шт. | — | |
|
| 15 | 95827-10035-00 | Bolt, Flange | 4 шт. | — | |
|
| 16 | 4XY-2117M-00-00 | Cover 2 | 1 шт. | — | |
|
| 17 | 90119-06236-00 | Bolt, With Washer | 1 шт. | — | |
|
| 18 | 4XY-2171E-00-00 | Cover, Side 5 | 1 шт. | — | |
|
| 19 | 4XY-2171X-00-00 | Cover, Side 6 | 1 шт. | — | |
|
| 20 | 90154-05013-00 | Screw, Binding | 2 шт. | — | |
|
| 21 | 90269-06083-00 | Rivet | 2 шт. | — | |
|
| 22 | 4XY-21445-00-00 | Stay, Muffler 1 | 1 шт. | — | |
|
| 23 | 4XY-21446-00-00 | Stay, Muffler 2 | 1 шт. | — | |
|
| 24 | 4YE-2144F-01-00 | Stay, Muffler 3 | 1 шт. | — | |
|
| 25 | 90105-08310-00 | Bolt, Flange | 4 шт. | — | |
|
| 26 | 36Y-14747-00-00 | Damper, Muffler | 4 шт. | — | |
|
| 27 | 4G0-14638-00-00 | Collar | 2 шт. | — | |
|
| 28 | 90201-10669-00 | Washer, Plate | 2 шт. | — | |
|
| 29 | 95807-10040-00 | Bolt, Flange | 2 шт. | — | |
|
| 30 | 91317-08035-00 | Bolt | 2 шт. | — | |
|
| 31 | 95607-08200-00 | Nut, Self-Locking | 2 шт. | — | |
|
| 32 | 90201-08326-00 | Washer, Plate | 2 шт. | — | |
|
| 33 | 4XY-21315-20-00 | Stay, Engine 2 | 1 шт. | — | |
|
| 34 | 4XY-21316-20-00 | Stay, Engine 3 | 1 шт. | — | |
|
| 35 | 91314-10035-00 | Bolt, Hexagon Socket Head | 8 шт. | — | |
|
| 36 | 92990-10600-00 | Washer, Plate | 8 шт. | — | |
|
| 37 | 90480-01141-00 | Grommet | 1 шт. | — | |
|
