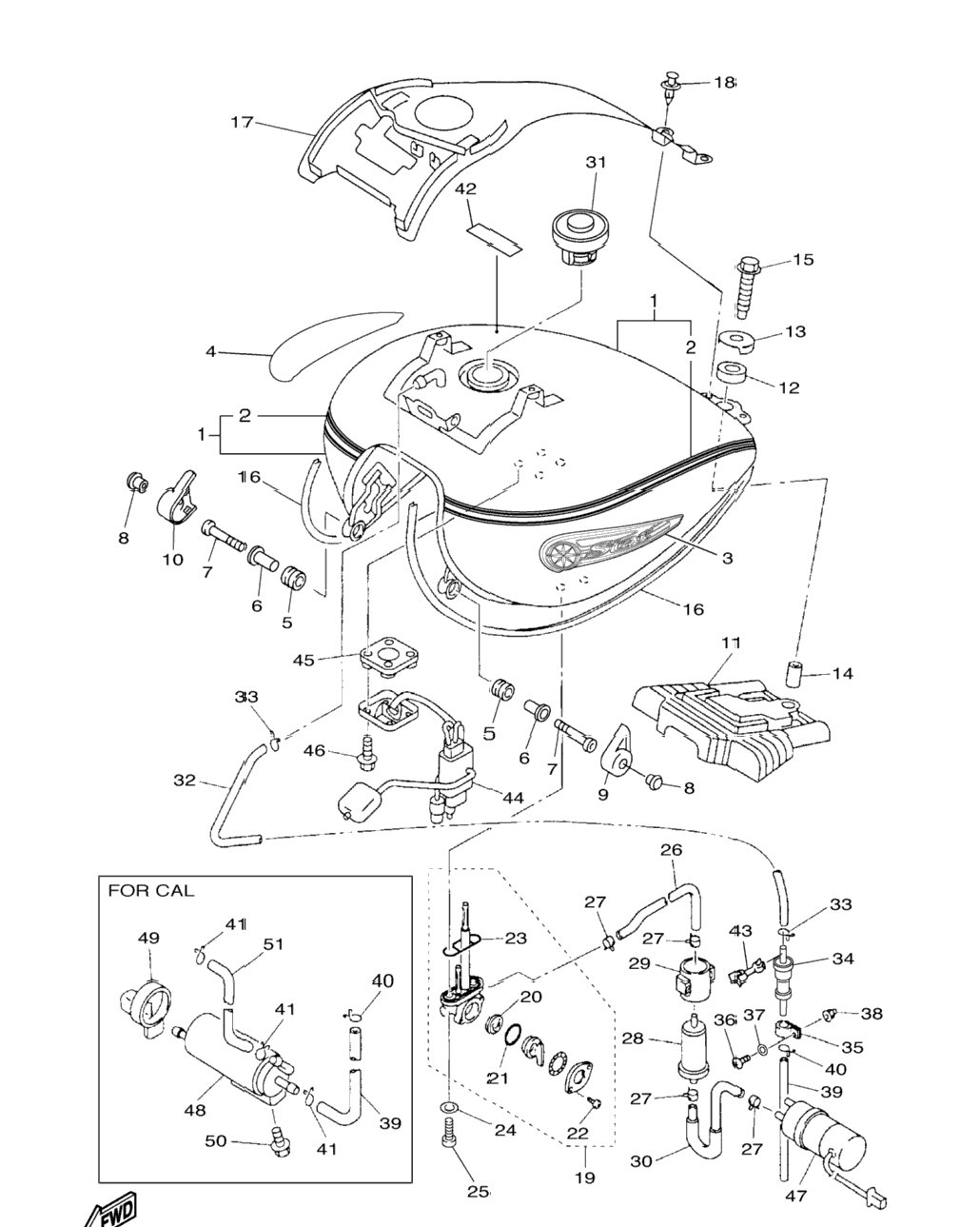

| 1 | 4XY-Y2410-10-W2 | Fuel Tank Comp SMM | 1 шт. | — | |
|
| 2 | 2C9-24240-60-00 | . .Graphic Set | 0 шт. | — | |
|
| 3 | 2C9-2416B-40-00 | Emblem | 1 шт. | — | |
|
| 4 | 2C9-2417B-40-00 | Emblem | 1 шт. | — | |
|
| 5 | 90480-18354-00 | Grommet | 2 шт. | — | |
|
| 6 | 90387-06091-00 | .Collar | 2 шт. | — | |
|
| 7 | 91317-06035-00 | Bolt | 0 шт. | — | |
|
| 8 | 2H9-23469-00-00 | Cap, Bolt | 2 шт. | — | |
|
| 9 | 1D6-24129-00-00 | Cover, Side 1 | 1 шт. | — | |
|
| 10 | 1D6-24139-00-00 | Cover, Side 2 | 1 шт. | — | |
|
| 11 | 4XY-24182-00-00 | Damper, Locating 2 | 1 шт. | — | |
|
| 12 | 4XY-24183-00-00 | Damper, Locating 3 | 1 шт. | — | |
|
| 13 | 42X-24186-00-00 | Washer, Special | 1 шт. | — | |
|
| 14 | 90387-0813V-00 | Collar | 1 шт. | — | |
|
| 15 | 90109-08002-00 | Bolt | 1 шт. | — | |
|
| 16 | 4XY-24188-00-00 | Mold, Fuel Tank | 2 шт. | — | |
|
| 17 | 4XY-2171A-00-00 | Cover, Top | 1 шт. | — | |
|
| 18 | 90269-07076-00 | Rivet | 2 шт. | — | |
|
| 19 | 4WM-24500-10-00 | Fuel Cock Assy 1 | 1 шт. | — | |
|
| 20 | 3AC-24523-00-00 | . .Valve Packing | 1 шт. | — | |
|
| 21 | 3AJ-24534-10-00 | . .Seal, Cock | 1 шт. | — | |
|
| 22 | 98507-03008-00 | . .Screw, Pan Head | 2 шт. | — | |
|
| 23 | 4X8-24512-10-00 | . .Gasket | 1 шт. | — | |
|
| 24 | 90202-05193-00 | Washer, Plate | 2 шт. | — | |
|
| 25 | 90149-06011-00 | Screw | 2 шт. | — | |
|
| 26 | 4XY-24311-10-00 | Pipe, Fuel 1 | 1 шт. | — | |
|
| 27 | 90467-12053-00 | Clip | 4 шт. | — | |
|
| 28 | 1FK-24560-10-00 | Filter Assy | 1 шт. | — | |
|
| 29 | 1FK-24566-00-00 | Bracket, Filter | 1 шт. | — | |
|
| 30 | 4NK-24312-10-00 | Pipe 2 | 1 шт. | — | |
|
| 31 | 4NK-24602-20-00 | Cap Assy | 1 шт. | — | |
|
| 32 | 1D6-24321-10-00 | Pipe 10 | 1 шт. | — | |
|
| 33 | 90467-09002-00 | Clip | 2 шт. | — | |
|
| 34 | 5PX-24180-00-00 | Roll Over Valve Assy | 1 шт. | — | |
|
| 35 | 90461-15100-00 | Clamp | 1 шт. | — | |
|
| 36 | 98507-05012-00 | .Screw, Pan Head | 1 шт. | — | |
|
| 37 | 92907-05600-00 | Washer, Plate | 1 шт. | — | |
|
| 38 | 90176-05054-00 | Nut, Crown | 1 шт. | — | |
|
| 39 | 90445-11053-00 | Hose (L400) | 1 шт. | — | |
|
| 40 | 90467-10041-00 | Clip | 1 шт. | — | |
|
| 41 | 90467-10041-00 | Clip FOR CALIFORNIA | 0 шт. | — | |
|
| 42 | 5GK-2118K-00-00 | Label, Caution | 1 шт. | — | |
|
| 43 | 90464-13103-00 | Clamp | 2 шт. | — | |
|
| 44 | 4XY-85752-00-00 | Sender Unit Assy, Fuel Meter | 1 шт. | — | |
|
| 45 | 5G3-85753-00-00 | Gasket, Sender Unit | 1 шт. | — | |
|
| 46 | 90119-05071-00 | Bolt, With Washer | 4 шт. | — | |
|
| 47 | 4NK-13907-00-00 | Fuel Pump Comp | 1 шт. | — | |
|
| 48 | 4XY-24170-00-00 | Canister Assy FOR CALIFORNIA | 0 шт. | — | |
|
| 49 | 2JU-2419E-00-00 | Cover, Canister FOR CALIFORNIA | 0 шт. | — | |
|
| 50 | 95807-06010-00 | Bolt, Flange FOR CALIFORNIA | 0 шт. | — | |
|
| 51 | 90445-11054-00 | Hose (L560) FOR CALIFORNIA | 0 шт. | — | |
|
