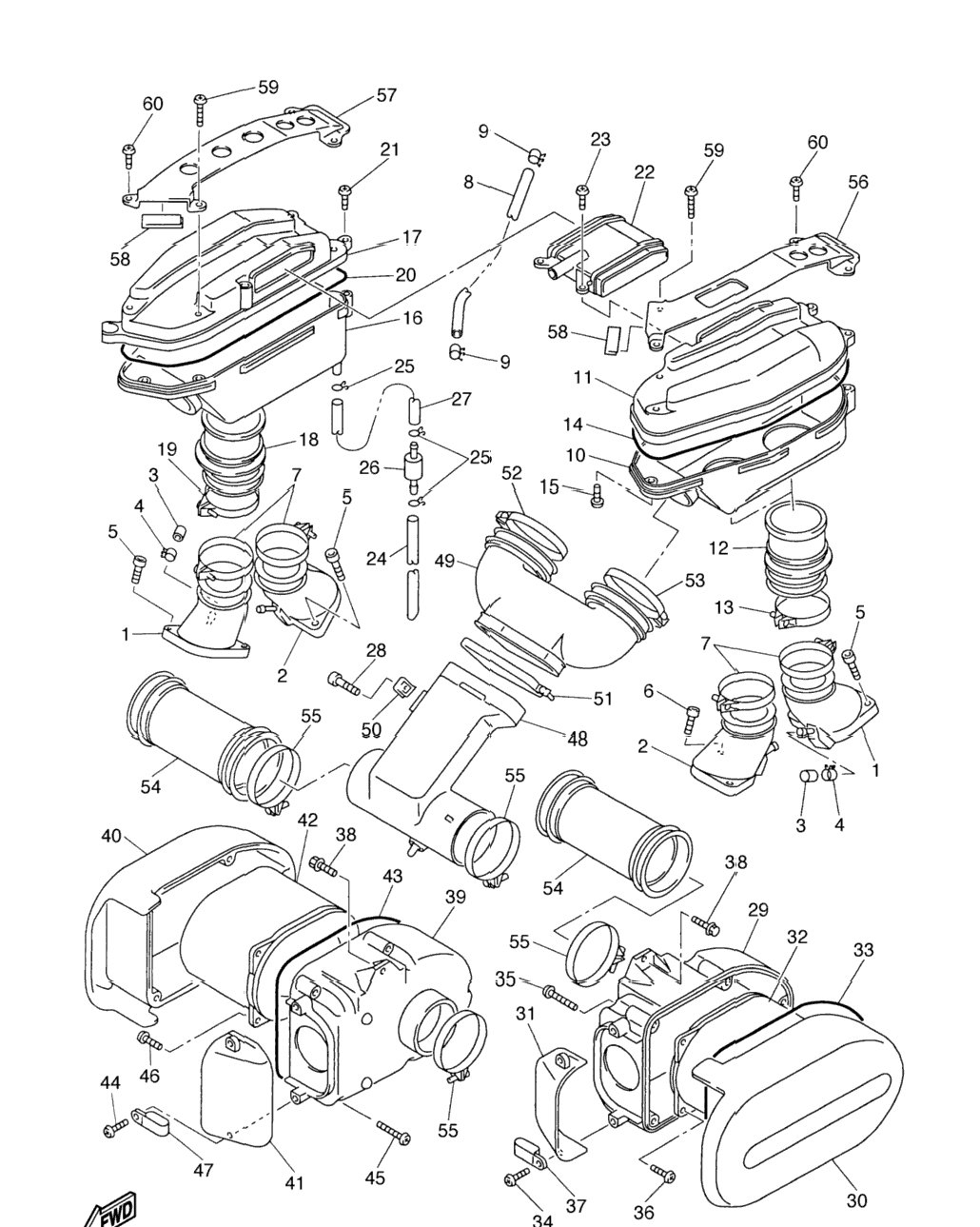

| 1 | 4XY-13586-10-00 | Joint, Carburetor 1 | 2 шт. | — | |
|
| 2 | 4XY-13596-10-00 | Joint, Carburetor 2 | 2 шт. | — | |
|
| 3 | 16G-13569-00-00 | Plug, Blind | 2 шт. | — | |
|
| 4 | 90467-10039-00 | Clip | 2 шт. | — | |
|
| 5 | 91317-06020-00 | Bolt | 6 шт. | — | |
|
| 6 | 90110-06113-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 7 | 4XY-13575-00-00 | Band | 4 шт. | — | |
|
| 8 | 4XY-13971-10-00 | Pipe, Fuel 1 | 1 шт. | — | |
|
| 9 | 90467-13123-00 | Clip | 2 шт. | — | |
|
| 10 | 4XY-14411-00-00 | Case, Air Cleaner 1 | 1 шт. | — | |
|
| 11 | 4XY-14417-01-00 | Cover 1 | 0 шт. | — | |
|
| 12 | 4XY-14453-00-00 | Joint, Air Cleaner 1 | 2 шт. | — | |
|
| 13 | 90460-58204-00 | Clamp, Hose | 2 шт. | — | |
|
| 14 | 4XY-14457-00-00 | Seal | 1 шт. | — | |
|
| 15 | 97707-50120-00 | Screw, Tapping | 2 шт. | — | |
|
| 16 | 4XY-14421-00-00 | Case, Air Cleaner 2 | 1 шт. | — | |
|
| 17 | 4XY-14418-01-00 | Cover 2 | 1 шт. | — | |
|
| 18 | 4XY-14453-00-00 | Joint, Air Cleaner 1 | 2 шт. | — | |
|
| 19 | 90460-58204-00 | Clamp, Hose | 2 шт. | — | |
|
| 20 | 4XY-14457-00-00 | Seal | 1 шт. | — | |
|
| 21 | 97707-50120-00 | Screw, Tapping | 2 шт. | — | |
|
| 22 | 4XY-14485-00-00 | Pipe, Joint | 1 шт. | — | |
|
| 23 | 97707-50116-00 | Screw, Tapping | 2 шт. | — | |
|
| 24 | 90445-115J9-00 | Hose (L340) | 2 шт. | — | |
|
| 25 | 90467-11106-00 | Clip | 6 шт. | — | |
|
| 26 | 4X7-2149Y-00-00 | Filter Assy | 2 шт. | — | |
|
| 27 | 2UJ-14419-00-00 | Pipe | 2 шт. | — | |
|
| 28 | 91314-06035-00 | Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 29 | 4XY-14431-02-00 | Silencer, Intake 1 | 1 шт. | — | |
|
| 30 | 4XY-1442A-00-00 | Cover, Cleaner Case 3 | 1 шт. | — | |
|
| 31 | 4XY-14437-00-00 | Duct | 1 шт. | — | |
|
| 32 | 4XY-14451-01-00 | Element, Air Cleaner | 1 шт. | — | |
|
| 33 | 4XY-14452-00-00 | Seal | 1 шт. | — | |
|
| 34 | 97707-50125-00 | Screw, Tapping | 2 шт. | — | |
|
| 35 | 97707-50140-00 | Screw, Tapping | 5 шт. | — | |
|
| 36 | 97707-50116-00 | Screw, Tapping | 2 шт. | — | |
|
| 37 | 90461-05003-00 | Clamp | 1 шт. | — | |
|
| 38 | 95804-06012-00 | Bolt, Flange | 4 шт. | — | |
|
| 39 | 4XY-14431-02-00 | Silencer, Intake 1 | 1 шт. | — | |
|
| 40 | 4XY-1442A-00-00 | Cover, Cleaner Case 3 | 1 шт. | — | |
|
| 41 | 4XY-14437-00-00 | Duct | 1 шт. | — | |
|
| 42 | 4XY-14451-01-00 | Element, Air Cleaner | 1 шт. | — | |
|
| 43 | 4XY-14452-00-00 | Seal | 1 шт. | — | |
|
| 44 | 97707-50125-00 | Screw, Tapping | 2 шт. | — | |
|
| 45 | 97707-50140-00 | Screw, Tapping | 5 шт. | — | |
|
| 46 | 97707-50116-00 | Screw, Tapping | 2 шт. | — | |
|
| 47 | 90461-05003-00 | Clamp | 1 шт. | — | |
|
| 48 | 4XY-1441A-00-00 | Cover, Cleaner Case 1 | 1 шт. | — | |
|
| 49 | 4XY-14463-00-00 | Joint, Air Cleaner 2 | 1 шт. | — | |
|
| 50 | 90183-06069-00 | Nut, Spring | 1 шт. | — | |
|
| 51 | 4XY-14455-00-00 | Band | 1 шт. | — | |
|
| 52 | 90460-65169-00 | Clamp, Hose | 1 шт. | — | |
|
| 53 | 1D6-11387-00-00 | Clamp, Hose 1 | 1 шт. | — | |
|
| 54 | 4XY-14454-00-00 | Joint | 2 шт. | — | |
|
| 55 | 90460-65169-00 | Clamp, Hose | 4 шт. | — | |
|
| 56 | 4XY-82361-00-00 | Clamp, Cord | 1 шт. | — | |
|
| 57 | 4XY-82362-00-00 | Clamp, Cord 2 | 1 шт. | — | |
|
| 58 | 4XY-82388-01-00 | Plate | 2 шт. | — | |
|
| 59 | 97707-50140-00 | Screw, Tapping | 2 шт. | — | |
|
| 60 | 97707-50125-00 | Screw, Tapping | 6 шт. | — | |
|
