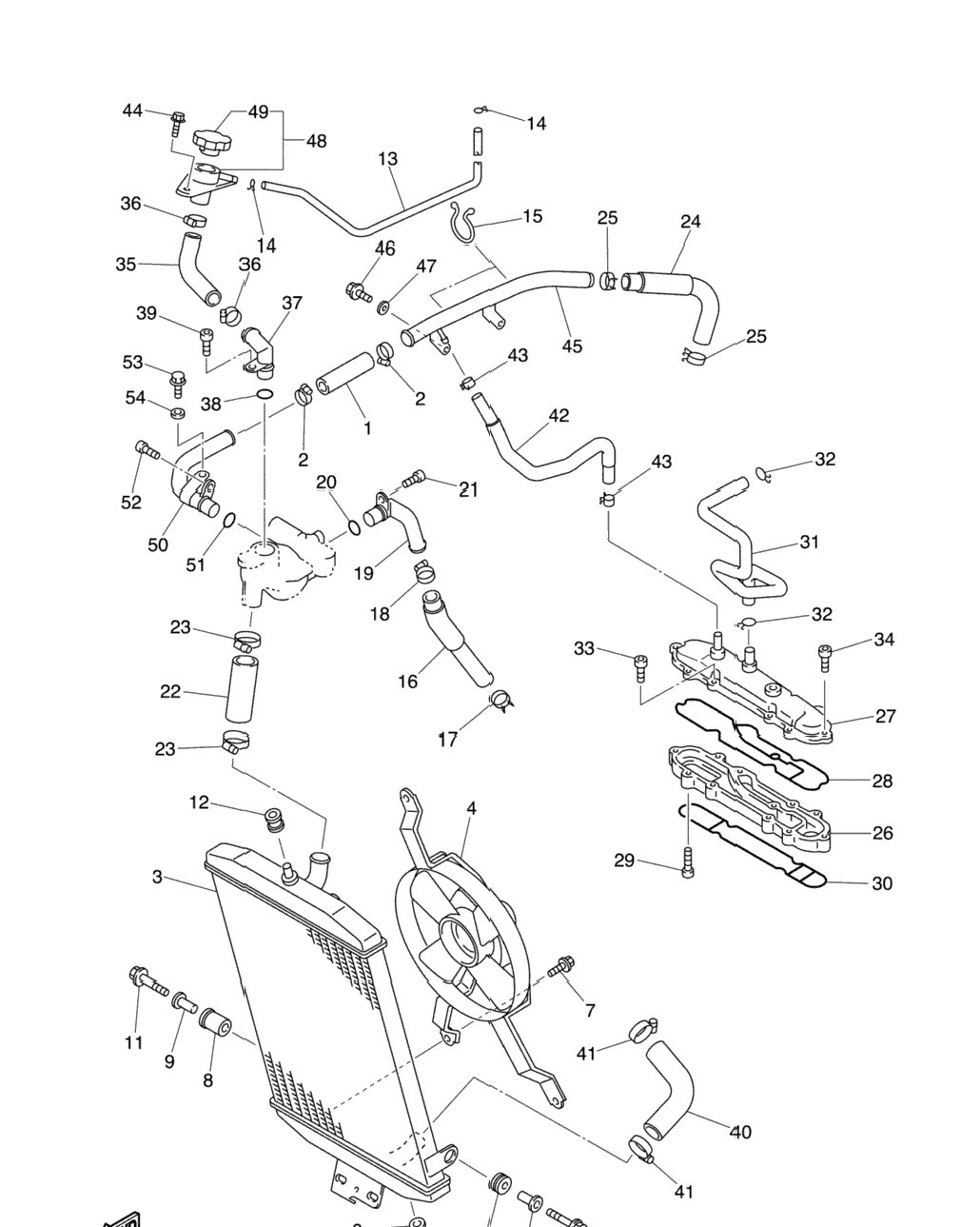

| 1 | 4XY-12578-00-00 | Hose 3 | 1 шт. | — | |
|
| 2 | 90450-28014-00 | Hose Clamp Assy | 2 шт. | — | |
|
| 3 | 4XY-12461-00-00 | Radiator Comp | 1 шт. | — | |
|
| 4 | 4XY-12405-00-00 | Blower Assy | 1 шт. | — | |
|
| 5 | 1AA-12561-00-00 | Plug,Drain Cock | 1 шт. | — | |
|
| 6 | 1AA-12435-00-00 | Gasket | 1 шт. | — | |
|
| 7 | 90119-06044-00 | Bolt, With Washer | 3 шт. | — | |
|
| 8 | 4XY-12465-00-00 | Damper, Radiator | 1 шт. | — | |
|
| 9 | 90387-0614X-00 | Collar | 2 шт. | — | |
|
| 10 | 90480-19283-00 | Grommet | 1 шт. | — | |
|
| 11 | 95827-06045-00 | Bolt, Flange | 2 шт. | — | |
|
| 12 | 90480-16284-00 | Grommet | 1 шт. | — | |
|
| 13 | 90445-09123-00 | Hose (L730) | 1 шт. | — | |
|
| 14 | 90467-08003-00 | Clip | 2 шт. | — | |
|
| 15 | 90464-25267-00 | Clamp | 2 шт. | — | |
|
| 16 | 4XY-12576-00-00 | Hose 1 | 1 шт. | — | |
|
| 17 | 90467-23109-00 | Clip | 1 шт. | — | |
|
| 18 | 90450-28014-00 | Hose Clamp Assy | 1 шт. | — | |
|
| 19 | 4XY-12485-00-00 | Pipe 5 | 1 шт. | — | |
|
| 20 | 93210-18417-00 | O-Ring | 1 шт. | — | |
|
| 21 | 91317-06012-00 | Bolt | 1 шт. | — | |
|
| 22 | 4XY-12579-00-00 | Hose 4 | 1 шт. | — | |
|
| 23 | 90450-38040-00 | Hose Clamp Assy | 2 шт. | — | |
|
| 24 | 4XY-12577-00-00 | Hose 2 | 1 шт. | — | |
|
| 25 | 90467-23109-00 | Clip | 2 шт. | — | |
|
| 26 | 1FK-1246A-10-00 | Cover 1 | 1 шт. | — | |
|
| 27 | 26H-1246E-20-00 | Cover 2 | 1 шт. | — | |
|
| 28 | 26H-12428-00-00 | Gasket, Housing Cover 2 | 1 шт. | — | |
|
| 29 | 91314-06016-00 | Bolt, Hexagon Socket Head | 4 шт. | — | |
|
| 30 | 26H-12427-00-00 | Gasket, Housing Cover 1 | 1 шт. | — | |
|
| 31 | 4XY-11166-00-00 | Pipe, Breather 1 | 1 шт. | — | |
|
| 32 | 90467-14015-00 | Clip | 2 шт. | — | |
|
| 33 | 90110-06023-00 | Bolt, Hexagon Socket Head | 4 шт. | — | |
|
| 34 | 91314-06040-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 35 | 4XY-12589-00-00 | Hose 6 | 1 шт. | — | |
|
| 36 | 90450-28014-00 | Hose Clamp Assy | 2 шт. | — | |
|
| 37 | 4XY-12484-00-00 | Pipe 4 | 1 шт. | — | |
|
| 38 | 93210-18417-00 | O-Ring | 1 шт. | — | |
|
| 39 | 91317-06012-00 | Bolt | 1 шт. | — | |
|
| 40 | 4XY-12588-00-00 | Hose 5 | 1 шт. | — | |
|
| 41 | 90450-38040-00 | Hose Clamp Assy | 2 шт. | — | |
|
| 42 | 4XY-12551-00-00 | Hose 7 | 1 шт. | — | |
|
| 43 | 90467-11090-00 | Clip | 2 шт. | — | |
|
| 44 | 95827-06012-00 | Bolt, Flange | 2 шт. | — | |
|
| 45 | 4XY-12481-00-00 | Pipe 1 | 1 шт. | — | |
|
| 46 | 97027-05010-00 | Bolt, Hexagon | 2 шт. | — | |
|
| 47 | 92907-05600-00 | Washer, Plate | 2 шт. | — | |
|
| 48 | 4NK-12590-00-00 | Conduction Assy | 1 шт. | — | |
|
| 49 | 3XP-12462-00-00 | . .Cap, Radiator | 1 шт. | — | |
|
| 50 | 4XY-12482-00-00 | Pipe 2 | 1 шт. | — | |
|
| 51 | 93210-18417-00 | O-Ring | 1 шт. | — | |
|
| 52 | 91317-06012-00 | Bolt | 1 шт. | — | |
|
| 53 | 95027-06012-00 | Bolt, Flange | 1 шт. | — | |
|
| 54 | 92907-06600-00 | Washer, Plate | 1 шт. | — | |
|
