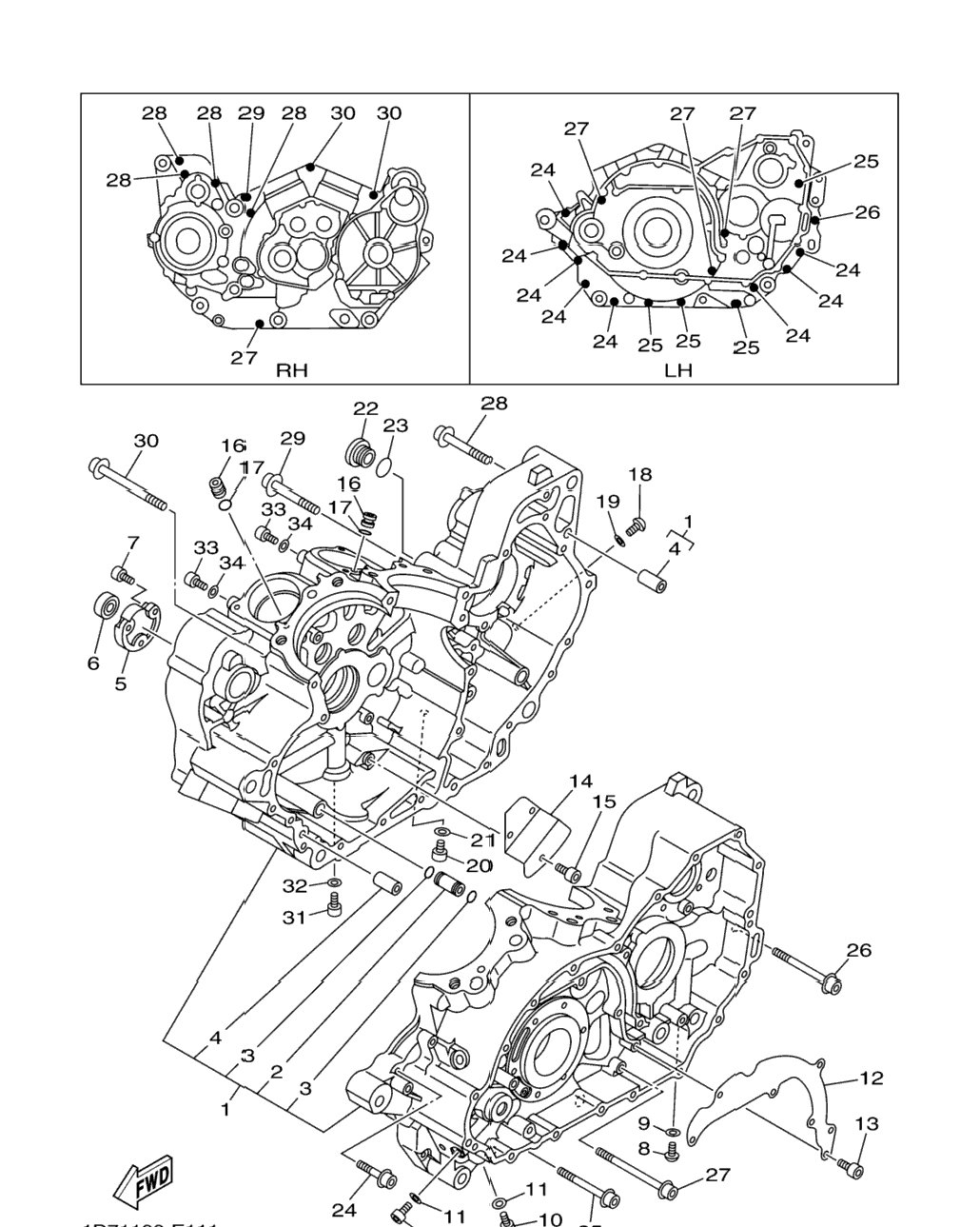

| 1 | 1D7-15100-19-00 | Crankcase Assy | 1 шт. | — | |
|
| 2 | 1D7-15138-00-00 | . .Nozzle 1 | 1 шт. | — | |
|
| 3 | 93210-10003-00 | . .O-Ring | 2 шт. | — | |
|
| 4 | 99530-10116-00 | . Pin, Dowel | 2 шт. | — | |
|
| 5 | 1D7-15163-00-00 | Housing, Bearing 1 | 1 шт. | — | |
|
| 6 | 93306-00006-00 | Bearing | 1 шт. | — | |
|
| 7 | 90110-06174-00 | Bolt, Hexagon Socket Head | 3 шт. | — | |
|
| 12 | 1D7-15191-00-00 | Plate | 1 шт. | — | |
|
| 13 | 90110-06161-00 | Bolt, Hexagon Socket Head | 6 шт. | — | |
|
| 14 | 1D7-15412-00-00 | Cover, Oil Pump | 1 шт. | — | |
|
| 15 | 90110-06168-00 | Bolt, Hexagon Socket Head | 3 шт. | — | |
|
| 16 | 1D7-15189-00-00 | Plug | 2 шт. | — | |
|
| 17 | 93210-07435-00 | O-Ring | 2 шт. | — | |
|
| 18 | 90149-06158-00 | Screw | 1 шт. | — | |
|
| 18 | 90149-06158-00 | Screw | 1 шт. | — | |
|
| 22 | 4H7-15189-00-00 | Plug | 1 шт. | — | |
|
| 23 | 93210-20003-00 | O-Ring | 1 шт. | — | |
|
| 24 | 90110-06300-00 | Bolt, Hexagon Socket Head | 8 шт. | — | |
|
| 25 | 90110-06094-00 | Bolt, Hexagon Socket Head | 4 шт. | — | |
|
| 26 | 90110-06297-00 | Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 27 | 90110-06296-00 | Bolt, Hexagon Socket Head | 4 шт. | — | |
|
| 28 | 90110-06298-00 | Bolt, Hexagon Socket Head | 4 шт. | — | |
|
| 29 | 90110-08072-00 | Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 30 | 90110-08073-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 31 | 90110-08079-00 | Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 31 | 90110-08079-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 31 | 90110-08079-00 | Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 32 | 90430-08119-00 | Gasket | 1 шт. | — | |
|
| 32 | 90430-08119-00 | Gasket | 1 шт. | — | |
|
| 32 | 90430-08119-00 | Gasket | 2 шт. | — | |
|
| 33 | 91314-06010-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 34 | 90430-06014-00 | .Gasket | 1 шт. | — | |
|
| 34 | 90430-06014-00 | .Gasket | 2 шт. | — | |
|
| 34 | 90430-06014-00 | .Gasket | 1 шт. | — | |
|
