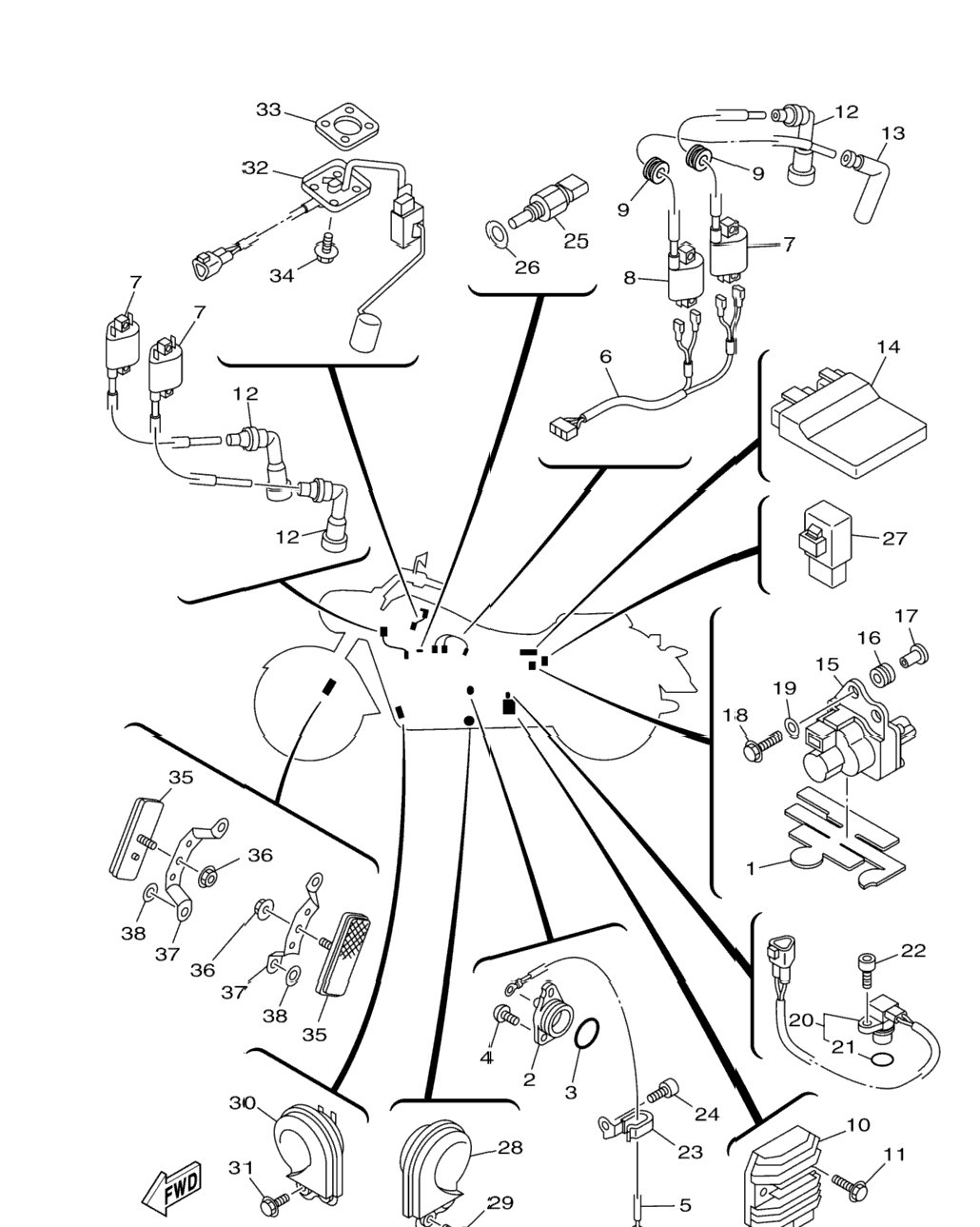

| 1 | 1D7-2177M-00-00 | Damper, Locating 3 | 1 шт. | — | |
|
| 2 | 1AE-82540-00-00 | Neutral Switch Assy | 1 шт. | — | |
|
| 3 | 93210-29196-00 | O-Ring | 1 шт. | — | |
|
| 4 | 90149-06069-00 | Screw | 2 шт. | — | |
|
| 5 | 5C7-82509-00-00 | Wire, Sub Lead | 1 шт. | — | |
|
| 6 | 1D7-82509-50-00 | Wire, Sub Lead | 1 шт. | — | |
|
| 7 | 1D7-82310-01-00 | Ignition Coil Assy | 3 шт. | — | |
|
| 8 | 1D7-82310-10-00 | Ignition Coil Assy | 1 шт. | — | |
|
| 9 | 90480-14014-00 | Grommet | 2 шт. | — | |
|
| 10 | 1D7-81960-00-00 | Rectifier & Regulator Assy | 1 шт. | — | |
|
| 11 | 95022-06025-00 | Bolt, Flange | 2 шт. | — | |
|
| 12 | 1D7-82370-00-00 | Plug Cap Assy | 3 шт. | — | |
|
| 13 | 5VK-82370-00-00 | Plug Cap Assy | 1 шт. | — | |
|
| 14 | 1D7-8591A-10-00 | Engine Control Unit Assy | 1 шт. | — | |
|
| 15 | 5VY-85820-00-00 | Servo Motor Assy | 1 шт. | — | |
|
| 16 | 90480-14005-00 | .Grommet | 2 шт. | — | |
|
| 17 | 90387-063E6-00 | .Collar | 2 шт. | — | |
|
| 18 | 95022-06025-00 | Bolt, Flange | 2 шт. | — | |
|
| 19 | 90201-06M31-00 | .Washer, Plate | 2 шт. | — | |
|
| 20 | 1D7-83755-00-00 | Sensor, Speed | 1 шт. | — | |
|
| 21 | 4D9-81168-00-00 | . .O-Ring | 1 шт. | — | |
|
| 22 | 90110-06168-00 | Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 23 | 90465-08127-00 | Clamp | 1 шт. | — | |
|
| 24 | 90110-06227-00 | Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 25 | 5PX-83591-00-00 | Thermo Unit | 1 шт. | — | |
|
| 26 | 90201-12172-00 | Washer, Plate | 1 шт. | — | |
|
| 27 | 1D7-83350-00-00 | Flasher Relay Assy | 1 шт. | — | |
|
| 28 | 1D7-83371-00-00 | Horn | 1 шт. | — | |
|
| 29 | 90119-06001-00 | Bolt, With Washer | 2 шт. | — | |
|
| 30 | 1D7-83371-10-00 | Horn | 1 шт. | — | |
|
| 31 | 90119-06001-00 | Bolt, With Washer | 2 шт. | — | |
|
| 32 | 1D7-85752-00-00 | Sender Unit Assy, Fuel Meter | 1 шт. | — | |
|
| 33 | 5G3-85753-00-00 | .Gasket, Sender Unit | 1 шт. | — | |
|
| 34 | 90119-05071-00 | Bolt, With Washer | 4 шт. | — | |
|
| 35 | 11H-85110-01-00 | Reflector Assy | 2 шт. | — | |
|
| 36 | 95707-05500-00 | Nut, Flange | 2 шт. | — | |
|
| 37 | 1D7-85112-00-00 | Bracket, Reflector 1 | 2 шт. | — | |
|
| 38 | 90201-112U6-00 | Washer, Plate | 4 шт. | — | |
|
