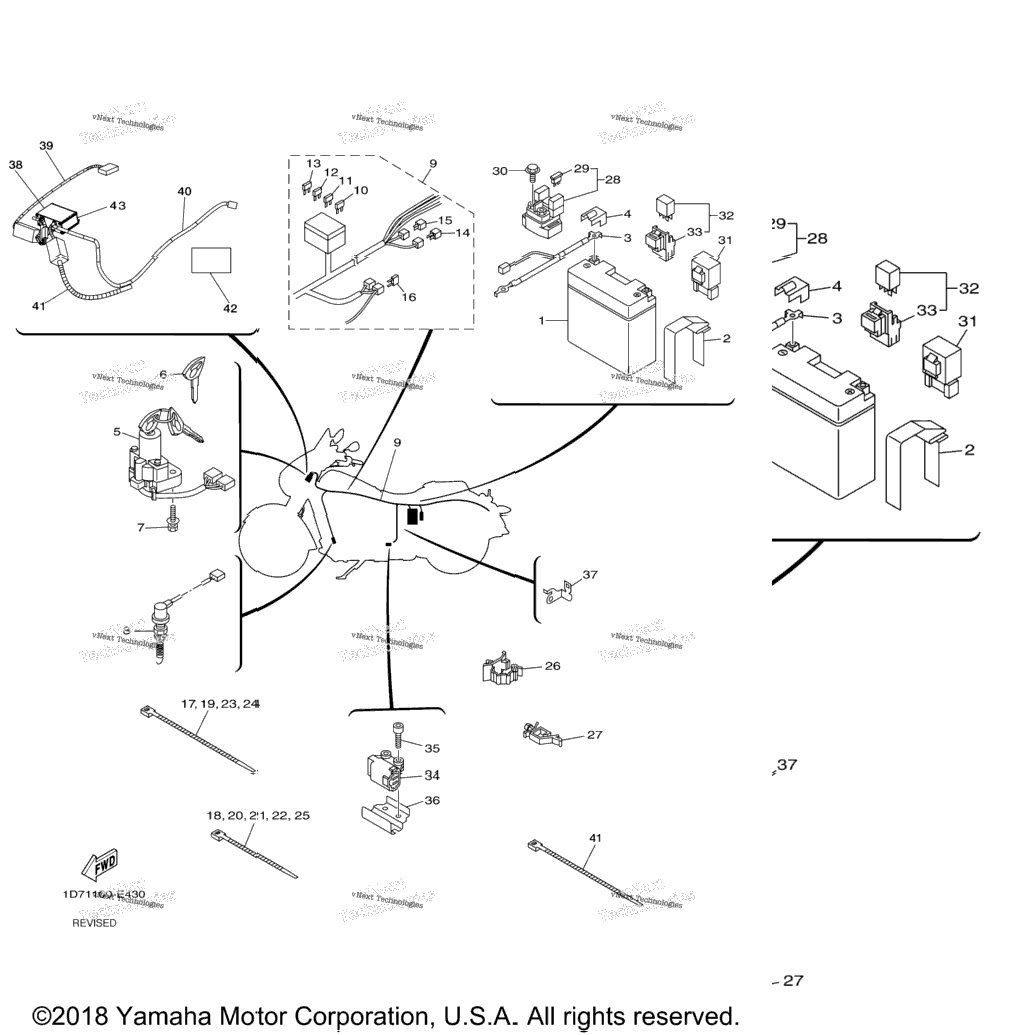

| 1 | 5EA-82100-11-00 | Battery Assy (Gs Gt14b-4) SUB: BTY-YT14B-BS-00 | 1 шт. | — | |
|
| 2 | 4AS-82131-01-00 | Band, Battery | 1 шт. | — | |
|
| 3 | 1D7-82116-00-00 | Wire, Minus Lead | 1 шт. | — | |
|
| 4 | 1D7-82119-00-00 | Cover, Lead Wire | 1 шт. | — | |
|
| 5 | 1D7-82501-10-00 | Main Switch Steering Lock | 1 шт. | — | |
|
| 6 | 5PX-82511-09-00 | Blank Key AP | 1 шт. | — | |
|
| 7 | 90109-08195-00 | Bolt | 2 шт. | — | |
|
| 8 | 1D7-82530-00-00 | Stop Switch Assy | 1 шт. | — | |
|
| 9 | 1D7-82590-40-00 | Wire Harness Assy | 1 шт. | — | |
|
| 10 | 5JJ-82151-70-00 | . .Fuse (25A-Bl) | 2 шт. | — | |
|
| 11 | 5JJ-82151-30-00 | . .Fuse (10A-Bl) | 5 шт. | — | |
|
| 12 | 5JJ-82151-20-00 | . .Fuse (20A-Bl) | 2 шт. | — | |
|
| 13 | 5JJ-H554E-V0-00 | . Fuse (5A-Bl) | 0 шт. | — | |
|
| 14 | 3XV-81980-00-00 | . .Diode Assy | 1 шт. | — | |
|
| 15 | 3WP-81980-00-00 | . .Diode Assy | 1 шт. | — | |
|
| 16 | 5JW-82151-10-00 | . .Fuse (50A) | 1 шт. | — | |
|
| 17 | 3MA-82591-00-00 | Band | 1 шт. | — | |
|
| 18 | 1UA-82591-00-00 | . Band | 3 шт. | — | |
|
| 19 | 3MA-82591-00-00 | Band | 5 шт. | — | |
|
| 20 | 1UA-82591-00-00 | . Band | 8 шт. | — | |
|
| 21 | 1UA-82591-00-00 | . Band | 2 шт. | — | |
|
| 22 | 1UA-82591-00-00 | . Band | 8 шт. | — | |
|
| 23 | 3MA-82591-00-00 | . Band | 1 шт. | — | |
|
| 24 | 3MA-82591-00-00 | . Band | 1 шт. | — | |
|
| 25 | 1UA-82591-00-00 | . Band | 1 шт. | — | |
|
| 26 | 90464-20002-00 | Clamp | 2 шт. | — | |
|
| 27 | 90464-16021-00 | Clamp | 2 шт. | — | |
|
| 28 | 5JW-81940-02-00 | Starter Relay Assy (Rc19-032) | 1 шт. | — | |
|
| 29 | 36Y-82151-00-00 | . .Fuse (15A-Blue) | 2 шт. | — | |
|
| 30 | 95027-06008-00 | Bolt, Flange | 2 шт. | — | |
|
| 31 | 5VK-81950-30-00 | Relay Assy (5Vk-30) | 0 шт. | — | |
|
| 32 | 5EA-81950-20-00 | Relay Assy (5Ea-02) | 1 шт. | — | |
|
| 33 | 5EA-81952-00-00 | . .Holder, Relay | 1 шт. | — | |
|
| 34 | 5PS-82576-01-00 | Sensor, Lean Angle | 1 шт. | — | |
|
| 35 | 90110-04003-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 36 | 1D7-82388-00-00 | Plate | 1 шт. | — | |
|
| 37 | 1D7-82581-00-00 | Stay, Cord Clamp | 1 шт. | — | |
|
| 38 | 2C5-H8132-V0-00 | B-Box, Amp | 0 шт. | — | |
|
| 39 | 2C5-H8146-V0-00 | I-Pod Cable | 0 шт. | — | |
|
| 40 | 2C5-H2105-V0-00 | Harness, Wire | 0 шт. | — | |
|
| 41 | 2C5-H2130-V0-00 | Band SET OF 12 BANDS | 0 шт. | — | |
|
| 42 | 2C5-H2178-V0-00 | Label, Fuse Box | 0 шт. | — | |
|
| 43 | 2C5-H8132-T0-00 | B-Box, Amp | 0 шт. | — | |
|
