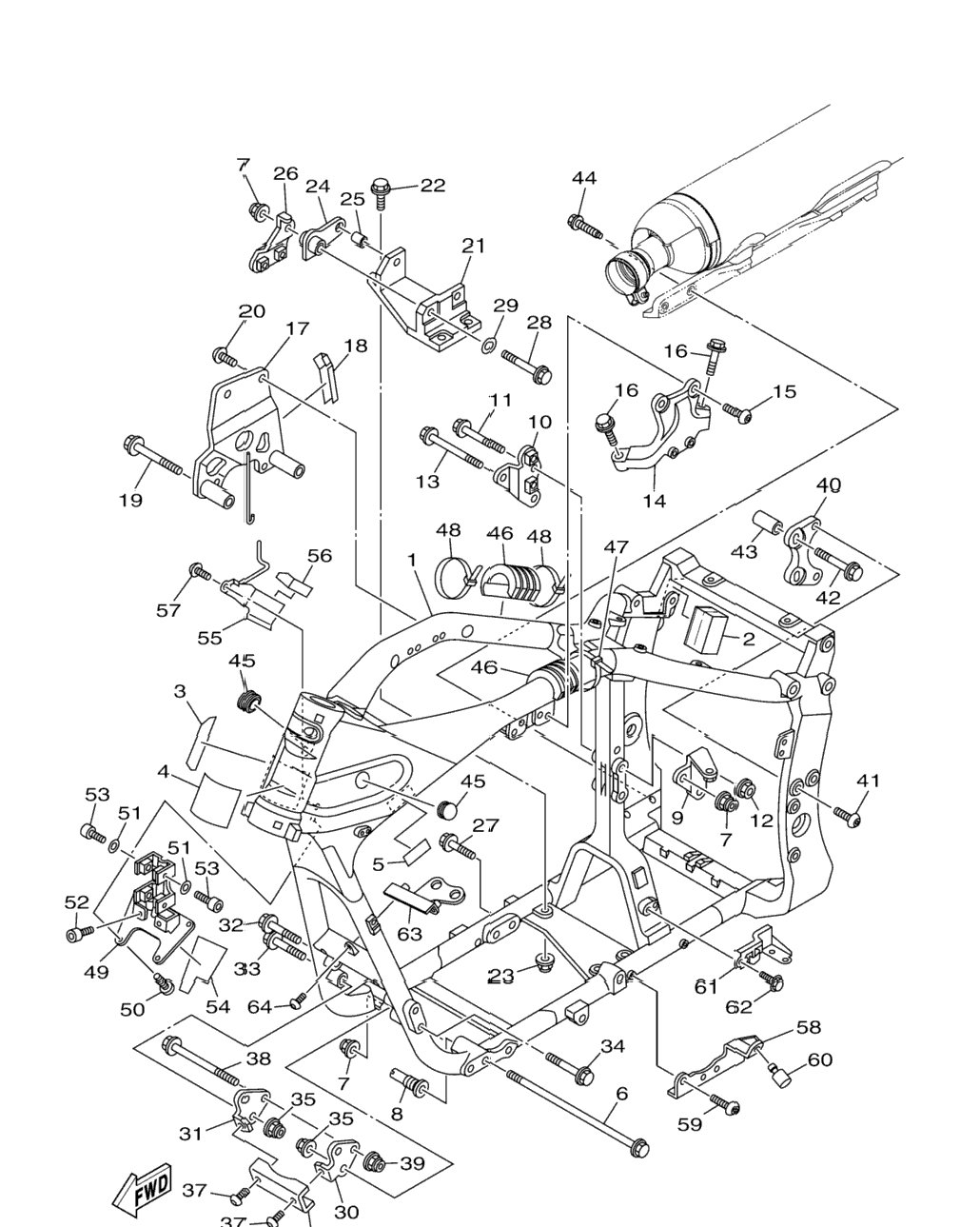

| 1 | 1D7-21110-01-00 | Frame Comp | 0 шт. | — | |
|
| 2 | 1D7-21779-00-00 | Damper, Locating 2 | 1 шт. | — | |
|
| 3 | 1D7-24141-00-00 | Protector, Fuel Tank | 1 шт. | — | |
|
| 4 | 1D7-2639G-00-00 | Seal | 1 шт. | — | |
|
| 5 | 5PX-21268-00-00 | Seal | 1 шт. | — | |
|
| 6 | 90105-126A6-00 | Bolt, Flange | 1 шт. | — | |
|
| 7 | 95602-12200-00 | Nut, Self-Locking | 3 шт. | — | |
|
| 8 | 5PX-21495-01-00 | Bolt, Engine Adjusting | 1 шт. | — | |
|
| 9 | 1D7-21315-00-00 | Stay, Engine 1 | 1 шт. | — | |
|
| 10 | 5PX-21316-00-00 | Stay, Engine 2 | 1 шт. | — | |
|
| 11 | 90105-10170-00 | Bolt, Flange | 2 шт. | — | |
|
| 12 | 95602-10200-00 | Nut, S/L Flange | 2 шт. | — | |
|
| 13 | 90105-12309-00 | Bolt, Flange | 1 шт. | — | |
|
| 14 | 1D7-21317-00-00 | Stay, Engine 3 | 1 шт. | — | |
|
| 15 | 90111-10003-00 | Bolt, Hex. Socket Button | 2 шт. | — | |
|
| 16 | 90105-12041-00 | Bolt, Flange | 2 шт. | — | |
|
| 17 | 1D7-21319-10-00 | Stay, Engine 6 | 1 шт. | — | |
|
| 18 | 1D7-21669-00-00 | Seal | 1 шт. | — | |
|
| 19 | 90105-12038-00 | Bolt, Flange | 2 шт. | — | |
|
| 20 | 90111-10003-00 | Bolt, Hex. Socket Button | 2 шт. | — | |
|
| 21 | 1D7-21318-01-00 | Stay, Engine 4 | 1 шт. | — | |
|
| 22 | 95812-10030-00 | Bolt, Flange | 3 шт. | — | |
|
| 23 | 95602-10200-00 | Nut, S/L Flange | 3 шт. | — | |
|
| 24 | 1D7-2142G-00-00 | Stay 1 | 1 шт. | — | |
|
| 25 | 90387-12033-00 | Collar | 1 шт. | — | |
|
| 26 | 1D7-21387-00-00 | Stay, Engine 7 | 1 шт. | — | |
|
| 27 | 95812-10045-00 | Bolt, Flange | 2 шт. | — | |
|
| 28 | 90101-12025-00 | Bolt | 1 шт. | — | |
|
| 29 | 90201-12045-00 | Washer, Plate | 1 шт. | — | |
|
| 30 | 1D7-2142H-01-00 | Stay 2 | 0 шт. | — | |
|
| 31 | 1D7-2142J-01-00 | Stay 3 | 0 шт. | — | |
|
| 32 | 90105-10049-00 | Bolt, Flange | 1 шт. | — | |
|
| 33 | 90105-10060-00 | Bolt, Flange | 1 шт. | — | |
|
| 34 | 90105-10167-00 | Bolt, Flange | 2 шт. | — | |
|
| 35 | 90185-10008-00 | Nut, Self-Locking | 4 шт. | — | |
|
| 36 | 1D7-2115L-00-00 | Bracket, Member 1 | 1 шт. | — | |
|
| 37 | 90111-08039-00 | Bolt, Hex. Socket Button | 2 шт. | — | |
|
| 38 | 90105-12016-00 | Bolt, Flange | 1 шт. | — | |
|
| 39 | 90185-12002-00 | Nut, Self-Locking | 1 шт. | — | |
|
| 40 | 1D7-2137F-00-00 | Stay 1 | 1 шт. | — | |
|
| 41 | 90111-10009-00 | Bolt, Hex. Socket Button | 2 шт. | — | |
|
| 42 | 95812-10075-00 | Bolt, Flange | 2 шт. | — | |
|
| 43 | 1D7-21116-01-00 | Collar | 2 шт. | — | |
|
| 44 | 90105-10165-00 | Bolt, Flange | 2 шт. | — | |
|
| 45 | 90338-27009-00 | Plug | 2 шт. | — | |
|
| 46 | 4YR-24183-01-00 | Damper, Locating 3 | 2 шт. | — | |
|
| 47 | 90464-80002-00 | Clamp | 1 шт. | — | |
|
| 48 | 90464-80002-00 | Clamp | 2 шт. | — | |
|
| 49 | 1D7-21359-00-00 | Bracket, Coil | 1 шт. | — | |
|
| 50 | 92012-06014-00 | Bolt, Button Head | 4 шт. | — | |
|
| 51 | 90201-06045-00 | Washer, Plate | 2 шт. | — | |
|
| 52 | 91312-06020-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 53 | 91380-06020-00 | .Bolt | 4 шт. | — | |
|
| 54 | 1D7-2139X-00-00 | Damper | 1 шт. | — | |
|
| 55 | 1D7-21598-00-00 | Holder, Wire 2 | 1 шт. | — | |
|
| 56 | 1D7-21269-00-00 | Seal | 1 шт. | — | |
|
| 57 | 90111-06010-00 | Bolt, Hex. Socket Button | 1 шт. | — | |
|
| 58 | 1D7-21343-00-00 | Bracket, Horn | 1 шт. | — | |
|
| 59 | 90111-08027-00 | Bolt, Hex. Socket Button | 2 шт. | — | |
|
| 60 | 1D7-27114-00-00 | .Stopper, Main Stand | 1 шт. | — | |
|
| 61 | 1D7-21453-00-00 | Bracket, Switch | 1 шт. | — | |
|
| 62 | 95027-06016-00 | Bolt, Flange | 1 шт. | — | |
|
| 63 | 1D7-2136H-00-00 | Stay, Oil Cooler | 1 шт. | — | |
|
| 64 | 92017-06020-00 | Bolt, Button Head | 2 шт. | — | |
|
