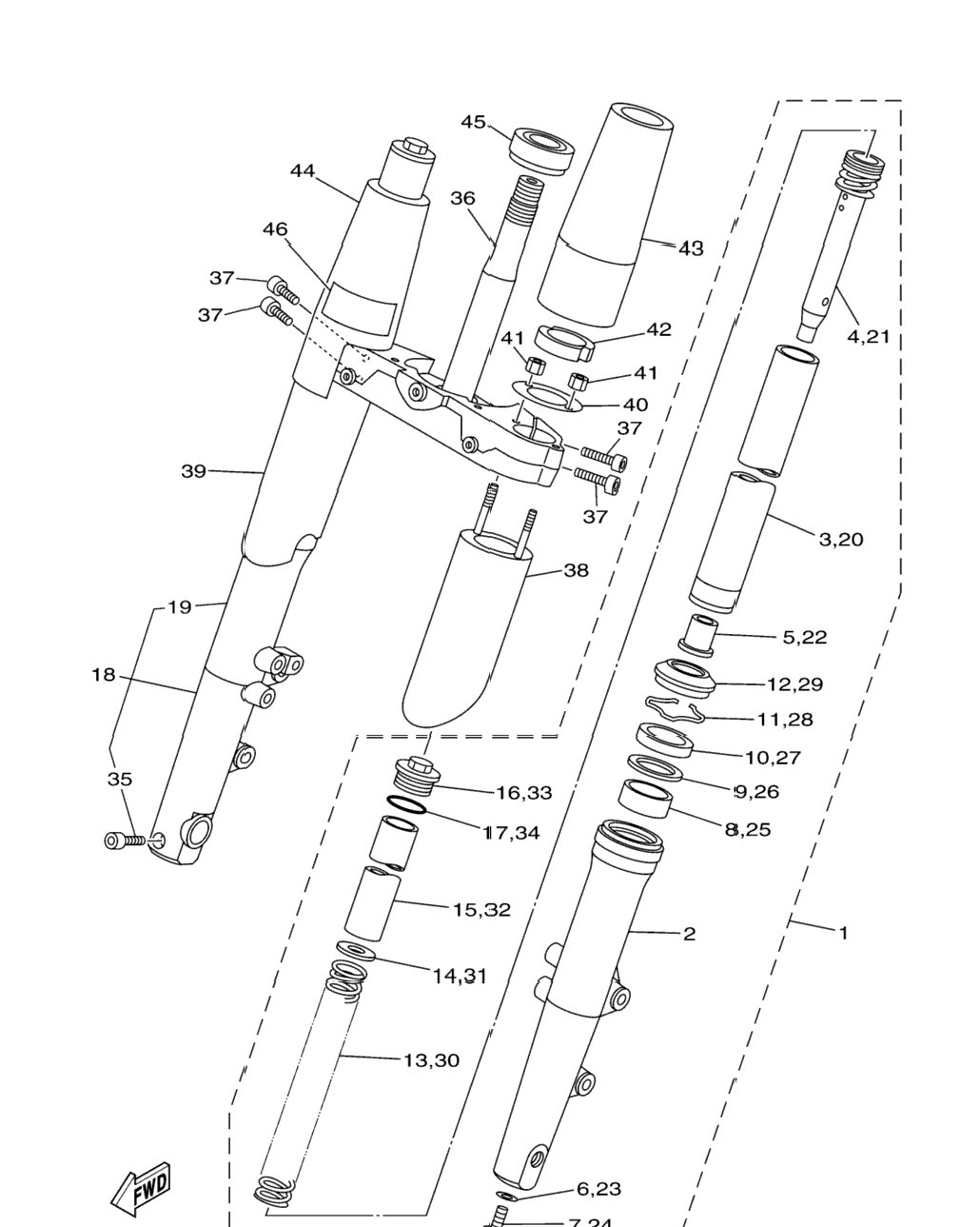

| 1 | 1D7-23102-21-00 | Front Fork Assy (L.H) | 1 шт. | — | |
|
| 2 | 1D7-23126-21-00 | . .Tube, Outer (L.H) | 1 шт. | — | |
|
| 3 | 1D7-23110-00-00 | . Inner Tube Comp. 1 | 1 шт. | — | |
|
| 4 | 1D7-23170-00-00 | . .Cylinder Comp., Front Fork | 1 шт. | — | |
|
| 5 | 1D7-23173-00-00 | . .Spindle, Taper | 1 шт. | — | |
|
| 6 | 2K8-23158-L0-00 | . .Gasket | 1 шт. | — | |
|
| 7 | 3R4-23181-L0-00 | . .Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 8 | 5TJ-23125-50-00 | . .Metal, Slide 1 | 1 шт. | — | |
|
| 9 | 4SS-23146-L0-00 | . .Washer, Oil Seal | 1 шт. | — | |
|
| 10 | 1D7-23145-00-00 | . Oil Seal INCL. IN FORK SEAL KIT | 1 шт. | — | |
|
| 11 | 4SS-23153-L0-00 | . .Ring, Snap | 1 шт. | — | |
|
| 12 | 1D7-23144-00-00 | . Seal, Dust INCL. IN FORK SEAL KIT | 1 шт. | — | |
|
| 13 | 1D7-23141-00-00 | . .Spring, Front Fork | 1 шт. | — | |
|
| 14 | 1D7-23149-00-00 | . .Washer, Spring Upper | 1 шт. | — | |
|
| 15 | 1D7-23118-00-00 | . .Spacer | 1 шт. | — | |
|
| 16 | 1D7-23111-00-00 | . .Bolt, Cap | 1 шт. | — | |
|
| 17 | 1D7-23188-00-00 | . ..O-Ring | 1 шт. | — | |
|
| 18 | 1D7-23103-21-00 | Front Fork Assy (R.H) | 1 шт. | — | |
|
| 19 | 1D7-23136-21-00 | . .Tube, Outer (R.H) | 1 шт. | — | |
|
| 20 | 1D7-23110-00-00 | . Inner Tube Comp. 1 | 1 шт. | — | |
|
| 21 | 1D7-23170-00-00 | . .Cylinder Comp., Front Fork | 1 шт. | — | |
|
| 22 | 1D7-23173-00-00 | . .Spindle, Taper | 1 шт. | — | |
|
| 23 | 2K8-23158-L0-00 | . .Gasket | 1 шт. | — | |
|
| 24 | 3R4-23181-L0-00 | . .Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 25 | 5TJ-23125-50-00 | . .Metal, Slide 1 | 1 шт. | — | |
|
| 26 | 4SS-23146-L0-00 | . .Washer, Oil Seal | 1 шт. | — | |
|
| 27 | 1D7-23145-00-00 | . Oil Seal INCL. IN FORK SEAL KIT | 1 шт. | — | |
|
| 28 | 4SS-23153-L0-00 | . .Ring, Snap | 1 шт. | — | |
|
| 29 | 1D7-23144-00-00 | . Seal, Dust INCL. IN FORK SEAL KIT | 1 шт. | — | |
|
| 30 | 1D7-23141-00-00 | . .Spring, Front Fork | 1 шт. | — | |
|
| 31 | 1D7-23149-00-00 | . .Washer, Spring Upper | 1 шт. | — | |
|
| 32 | 1D7-23118-00-00 | . .Spacer | 1 шт. | — | |
|
| 33 | 1D7-23111-00-00 | . .Bolt, Cap | 1 шт. | — | |
|
| 34 | 1D7-23188-00-00 | . ..O-Ring | 1 шт. | — | |
|
| 35 | 91314-08040-00 | . .Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 36 | 1D7-23400-00-00 | Steering Assy | 0 шт. | — | |
|
| 37 | 91314-08025-00 | Bolt, Hexagon Socket Head | 4 шт. | — | |
|
| 38 | 1D7-23123-30-00 | Cover, Under 1 | 1 шт. | — | |
|
| 39 | 1D7-23133-30-00 | Cover, Under 2 | 1 шт. | — | |
|
| 40 | 1D7-23165-00-00 | Washer, Felt | 2 шт. | — | |
|
| 41 | 1D7-23357-00-00 | Nut | 4 шт. | — | |
|
| 42 | 1D7-23163-00-00 | Gasket | 2 шт. | — | |
|
| 43 | 1D7-23121-30-00 | Cover, Upper 1 | 1 шт. | — | |
|
| 44 | 1D7-23131-30-00 | Cover, Upper 2 | 1 шт. | — | |
|
| 45 | 93332-00096-00 | Bearing | 1 шт. | — | |
|
| 46 | 4D5-23844-00-00 | Seal | 1 шт. | — | |
|
| 47 | 1D7-W003B-00-00 | Fork Seal Kit NOT SHOWN | 1 шт. | — | |
|
