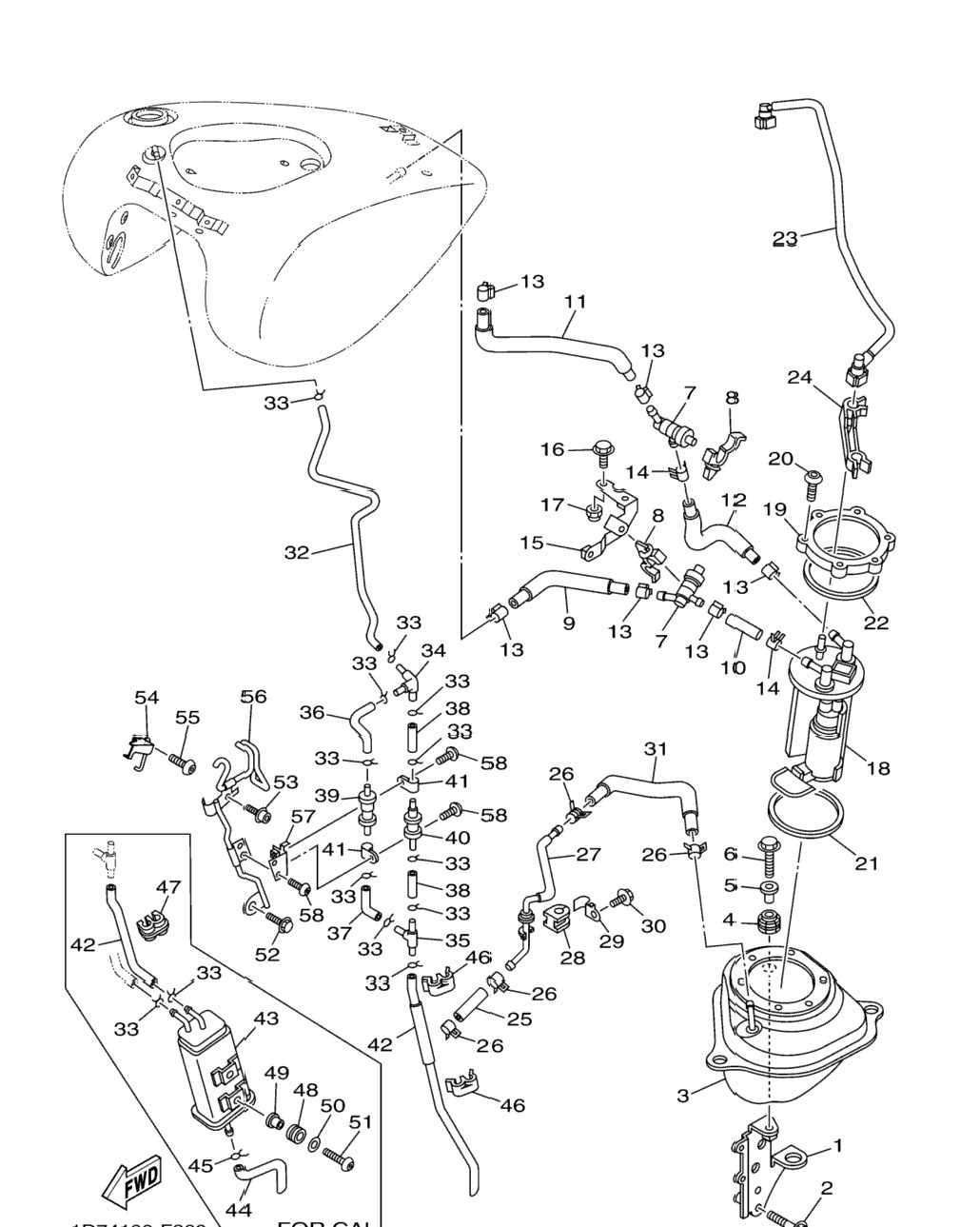

| 1 | 1D7-2172E-00-00 | Stay, Side Cover 1 | 1 шт. | — | |
|
| 2 | 95022-08055-00 | Bolt, Flange | 2 шт. | — | |
|
| 3 | 1D7-24280-00-00 | Sub Fuel Tank | 1 шт. | — | |
|
| 4 | 1D7-24185-00-00 | Damper, Locating 5 | 3 шт. | — | |
|
| 5 | 90387-0700G-00 | Collar | 3 шт. | — | |
|
| 6 | 95812-06030-00 | Bolt, Flange | 3 шт. | — | |
|
| 7 | 1D7-24305-00-00 | Fuel Pipe Joint Comp. 2 | 2 шт. | — | |
|
| 8 | 90464-20010-00 | Clamp | 2 шт. | — | |
|
| 9 | 5C7-24311-00-00 | Pipe, Fuel 1 | 1 шт. | — | |
|
| 10 | 5C7-24312-00-00 | Pipe 2 | 1 шт. | — | |
|
| 11 | 5C7-24313-00-00 | Pipe 3 | 1 шт. | — | |
|
| 12 | 5C7-24314-00-00 | Pipe 4 | 1 шт. | — | |
|
| 13 | 5PX-2411M-00-00 | Clip | 6 шт. | — | |
|
| 14 | 90467-16009-00 | Clip | 2 шт. | — | |
|
| 15 | 1D7-2419F-00-00 | Bracket, Canistor | 1 шт. | — | |
|
| 16 | 90119-05004-00 | Bolt, With Washer | 2 шт. | — | |
|
| 17 | 95302-05800-00 | Nut, Crown | 1 шт. | — | |
|
| 18 | 1D7-13907-00-00 | Fuel Pump Comp | 1 шт. | — | |
|
| 19 | 5PX-24491-00-00 | Bracket, Fuel Pump | 1 шт. | — | |
|
| 20 | 90111-05026-00 | Bolt, Hex. Socket Button | 6 шт. | — | |
|
| 21 | 5PX-24486-10-00 | O-Ring | 1 шт. | — | |
|
| 22 | 5PX-24145-00-00 | Plate, Damper | 1 шт. | — | |
|
| 23 | 1D7-13971-00-00 | Pipe, Fuel 1 | 1 шт. | — | |
|
| 24 | 90464-15004-00 | Clamp | 1 шт. | — | |
|
| 25 | 5C7-13973-00-00 | Pipe, Fuel 3 | 1 шт. | — | |
|
| 26 | 90467-13071-00 | Clip | 4 шт. | — | |
|
| 27 | 1D7-14295-00-00 | Pipe, Fuel | 1 шт. | — | |
|
| 28 | 5PX-14435-00-00 | Grommet | 1 шт. | — | |
|
| 29 | 5PX-14261-01-00 | Holder | 1 шт. | — | |
|
| 30 | 95027-06010-00 | Bolt, Flange | 1 шт. | — | |
|
| 31 | 5C7-13974-00-00 | Pipe, Fuel 4 | 1 шт. | — | |
|
| 32 | 1D7-24316-20-00 | Pipe 6 | 1 шт. | — | |
|
| 33 | 90467-09002-00 | Clip FOR CAL | 0 шт. | — | |
|
| 34 | 90467-09002-00 | Clip FOR U49 | 11 шт. | — | |
|
| 35 | 90413-06002-00 | Way 3 | 1 шт. | — | |
|
| 36 | 90413-06031-00 | Way 3 | 1 шт. | — | |
|
| 37 | 1D7-24317-20-00 | Pipe 7 | 1 шт. | — | |
|
| 38 | 1D7-24321-10-00 | Pipe 10 | 1 шт. | — | |
|
| 39 | 1D7-24322-10-00 | Pipe 11 | 2 шт. | — | |
|
| 40 | 5PX-24180-00-00 | Roll Over Valve Assy | 1 шт. | — | |
|
| 41 | 4WM-24180-00-00 | Roll Over Valve Assy | 1 шт. | — | |
|
| 42 | 90461-15139-00 | Clamp | 2 шт. | — | |
|
| 43 | 1D7-24317-00-00 | Pipe 7 FOR U49 | 1 шт. | — | |
|
| 44 | 1D7-24324-10-00 | Pipe 13 FOR CAL | 0 шт. | — | |
|
| 45 | 1D7-24170-00-00 | Canister Assy FOR CAL | 0 шт. | — | |
|
| 46 | 1D7-24325-00-00 | Pipe 14 FOR CAL | 0 шт. | — | |
|
| 47 | 90467-10041-00 | Clip FOR CAL | 0 шт. | — | |
|
| 48 | 90464-10M38-00 | Clamp | 2 шт. | — | |
|
| 49 | 90464-10M57-00 | Clamp FOR CAL | 0 шт. | — | |
|
| 50 | 90480-13163-00 | Grommet FOR CAL | 0 шт. | — | |
|
| 51 | 90387-062L2-00 | Collar FOR CAL | 0 шт. | — | |
|
| 52 | 90201-06023-00 | Washer, Plate FOR CAL | 0 шт. | — | |
|
| 53 | 90111-06046-00 | Bolt, Hex. Socket Button FOR CAL | 0 шт. | — | |
|
| 54 | 90105-06791-00 | Bolt, Flange | 1 шт. | — | |
|
| 55 | 91314-06014-00 | Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 56 | 1D7-26328-10-00 | Guide, Cable | 1 шт. | — | |
|
| 57 | 90111-06010-00 | Bolt, Hex. Socket Button | 1 шт. | — | |
|
| 58 | 1D7-26292-00-00 | Stay | 1 шт. | — | |
|
| 59 | 1D7-26299-00-00 | Plate, Mirror Fitting 2 | 1 шт. | — | |
|
| 60 | 92017-05010-00 | Bolt, Button Head | 4 шт. | — | |
|
