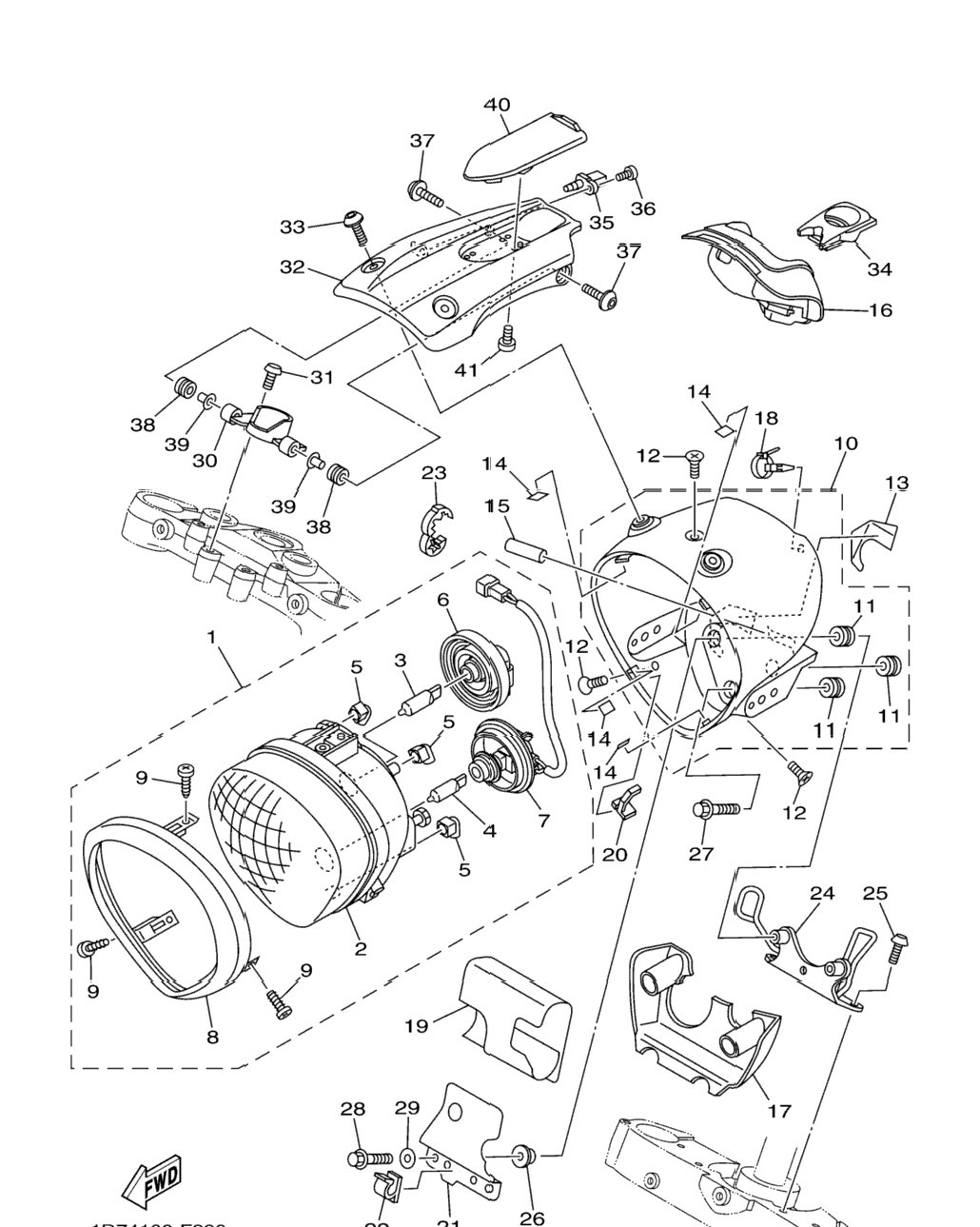

| 1 | 1D7-84310-00-00 | Headlight Unit Assy | 1 шт. | — | |
|
| 2 | 1D7-84320-00-00 | . .Lens Assy | 1 шт. | — | |
|
| 3 | 5YU-84314-00-00 | . .Bulb, Headlight (12V-51W Hb4 | 1 шт. | — | |
|
| 4 | 5PS-84314-00-00 | . .Bulb (12V-55W H7) HALOGEN | 1 шт. | — | |
|
| 5 | 1D7-84385-00-00 | . .Cap,1 | 3 шт. | — | |
|
| 6 | 5YU-84397-00-00 | . .Cover, Socket | 1 шт. | — | |
|
| 7 | 1D7-84340-00-00 | . .Socket Cord Assy 1 | 1 шт. | — | |
|
| 8 | 1D7-84315-00-00 | . .Rim, Headlight | 1 шт. | — | |
|
| 9 | 97702-40610-00 | . .Screw, Tapping | 3 шт. | — | |
|
| 10 | 1D7-84330-01-00 | Body Assy | 1 шт. | — | |
|
| 11 | 42X-84366-00-00 | . .Damper, Headlight 1 | 3 шт. | — | |
|
| 12 | 90152-05005-00 | Screw, Countersunk | 3 шт. | — | |
|
| 13 | 1D7-8413G-00-00 | Plate, Guide | 1 шт. | — | |
|
| 14 | 5JW-23844-00-00 | Seal | 4 шт. | — | |
|
| 15 | 90446-09002-00 | Hose | 1 шт. | — | |
|
| 16 | 1D7-84366-00-00 | Damper, Headlight 1 | 1 шт. | — | |
|
| 17 | 1D7-84367-00-00 | Damper, Headlight 2 | 1 шт. | — | |
|
| 18 | 90464-07012-00 | .Clamp | 1 шт. | — | |
|
| 19 | 1D7-8412H-00-00 | Stay Setting | 1 шт. | — | |
|
| 20 | 90465-04020-00 | Clamp | 1 шт. | — | |
|
| 21 | 1D7-8411H-00-00 | Plate, Stopper | 1 шт. | — | |
|
| 22 | 90464-09009-00 | .Clamp | 1 шт. | — | |
|
| 23 | 90464-13227-00 | Clamp | 1 шт. | — | |
|
| 24 | 1D7-84119-00-00 | Stay, Headlight 2 | 1 шт. | — | |
|
| 25 | 90111-06067-00 | Bolt, Hex. Socket Button | 2 шт. | — | |
|
| 26 | 90387-06175-00 | Collar | 1 шт. | — | |
|
| 27 | 95022-06025-00 | Bolt, Flange | 1 шт. | — | |
|
| 28 | 95022-06016-00 | Bolt, Flange | 2 шт. | — | |
|
| 29 | 90201-060A3-00 | Washer, Plate | 2 шт. | — | |
|
| 30 | 1D7-84118-00-00 | Stay, Headlight 1 | 1 шт. | — | |
|
| 31 | 92014-08016-00 | Bolt, Button Head | 2 шт. | — | |
|
| 32 | 1D7-84144-10-00 | Cover, Headlight | 1 шт. | — | |
|
| 33 | 90111-06068-00 | Bolt, Hex. Socket Button | 2 шт. | — | |
|
| 34 | 1D7-28346-00-00 | Mole 2 | 1 шт. | — | |
|
| 35 | 5YU-85886-00-00 | Sensor, Air Temperature | 1 шт. | — | |
|
| 36 | 98502-05014-00 | Screw, Pan Head | 1 шт. | — | |
|
| 37 | 90149-06104-00 | Screw | 2 шт. | — | |
|
| 38 | 90480-12007-00 | Grommet | 2 шт. | — | |
|
| 39 | 90560-06201-00 | Spacer | 2 шт. | — | |
|
| 40 | 1D7-82568-20-00 | Cover, Main Switch | 1 шт. | — | |
|
| 41 | 90110-04004-00 | Bolt, Hexagon Socket Head | 4 шт. | — | |
|
