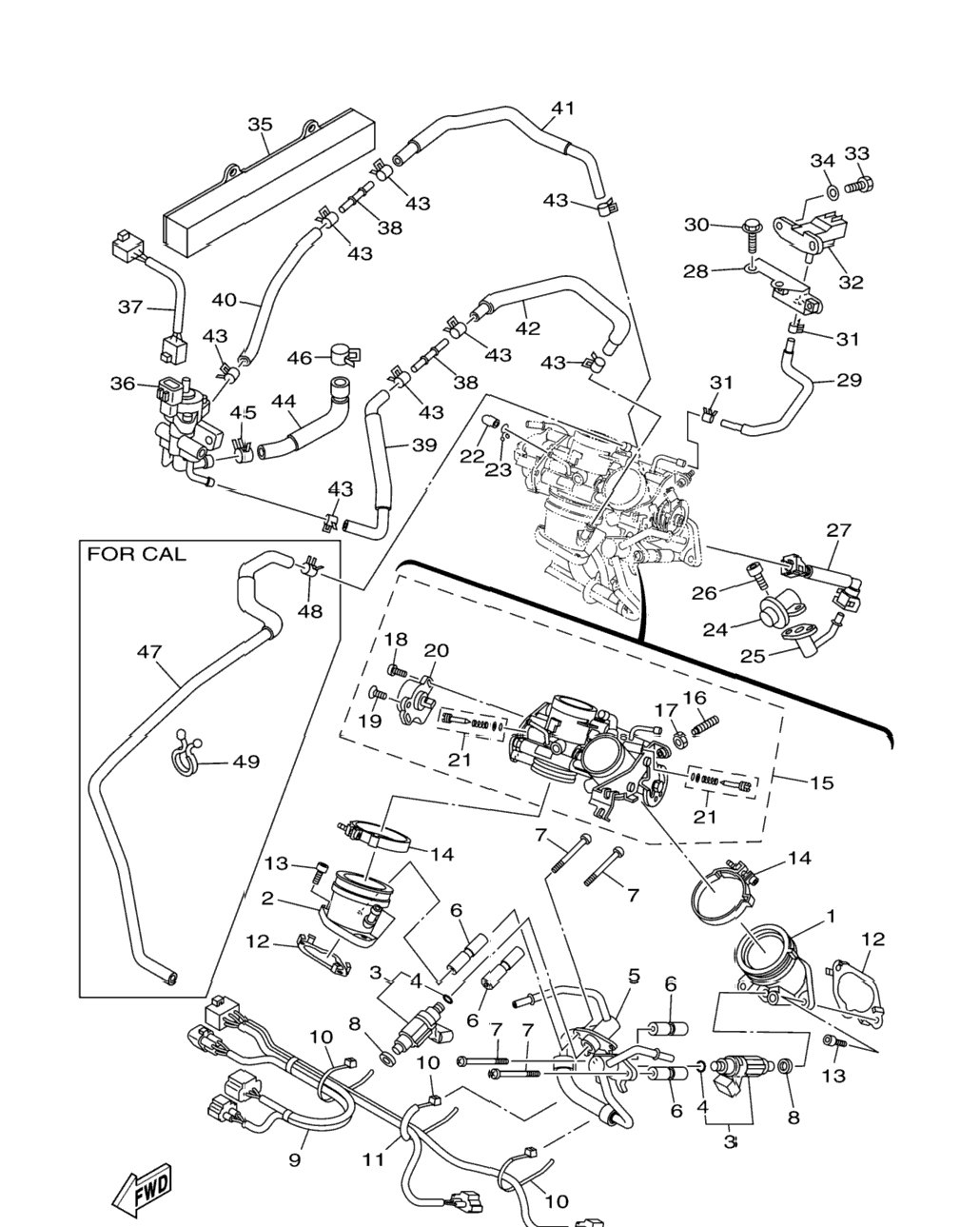

| 1 | 1D7-13586-00-00 | Joint, Carburetor 1 | 1 шт. | — | |
|
| 2 | 1D7-13596-00-00 | Joint, Carburetor 2 | 1 шт. | — | |
|
| 3 | 5YU-13761-00-00 | Injector | 2 шт. | — | |
|
| 4 | 5FL-14147-00-00 | . .O-Ring | 1 шт. | — | |
|
| 5 | 1D7-13930-00-00 | Pipe Inlet Assembly | 1 шт. | — | |
|
| 6 | 1D7-13716-00-00 | Collar | 4 шт. | — | |
|
| 7 | 98507-06050-00 | Screw, Pan Head | 4 шт. | — | |
|
| 8 | 8FP-13556-00-00 | .Rubber, Injector | 2 шт. | — | |
|
| 9 | 1D7-82509-40-00 | Wire, Sub Lead | 1 шт. | — | |
|
| 10 | 90464-55002-00 | Clamp | 3 шт. | — | |
|
| 11 | 90445-08039-00 | Hose | 1 шт. | — | |
|
| 12 | 1D7-14467-00-00 | Seal | 2 шт. | — | |
|
| 13 | 91314-06020-00 | Bolt, Hexagon Socket Head | 4 шт. | — | |
|
| 14 | 90450-62004-00 | Hose Clamp Assy | 2 шт. | — | |
|
| 15 | 1D7-13750-11-00 | Throttle Body Assy FOR CAL | 0 шт. | — | |
|
| 16 | 1D7-13750-01-00 | Throttle Body Assy FOR U49 | 1 шт. | — | |
|
| 17 | 3FV-14567-00-00 | . .Screw | 1 шт. | — | |
|
| 18 | 3JD-14161-00-00 | . .Nut, Cable Adjusting | 1 шт. | — | |
|
| 19 | 4KM-24453-00-00 | . .Screw | 2 шт. | — | |
|
| 20 | 98707-04010-00 | . .Screw, Flat Head | 1 шт. | — | |
|
| 21 | 8GL-85885-00-00 | . .Throttle Sensor Assy | 1 шт. | — | |
|
| 22 | 5JW-14104-00-00 | . .Air Screw Set | 2 шт. | — | |
|
| 23 | 895-14169-00-00 | .Cap | 1 шт. | — | |
|
| 24 | 8A7-14139-00-00 | .Clip, Pipe | 1 шт. | — | |
|
| 25 | 1D7-13906-00-00 | Regulator, Pressure | 1 шт. | — | |
|
| 26 | 1D7-13595-00-00 | Joint | 1 шт. | — | |
|
| 27 | 91312-05025-00 | .Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 28 | 1D7-13972-00-00 | Pipe, Fuel 2 | 1 шт. | — | |
|
| 29 | 1D7-14493-00-00 | Stay 1 | 1 шт. | — | |
|
| 30 | 1D7-13895-00-00 | Hose, Air | 1 шт. | — | |
|
| 31 | 95822-06012-00 | .Bolt, Flange | 0 шт. | — | |
|
| 32 | 90467-07093-00 | .Clip | 2 шт. | — | |
|
| 33 | 5PS-82380-00-00 | Sensor, Pressure | 1 шт. | — | |
|
| 34 | 97007-05016-00 | Bolt | 2 шт. | — | |
|
| 35 | 92907-05600-00 | Washer, Plate | 2 шт. | — | |
|
| 36 | 1D7-14426-00-00 | Damper 2 | 1 шт. | — | |
|
| 37 | 1D7-85880-00-00 | Linear, Control Valve | 0 шт. | — | |
|
| 38 | 1D7-82509-10-00 | Wire, Sub Lead | 1 шт. | — | |
|
| 39 | 5PX-14466-00-00 | Pipe | 2 шт. | — | |
|
| 40 | 1D7-13545-00-00 | Hose 1 | 1 шт. | — | |
|
| 41 | 1D7-13546-00-00 | Hose 2 | 1 шт. | — | |
|
| 42 | 1D7-13547-00-00 | Hose 3 | 1 шт. | — | |
|
| 43 | 1D7-13548-00-00 | Hose, Air 4 | 1 шт. | — | |
|
| 44 | 90467-10135-00 | Clip | 8 шт. | — | |
|
| 45 | 1D7-13897-00-00 | Pipe, Air | 1 шт. | — | |
|
| 46 | 90467-15001-00 | Clip | 1 шт. | — | |
|
| 47 | 90467-17089-00 | Clip | 1 шт. | — | |
|
| 48 | 1D7-14349-00-00 | Pipe FOR CAL | 0 шт. | — | |
|
| 49 | 90467-09037-00 | Clip FOR CAL | 0 шт. | — | |
|
| 50 | 90464-23041-00 | Clamp FOR CAL | 0 шт. | — | |
|
