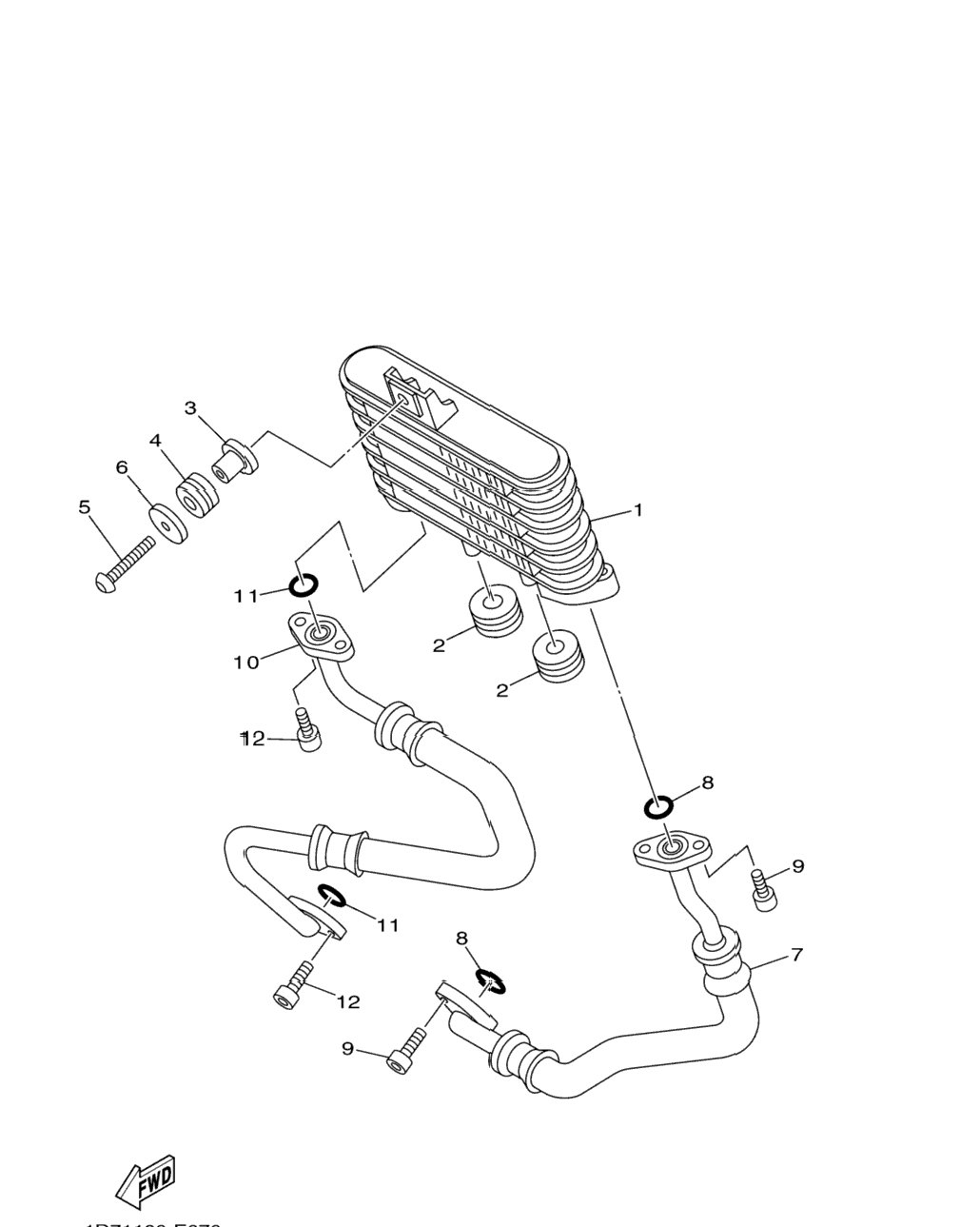

| 1 | 1D7-13470-00-00 | Oil Cooler Assy | 1 шт. | — | |
|
| 2 | 90480-15235-00 | Grommet | 2 шт. | — | |
|
| 3 | 90387-063L7-00 | Collar | 1 шт. | — | |
|
| 4 | 90480-14532-00 | Grommet | 1 шт. | — | |
|
| 5 | 92017-06030-00 | .Bolt, Button Head | 1 шт. | — | |
|
| 6 | 90201-064K6-00 | Washer, Plate | 1 шт. | — | |
|
| 7 | 1D7-1316F-01-00 | Hose, Oil 1 | 1 шт. | — | |
|
| 10 | 1D7-1316G-00-00 | Hose, Oil 2 | 1 шт. | — | |
|
| 11 | 93210-13361-00 | O-Ring | 2 шт. | — | |
|
| 11 | 93210-13361-00 | O-Ring | 2 шт. | — | |
|
| 12 | 91314-06016-00 | Bolt, Hexagon Socket Head | 4 шт. | — | |
|
| 12 | 91314-06016-00 | Bolt, Hexagon Socket Head | 4 шт. | — | |
|
