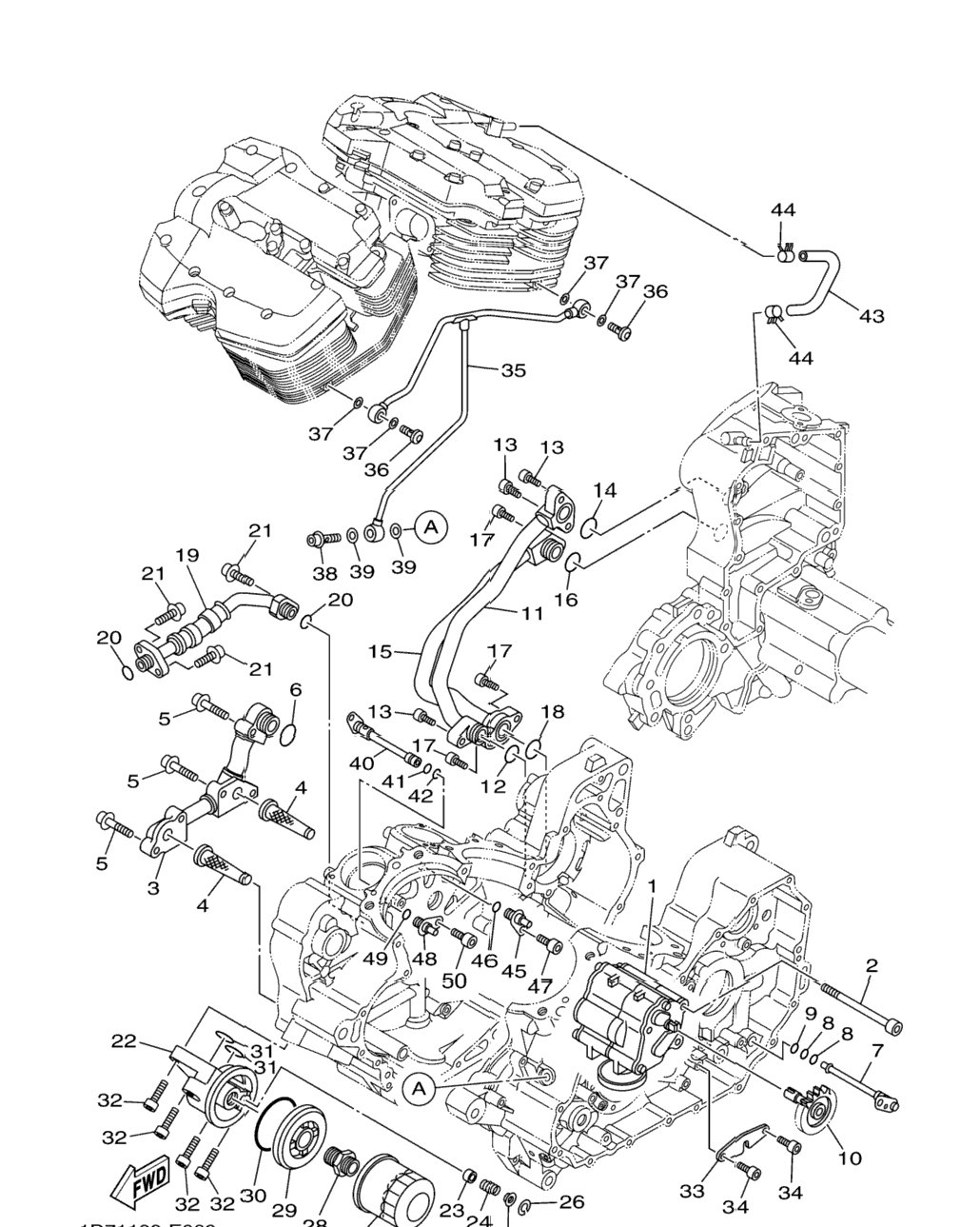

| 1 | 1D7-13300-00-00 | Oil Pump Assy | 1 шт. | — | |
|
| 2 | 90110-08055-00 | Bolt, Hexagon Socket Head | 3 шт. | — | |
|
| 3 | 1D7-13406-00-00 | Oil Pipe Comp. 2 | 1 шт. | — | |
|
| 4 | 1D7-13415-00-00 | Seal, Oil Strainer | 2 шт. | — | |
|
| 5 | 90110-06300-00 | Bolt, Hexagon Socket Head | 5 шт. | — | |
|
| 7 | 5C7-13171-00-00 | Pipe, Delivery 2 | 1 шт. | — | |
|
| 8 | 93210-09350-00 | O-Ring | 2 шт. | — | |
|
| 10 | 1D7-13360-00-00 | Driven Gear Assy | 1 шт. | — | |
|
| 11 | 1D7-13416-00-00 | Pipe, Oil 1 | 1 шт. | — | |
|
| 15 | 1D7-13418-00-00 | Pipe, Oil 2 | 1 шт. | — | |
|
| 16 | 93210-21631-00 | O-Ring | 1 шт. | — | |
|
| 16 | 93210-21631-00 | O-Ring | 1 шт. | — | |
|
| 16 | 93210-21631-00 | O-Ring | 1 шт. | — | |
|
| 17 | 91314-06025-00 | Bolt, Hexagon Socket Head | 3 шт. | — | |
|
| 17 | 91314-06025-00 | Bolt, Hexagon Socket Head | 3 шт. | — | |
|
| 18 | 93210-18006-00 | O-Ring | 1 шт. | — | |
|
| 18 | 93210-18006-00 | O-Ring | 1 шт. | — | |
|
| 19 | 1D7-13161-00-00 | Pipe, Delivery 1 | 1 шт. | — | |
|
| 20 | 93210-13657-00 | O-Ring | 2 шт. | — | |
|
| 21 | 90110-06195-00 | Bolt, Hexagon Socket Head | 3 шт. | — | |
|
| 22 | 1D7-13461-10-00 | Plate, Adaptor | 1 шт. | — | |
|
| 23 | 2H9-13493-00-00 | Plunger | 1 шт. | — | |
|
| 24 | 90501-12413-00 | Spring, Compression | 1 шт. | — | |
|
| 25 | 90209-06173-00 | Washer | 1 шт. | — | |
|
| 26 | 99009-17500-00 | Circlip | 1 шт. | — | |
|
| 27 | 5GH-13440-20-00 | Element Assy, Oil Cleaner | 1 шт. | — | |
|
| 28 | 90401-18002-00 | Bolt, Union | 1 шт. | — | |
|
| 29 | 1D7-13489-10-00 | Plate | 1 шт. | — | |
|
| 30 | 93210-626A7-00 | .O-Ring | 1 шт. | — | |
|
| 31 | 93210-23326-00 | O-Ring | 2 шт. | — | |
|
| 32 | 90110-06177-00 | Bolt, Hexagon Socket Head | 4 шт. | — | |
|
| 33 | 4WM-1357N-01-00 | Plate, Stopper 1 | 1 шт. | — | |
|
| 34 | 90110-06161-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 35 | 1D7-13405-00-00 | Oil Pipe Comp. 1 | 1 шт. | — | |
|
| 36 | 90401-10175-00 | Bolt, Union | 2 шт. | — | |
|
| 37 | 90430-10188-00 | Gasket | 4 шт. | — | |
|
| 38 | 1D7-13165-00-00 | Bolt, Banjo | 1 шт. | — | |
|
| 39 | 90430-08119-00 | Gasket | 2 шт. | — | |
|
| 40 | 1D7-13181-00-00 | Pipe, Delivery 3 | 1 шт. | — | |
|
| 41 | 93210-08003-00 | O-Ring | 1 шт. | — | |
|
| 43 | 1D7-13464-00-00 | Hose, Oil 1 | 1 шт. | — | |
|
| 44 | 90467-120A0-00 | Clip | 2 шт. | — | |
|
| 45 | 5C7-13352-00-00 | Nozzle | 1 шт. | — | |
|
| 48 | 5C7-13454-00-00 | Nozzle | 1 шт. | — | |
|
| 49 | 93210-07435-00 | O-Ring | 1 шт. | — | |
|
| 49 | 93210-07435-00 | O-Ring | 1 шт. | — | |
|
| 49 | 93210-07435-00 | O-Ring | 1 шт. | — | |
|
| 49 | 93210-07435-00 | O-Ring | 1 шт. | — | |
|
| 50 | 90110-06168-00 | Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 50 | 90110-06168-00 | Bolt, Hexagon Socket Head | 1 шт. | — | |
|
