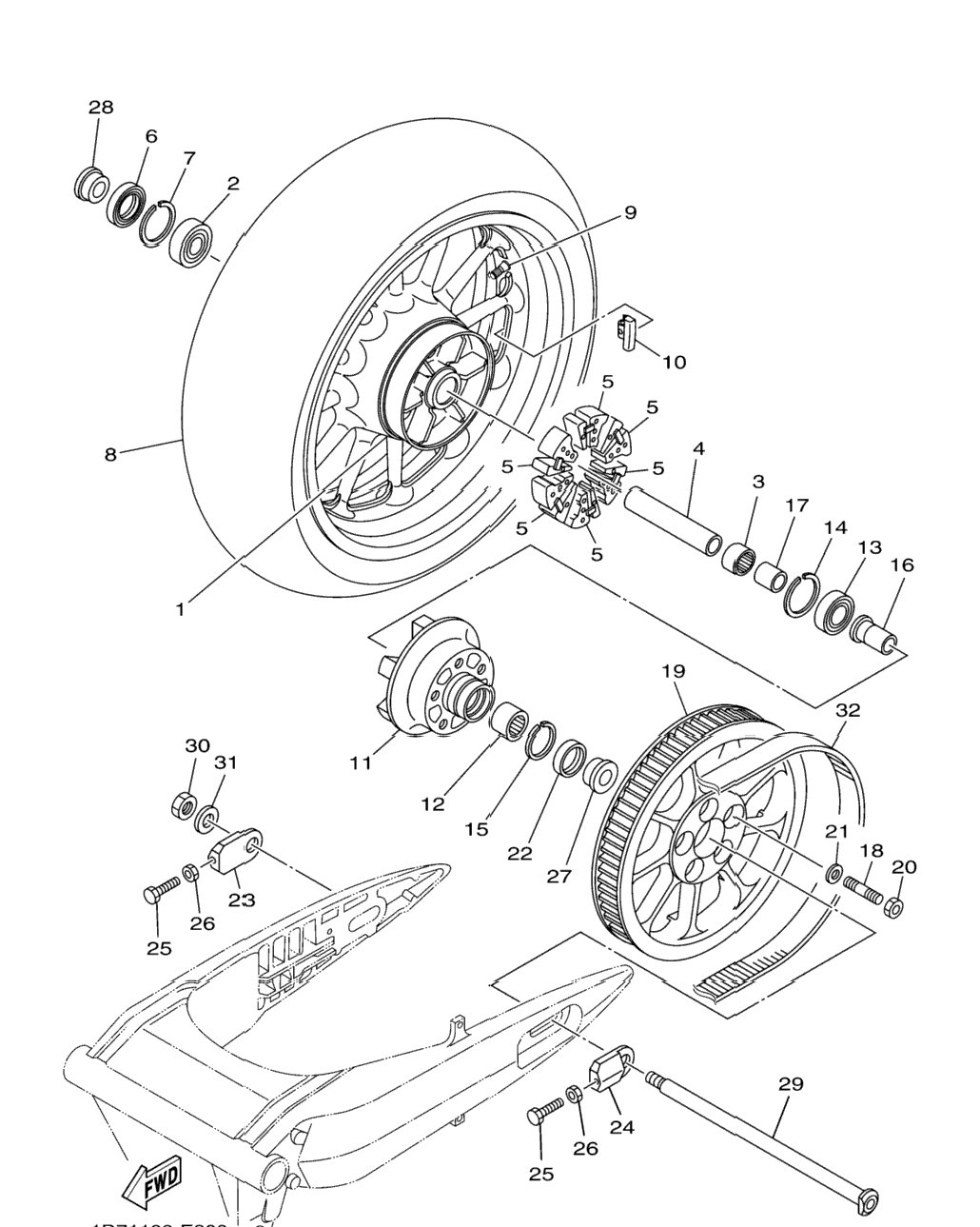

| 1 | 1D7-25338-10-35 | Cast Wheel, Rear SL FOR S3 | 1 шт. | — | |
|
| 2 | 93306-30437-00 | Bearing | 1 шт. | — | |
|
| 3 | 93320-32811-00 | Bearing | 1 шт. | — | |
|
| 4 | 1D7-25317-00-00 | Spacer, Bearing | 1 шт. | — | |
|
| 5 | 1D7-25364-00-00 | Damper | 6 шт. | — | |
|
| 6 | 93106-28001-00 | Oil Seal | 1 шт. | — | |
|
| 7 | 99009-52500-00 | Circlip | 1 шт. | — | |
|
| 8 | 94119-17054-00 | Tire (190/60R17m/C 78H) UR BRIDGESTONE | 0 шт. | — | |
|
| 9 | 94119-17055-00 | Tire (190/60R17m/C 78H D251) UR DUNLOP | 1 шт. | — | |
|
| 10 | 93900-00030-00 | Valve, Rim (Tr412) TAIHEIYO | 1 шт. | — | |
|
| 11 | 5MT-25398-20-00 | Balancer, Wheel (30G) UN | 1 шт. | — | |
|
| 12 | 5MT-25398-10-00 | Balancer, Wheel (20G) UN | 1 шт. | — | |
|
| 13 | 5MT-25398-00-00 | Balancer, Wheel (10G) UN | 1 шт. | — | |
|
| 14 | 4WM-25366-00-00 | Clutch, Hub | 1 шт. | — | |
|
| 15 | 93320-32612-00 | Bearing | 1 шт. | — | |
|
| 16 | 93306-30437-00 | Bearing | 1 шт. | — | |
|
| 17 | 99009-52500-00 | Circlip | 1 шт. | — | |
|
| 18 | 93450-35163-00 | Circlip | 1 шт. | — | |
|
| 19 | 4WM-25376-00-00 | Collar, Wheel | 1 шт. | — | |
|
| 20 | 1D7-25383-00-00 | Collar, Wheel | 1 шт. | — | |
|
| 21 | 95612-12630-00 | Bolt, Stud | 5 шт. | — | |
|
| 22 | 4WM-25470-11-00 | Sprocket, Driven (70T) | 1 шт. | — | |
|
| 23 | 95614-12100-00 | Nut, U | 5 шт. | — | |
|
| 24 | 90201-12045-00 | Washer, Plate | 5 шт. | — | |
|
| 25 | 93106-30004-00 | Oil Seal | 1 шт. | — | |
|
| 26 | 1D7-25388-00-00 | Puller, Chain 1 | 1 шт. | — | |
|
| 27 | 1D7-25389-00-00 | Puller, Chain 2 | 1 шт. | — | |
|
| 28 | 90101-08012-00 | Bolt | 2 шт. | — | |
|
| 29 | 95302-08600-00 | Nut, Hexagon | 2 шт. | — | |
|
| 30 | 90387-202X9-00 | Collar | 1 шт. | — | |
|
| 31 | 90387-20033-00 | Collar | 1 шт. | — | |
|
| 32 | 1D7-25381-00-00 | Axle, Wheel | 1 шт. | — | |
|
| 33 | 90185-18009-00 | Nut, Self-Locking | 1 шт. | — | |
|
| 34 | 90201-185R7-00 | Washer, Plate | 1 шт. | — | |
|
| 35 | 1D7-46241-11-00 | V-Belt | 1 шт. | — | |
|
