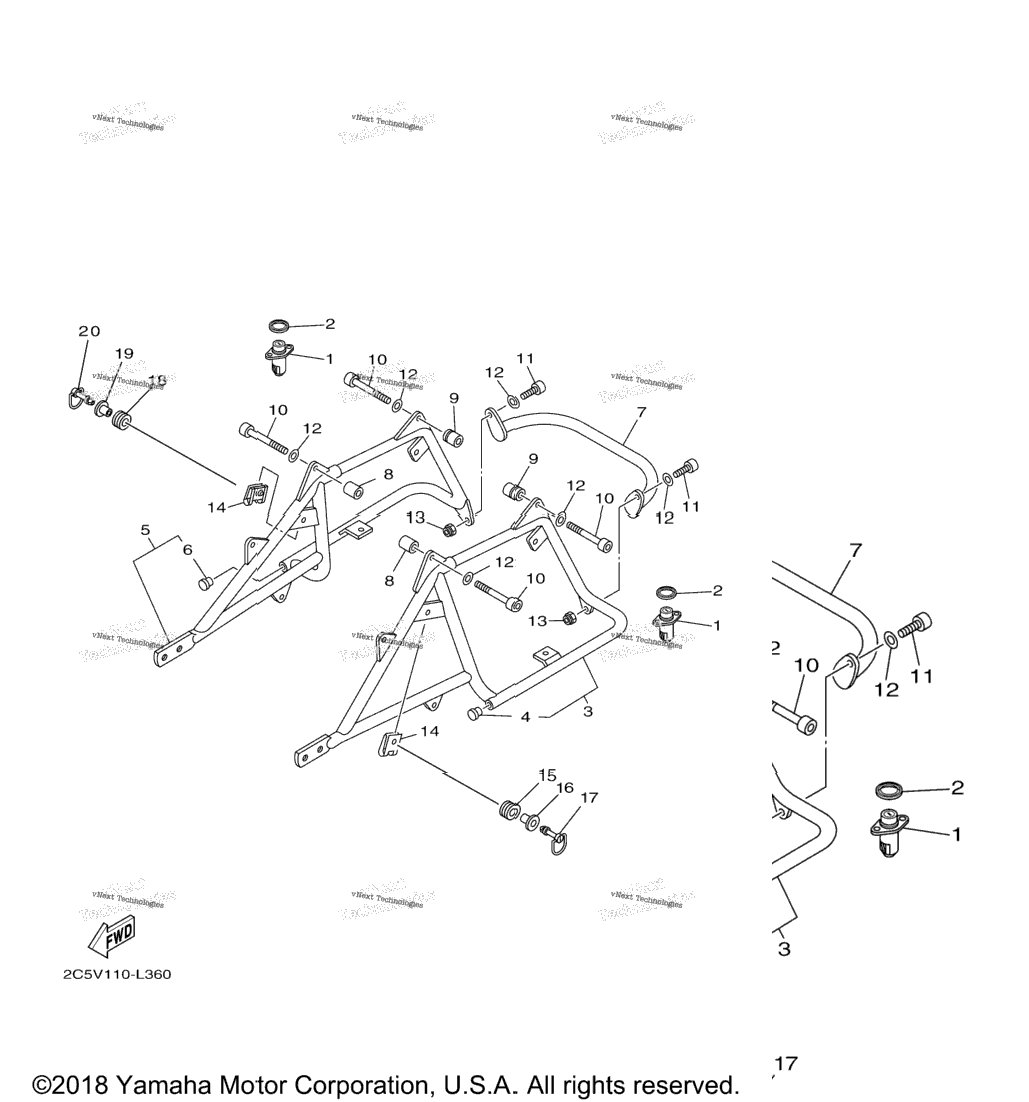

| 1 | 5S6-28408-00-00 | Lock Assy 1 | 2 шт. | — | |
|
| 2 | 5S6-28428-00-00 | Seal 1 | 2 шт. | — | |
|
| 3 | 2C5-F8473-00-00 | Frame, Saddlebag 1 | 0 шт. | — | |
|
| 4 | 2C5-F842M-00-00 | . .Cover 1 | 0 шт. | — | |
|
| 5 | 2C5-F8474-00-00 | Frame, Saddlebag 2 | 0 шт. | — | |
|
| 6 | 2C5-F842M-00-00 | . .Cover 1 | 0 шт. | — | |
|
| 7 | 2C5-F8423-00-00 | Stay, Side Bag | 0 шт. | — | |
|
| 8 | 2C5-F841B-00-00 | Pipe, 1 | 0 шт. | — | |
|
| 9 | 2C5-F841C-00-00 | Pipe, 5 | 0 шт. | — | |
|
| 10 | 91314-08070-00 | Bolt, Hexagon Socket Head | 4 шт. | — | |
|
| 11 | 91314-08020-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 12 | 92990-08200-00 | Washer, Plain | 0 шт. | — | |
|
| 13 | 95614-08100-00 | Nut, U | 0 шт. | — | |
|
| 14 | 2C5-F8457-00-00 | Clip | 6 шт. | — | |
|
| 15 | 2C5-F8416-00-00 | . . Damper 2 | 0 шт. | — | |
|
| 16 | 2C5-F843L-00-00 | . . Plate | 3 шт. | — | |
|
| 17 | 2C5-F8494-00-00 | . . Hook 3 | 3 шт. | — | |
|
| 18 | 2C5-F8416-00-00 | . . Damper 2 | 0 шт. | — | |
|
| 19 | 2C5-F843L-00-00 | . . Plate | 3 шт. | — | |
|
| 20 | 2C5-F8494-00-00 | . . Hook 3 | 3 шт. | — | |
|
