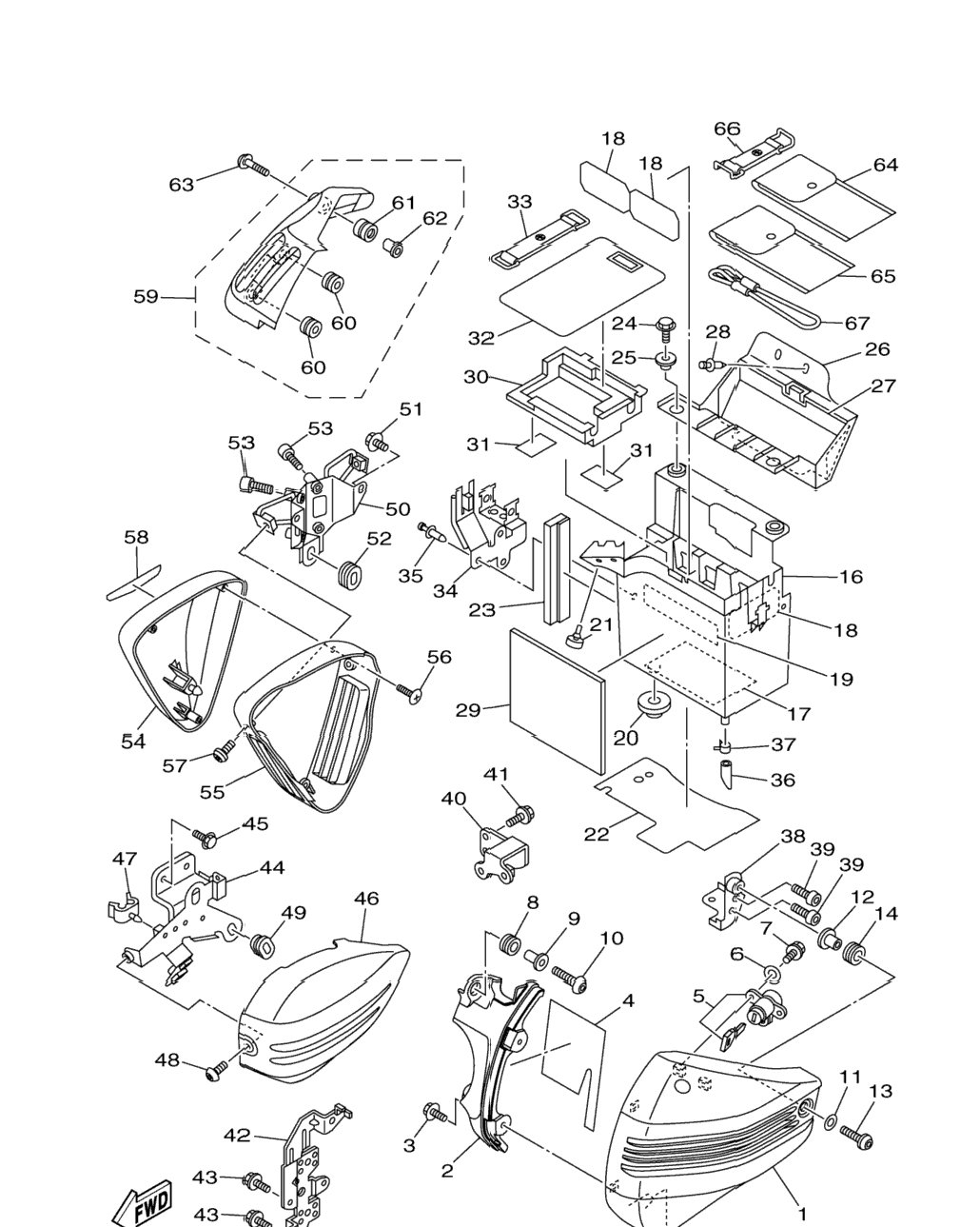

| 1 | 1D7-21711-00-P5 | Cover, Side 1 FOR S3 | 1 шт. | — | |
|
| 2 | 1D7-2117X-00-00 | Cover 9 | 1 шт. | — | |
|
| 3 | 90105-06020-00 | Bolt, Flange | 2 шт. | — | |
|
| 4 | 1D7-21746-00-00 | Damper | 1 шт. | — | |
|
| 5 | 5PX-W2470-00-00 | Rotor Set | 1 шт. | — | |
|
| 6 | 90201-06034-00 | Washer, Plate | 2 шт. | — | |
|
| 7 | 90105-06639-00 | Bolt, Flange | 2 шт. | — | |
|
| 8 | 90480-14323-00 | Grommet | 1 шт. | — | |
|
| 9 | 90387-066Y6-00 | Collar | 1 шт. | — | |
|
| 10 | 92014-06020-00 | Bolt, Button Head | 1 шт. | — | |
|
| 11 | 90201-06M01-00 | Washer, Plate | 1 шт. | — | |
|
| 12 | 90560-06201-00 | Spacer | 1 шт. | — | |
|
| 13 | 90149-06023-00 | Screw | 1 шт. | — | |
|
| 14 | 90480-12007-00 | Grommet | 1 шт. | — | |
|
| 15 | 5PX-2171H-00-00 | Guide | 1 шт. | — | |
|
| 16 | 1D7-2177G-02-00 | Box, Battery | 0 шт. | — | |
|
| 17 | 5PX-21779-00-00 | Damper, Locating 2 | 1 шт. | — | |
|
| 18 | 5PX-21652-00-00 | Protector | 3 шт. | — | |
|
| 19 | 5PX-21778-00-00 | Damper, Locating 1 | 1 шт. | — | |
|
| 20 | 90480-20384-00 | Grommet | 1 шт. | — | |
|
| 21 | 1D7-2174X-00-00 | Damper | 1 шт. | — | |
|
| 22 | 1D7-2177N-01-00 | Damper, Locating 4 | 1 шт. | — | |
|
| 23 | 1D7-21778-00-00 | Damper, Locating 1 | 1 шт. | — | |
|
| 24 | 95022-06020-00 | .Bolt, Flange | 2 шт. | — | |
|
| 25 | 90387-06267-00 | Collar | 2 шт. | — | |
|
| 26 | 1D7-28173-00-00 | Box, Tool | 1 шт. | — | |
|
| 27 | 5PX-2174Y-01-00 | Damper | 1 шт. | — | |
|
| 28 | 90269-07077-00 | Rivet | 2 шт. | — | |
|
| 29 | 1D7-21732-00-00 | Seal 1 | 1 шт. | — | |
|
| 30 | 5PX-82129-00-00 | Cover, Battery | 1 шт. | — | |
|
| 31 | 5JW-2139X-00-00 | .Damper | 2 шт. | — | |
|
| 32 | 5VN-8412H-00-00 | Stay Setting | 1 шт. | — | |
|
| 33 | 120-82131-00-00 | Band, Battery | 1 шт. | — | |
|
| 34 | 1D7-2172K-00-00 | Bracket 1 | 1 шт. | — | |
|
| 35 | 90269-07077-00 | Rivet | 3 шт. | — | |
|
| 36 | 90445-11027-00 | Hose | 1 шт. | — | |
|
| 37 | 90467-11090-00 | Clip | 1 шт. | — | |
|
| 38 | 1D7-2175T-00-00 | Bracket 1 | 1 шт. | — | |
|
| 39 | 92012-06016-00 | Bolt, Button Head | 2 шт. | — | |
|
| 40 | 1D7-2172N-01-00 | Bracket 4 | 1 шт. | — | |
|
| 41 | 95807-06014-00 | Bolt, Flange | 2 шт. | — | |
|
| 42 | 5PX-2174E-01-00 | Stay, Side Cover 2 | 1 шт. | — | |
|
| 43 | 95022-06012-00 | .Bolt, Flange | 2 шт. | — | |
|
| 44 | 1D7-2175V-00-00 | Bracket 3 | 1 шт. | — | |
|
| 45 | 95817-06012-00 | Bolt, Flange | 2 шт. | — | |
|
| 46 | 1D7-21731-01-00 | Cover, Side 3 | 1 шт. | — | |
|
| 47 | 90464-09130-00 | Clamp | 1 шт. | — | |
|
| 48 | 90149-05299-00 | Screw | 1 шт. | — | |
|
| 49 | 90480-01558-00 | Grommet | 2 шт. | — | |
|
| 50 | 1D7-2175W-00-00 | Bracket 4 | 1 шт. | — | |
|
| 51 | 95022-06010-00 | Bolt, Flange | 2 шт. | — | |
|
| 52 | 90480-01558-00 | Grommet | 1 шт. | — | |
|
| 53 | 90110-06213-00 | Bolt, Hexagon Socket Head | 4 шт. | — | |
|
| 54 | 1D7-21741-01-00 | Cover, Side 4 | 1 шт. | — | |
|
| 55 | 1D7-2171D-00-00 | Body | 1 шт. | — | |
|
| 56 | 90167-05077-00 | Screw, Tapping | 3 шт. | — | |
|
| 57 | 90149-06022-00 | Screw | 2 шт. | — | |
|
| 58 | 1D7-2173D-00-00 | Emblem 3D | 1 шт. | — | |
|
| 59 | 1D7-17471-00-P5 | Plate, Cover FOR S3 | 1 шт. | — | |
|
| 60 | 90480-13007-00 | . .Grommet | 2 шт. | — | |
|
| 61 | 90480-13006-00 | . .Grommet | 1 шт. | — | |
|
| 62 | 90387-07007-00 | . .Collar | 1 шт. | — | |
|
| 63 | 90111-06039-00 | Bolt, Hex. Socket Button | 1 шт. | — | |
|
| 64 | 1D7-28100-00-00 | Tool Kit | 1 шт. | — | |
|
| 65 | 1D7-28110-00-00 | Tool Kit, 2 | 1 шт. | — | |
|
| 66 | 116-82131-00-00 | Band, Battery | 1 шт. | — | |
|
| 67 | 4HC-21398-00-00 | Hanger, Helmet | 1 шт. | — | |
|
