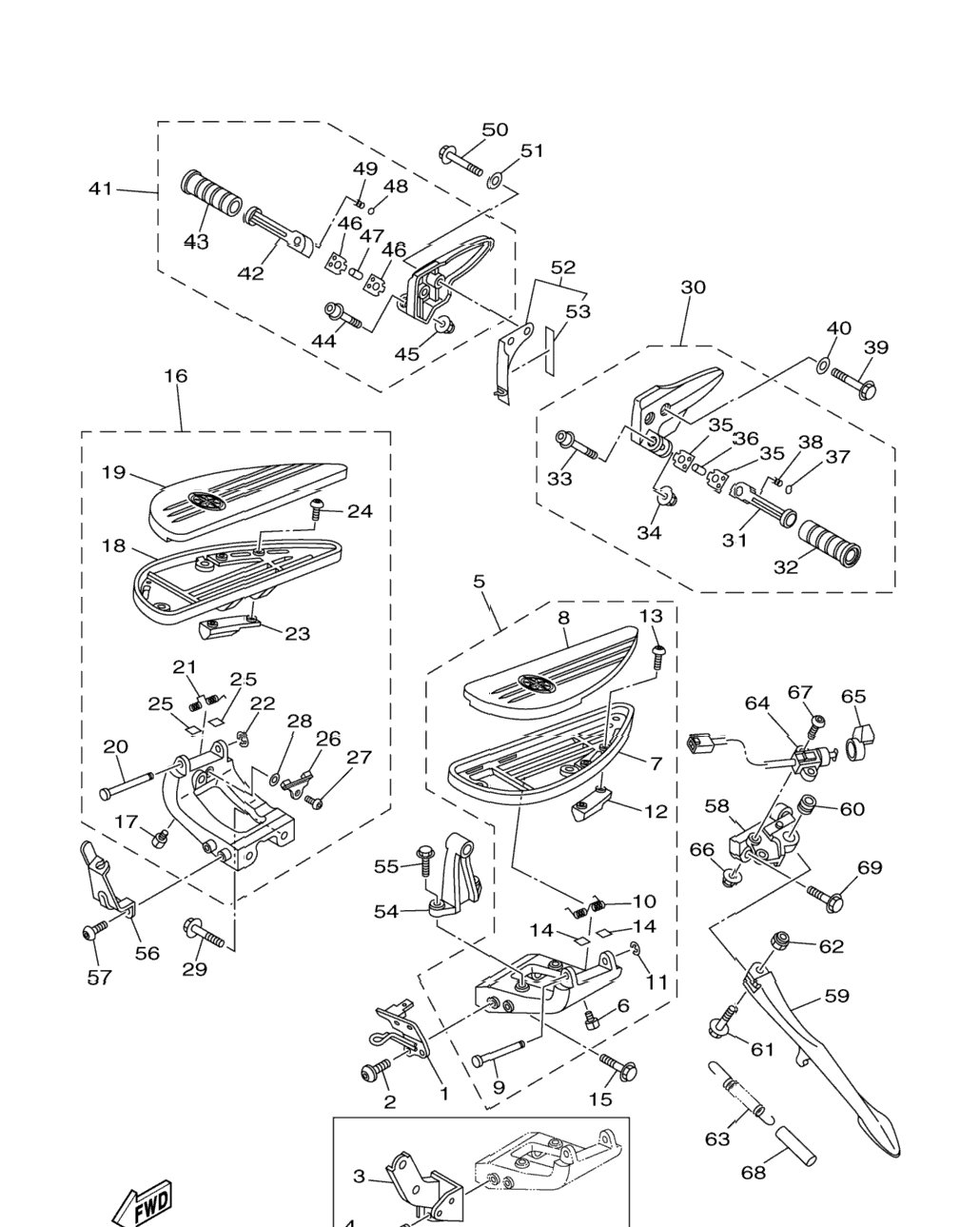

| 1 | 1D7-2134L-00-00 | Bracket, Horn 2 FOR U49 | 1 шт. | — | |
|
| 2 | 90111-06038-00 | Bolt, Hex. Socket Button FOR U49 | 2 шт. | — | |
|
| 3 | 1D7-2742L-00-00 | Bracket 5 FOR CAL | 0 шт. | — | |
|
| 4 | 90111-06038-00 | Bolt, Hex. Socket Button FOR CAL | 0 шт. | — | |
|
| 5 | 1D7-27410-00-00 | Front Footrest Assy (Left) | 1 шт. | — | |
|
| 6 | 1D7-27435-00-00 | . Bolt | 1 шт. | — | |
|
| 7 | 1D7-27451-00-00 | . .Footrest | 1 шт. | — | |
|
| 8 | 1D7-27413-00-00 | . .Cover, Footrest | 1 шт. | — | |
|
| 9 | 1D7-27427-00-00 | . .Shaft | 1 шт. | — | |
|
| 10 | 1D7-27426-00-00 | . .Spring, Return | 1 шт. | — | |
|
| 11 | 99002-06600-00 | . .Circlip | 1 шт. | — | |
|
| 12 | 1D7-27496-00-00 | . .Mole 1 | 1 шт. | — | |
|
| 13 | 90111-06065-00 | . Bolt, Hex. Socket Button | 2 шт. | — | |
|
| 14 | 1D7-27485-00-00 | . .Seal | 2 шт. | — | |
|
| 15 | 90105-10126-00 | Bolt, Flange | 2 шт. | — | |
|
| 16 | 1D7-27420-10-00 | Front Footrest Assy (Right) | 1 шт. | — | |
|
| 17 | 1D7-27435-00-00 | . Bolt | 1 шт. | — | |
|
| 18 | 1D7-27461-00-00 | . .Footrest | 1 шт. | — | |
|
| 19 | 1D7-27423-00-00 | . .Cover, Footrest | 1 шт. | — | |
|
| 20 | 1D7-27427-00-00 | . .Shaft | 1 шт. | — | |
|
| 21 | 1D7-27426-00-00 | . .Spring, Return | 1 шт. | — | |
|
| 22 | 99002-06600-00 | . .Circlip | 1 шт. | — | |
|
| 23 | 1D7-27497-00-00 | . .Mole 2 | 1 шт. | — | |
|
| 24 | 90111-06065-00 | . Bolt, Hex. Socket Button | 2 шт. | — | |
|
| 25 | 1D7-27485-00-00 | . .Seal | 2 шт. | — | |
|
| 26 | 1D7-27214-00-00 | . .Stopper | 1 шт. | — | |
|
| 27 | 90111-06065-00 | . Bolt, Hex. Socket Button | 1 шт. | — | |
|
| 28 | 92902-06600-00 | . Washer, Plate | 1 шт. | — | |
|
| 29 | 90105-10126-00 | Bolt, Flange | 2 шт. | — | |
|
| 30 | 1D7-27430-00-00 | Rear Footrest Assy 1 | 1 шт. | — | |
|
| 31 | 1D7-27431-00-00 | . .Footrest, Rear 1 | 1 шт. | — | |
|
| 32 | 4WM-27433-00-00 | . .Cover, Rear Footrest | 1 шт. | — | |
|
| 33 | 90109-06016-00 | . .Bolt | 1 шт. | — | |
|
| 34 | 95604-06200-00 | . .Nut, U Flange | 1 шт. | — | |
|
| 35 | 1D7-27437-00-00 | . .Washer, Special | 2 шт. | — | |
|
| 36 | 90387-06554-00 | . Collar | 1 шт. | — | |
|
| 37 | 93501-04011-00 | . Ball | 1 шт. | — | |
|
| 38 | 90501-15001-00 | . Spring, Compression | 1 шт. | — | |
|
| 39 | 90105-10171-00 | Bolt, Flange | 2 шт. | — | |
|
| 40 | 90201-10037-00 | Washer, Plate | 2 шт. | — | |
|
| 41 | 1D7-27440-00-00 | Rear Footrest Assy 2 | 1 шт. | — | |
|
| 42 | 1D7-27441-00-00 | . .Footrest, Rear 2 | 1 шт. | — | |
|
| 43 | 4WM-27433-00-00 | . .Cover, Rear Footrest | 1 шт. | — | |
|
| 44 | 90109-06016-00 | . .Bolt | 1 шт. | — | |
|
| 45 | 95604-06200-00 | . .Nut, U Flange | 1 шт. | — | |
|
| 46 | 1D7-27437-00-00 | . .Washer, Special | 2 шт. | — | |
|
| 47 | 90387-06554-00 | . Collar | 1 шт. | — | |
|
| 48 | 93501-04011-00 | . Ball | 1 шт. | — | |
|
| 49 | 90501-15001-00 | . Spring, Compression | 1 шт. | — | |
|
| 50 | 90105-10171-00 | Bolt, Flange | 2 шт. | — | |
|
| 51 | 90201-10037-00 | Washer, Plate | 2 шт. | — | |
|
| 52 | 1D7-2171G-01-00 | Bracket, Stopper Steeering | 1 шт. | — | |
|
| 53 | 1D7-2174Y-00-00 | . .Damper | 0 шт. | — | |
|
| 54 | 1D7-27443-00-00 | Bracket 3 | 1 шт. | — | |
|
| 55 | 95024-08030-00 | Bolt,Flg,(Small Head) | 2 шт. | — | |
|
| 56 | 1D7-2741L-00-00 | Bracket 4 | 1 шт. | — | |
|
| 57 | 92014-06012-00 | Bolt, Button Head | 2 шт. | — | |
|
| 58 | 1D7-27321-00-00 | Bracket, Side Stand | 1 шт. | — | |
|
| 59 | 1D7-27311-00-00 | Stand, Side | 0 шт. | — | |
|
| 60 | 90387-12031-00 | Collar | 1 шт. | — | |
|
| 61 | 90105-12018-00 | Bolt, Flange | 1 шт. | — | |
|
| 62 | 90185-12119-00 | Nut, Self-Locking | 1 шт. | — | |
|
| 63 | 90506-35005-00 | Spring, Tension | 1 шт. | — | |
|
| 64 | 3D8-82566-B0-00 | Switch, Side Stand | 1 шт. | — | |
|
| 65 | 4WM-8252U-00-00 | Cover | 1 шт. | — | |
|
| 66 | 95607-05200-00 | Nut, S/L Flange | 2 шт. | — | |
|
| 67 | 92017-05025-00 | Bolt, Button Head | 2 шт. | — | |
|
| 68 | 90445-22327-00 | Hose (L70) | 1 шт. | — | |
|
| 69 | 90105-10157-00 | Bolt, Flange | 2 шт. | — | |
|
