Transmission

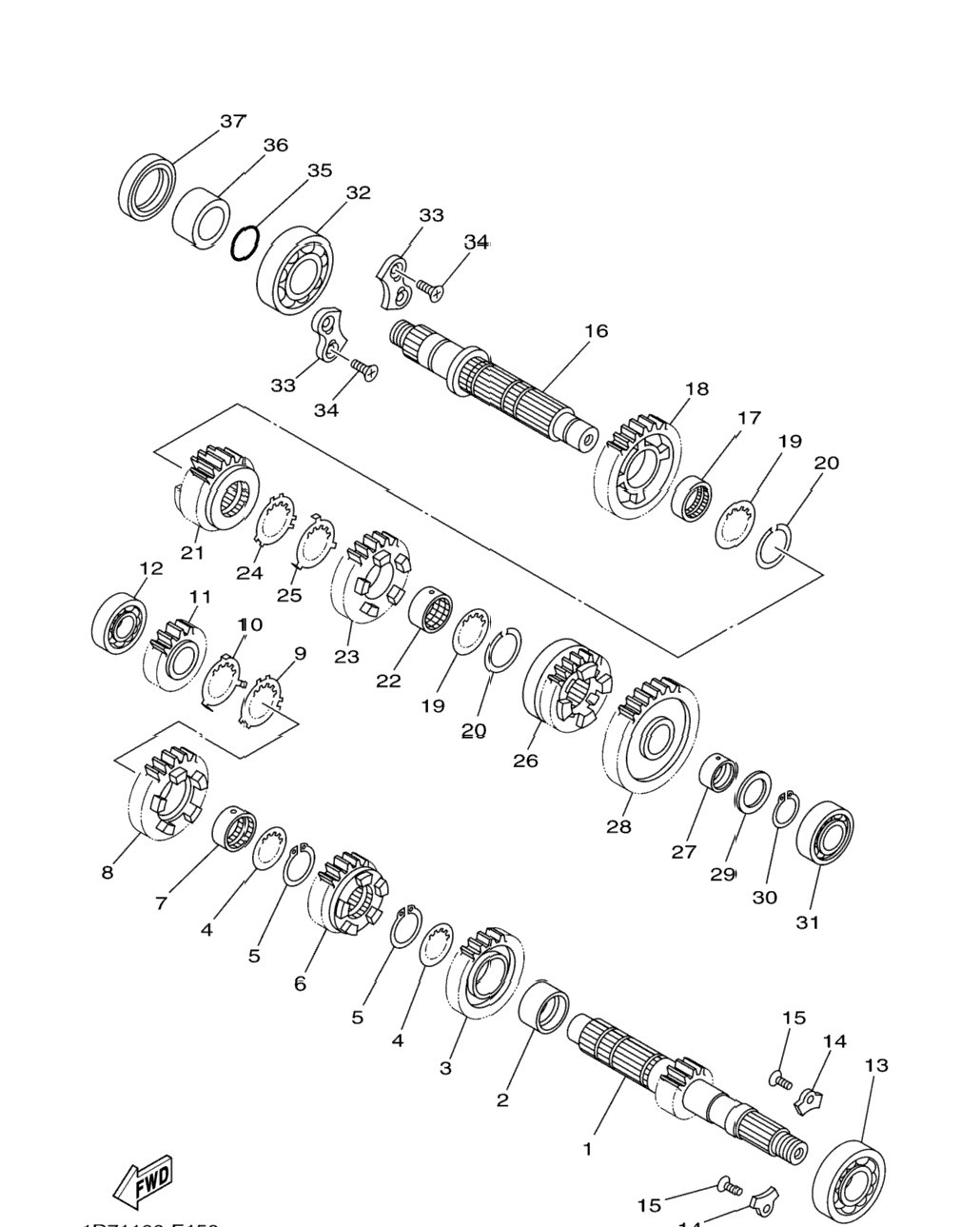

Схема Transmission
| № | Артикул | Название | Кол-во | Наличие и цены | Действия |
|---|
| 1 | 1D7-17411-00-00 | Axle, Main (16T) | 1 шт. | — | |
|
| 2 | 90387-32004-00 | Collar | 1 шт. | — | |
|
| 3 | 1D7-17141-00-00 | Gear, 4Th Pinion (28T) | 1 шт. | — | |
|
| 4 | 90209-28331-00 | Washer | 2 шт. | — | |
|
| 5 | 93440-31172-00 | Circlip | 2 шт. | — | |
|
| 6 | 1D7-17131-10-00 | Gear, 3Rd Pinion (25T) | 1 шт. | — | |
|
| 7 | 90387-28005-00 | Collar | 1 шт. | — | |
|
| 8 | 1D7-17151-10-00 | Gear, 5Th Pinion (30T) | 1 шт. | — | |
|
| 9 | 90209-29329-00 | Washer | 1 шт. | — | |
|
| 10 | 90209-28330-00 | Washer | 1 шт. | — | |
|
| 11 | 1D7-17121-00-00 | Gear, 2Nd Pinion (21T) | 1 шт. | — | |
|
| 12 | 93306-20593-00 | Bearing | 1 шт. | — | |
|
| 13 | 93306-37806-00 | Bearing | 1 шт. | — | |
|
| 14 | 3AK-15383-01-00 | Plate, Bearing Cover | 2 шт. | — | |
|
| 15 | 90151-06024-00 | Screw, Countersunk | 2 шт. | — | |
|
| 16 | 1D7-17421-00-00 | Axle, Drive | 1 шт. | — | |
|
| 17 | 90387-3311C-00 | Collar | 1 шт. | — | |
|
| 18 | 1D7-17221-00-00 | Gear, 2Nd Wheel (33T) | 1 шт. | — | |
|
| 19 | 90209-30344-00 | Washer | 2 шт. | — | |
|
| 20 | 93440-32063-00 | Circlip | 2 шт. | — | |
|
| 21 | 1D7-17251-10-00 | Gear, 5Th Wheel (24T) | 1 шт. | — | |
|
| 22 | 90387-3310V-00 | Collar | 1 шт. | — | |
|
| 23 | 1D7-17231-10-00 | Gear, 3Rd Wheel (29T) | 1 шт. | — | |
|
| 24 | 90209-30345-00 | Washer | 1 шт. | — | |
|
| 25 | 90209-30343-00 | Washer | 1 шт. | — | |
|
| 26 | 1D7-17241-01-00 | Gear, 4Th Wheel (26T) | 1 шт. | — | |
|
| 27 | 90387-25008-00 | Collar | 1 шт. | — | |
|
| 28 | 1D7-17211-01-00 | Gear, 1St Wheel (38T) | 1 шт. | — | |
|
| 29 | 90201-256K6-00 | Washer, Plate (0.9T) | 1 шт. | — | |
|
| 30 | 93410-25017-00 | Circlip | 1 шт. | — | |
|
| 31 | 93306-20593-00 | Bearing | 1 шт. | — | |
|
| 32 | 93306-30641-00 | Bearing | 1 шт. | — | |
|
| 33 | 31A-15381-00-00 | Plate, Bearing Cover | 2 шт. | — | |
|
| 34 | 90151-08002-00 | Screw, Countersunk | 2 шт. | — | |
|
| 35 | 93210-28001-00 | O-Ring | 1 шт. | — | |
|
| 36 | 90387-32006-00 | Collar | 1 шт. | — | |
|
| 37 | 93103-44011-00 | Oil Seal | 1 шт. | — | |
|
