Headlamp Cover (Vzr1800z L2 E28)

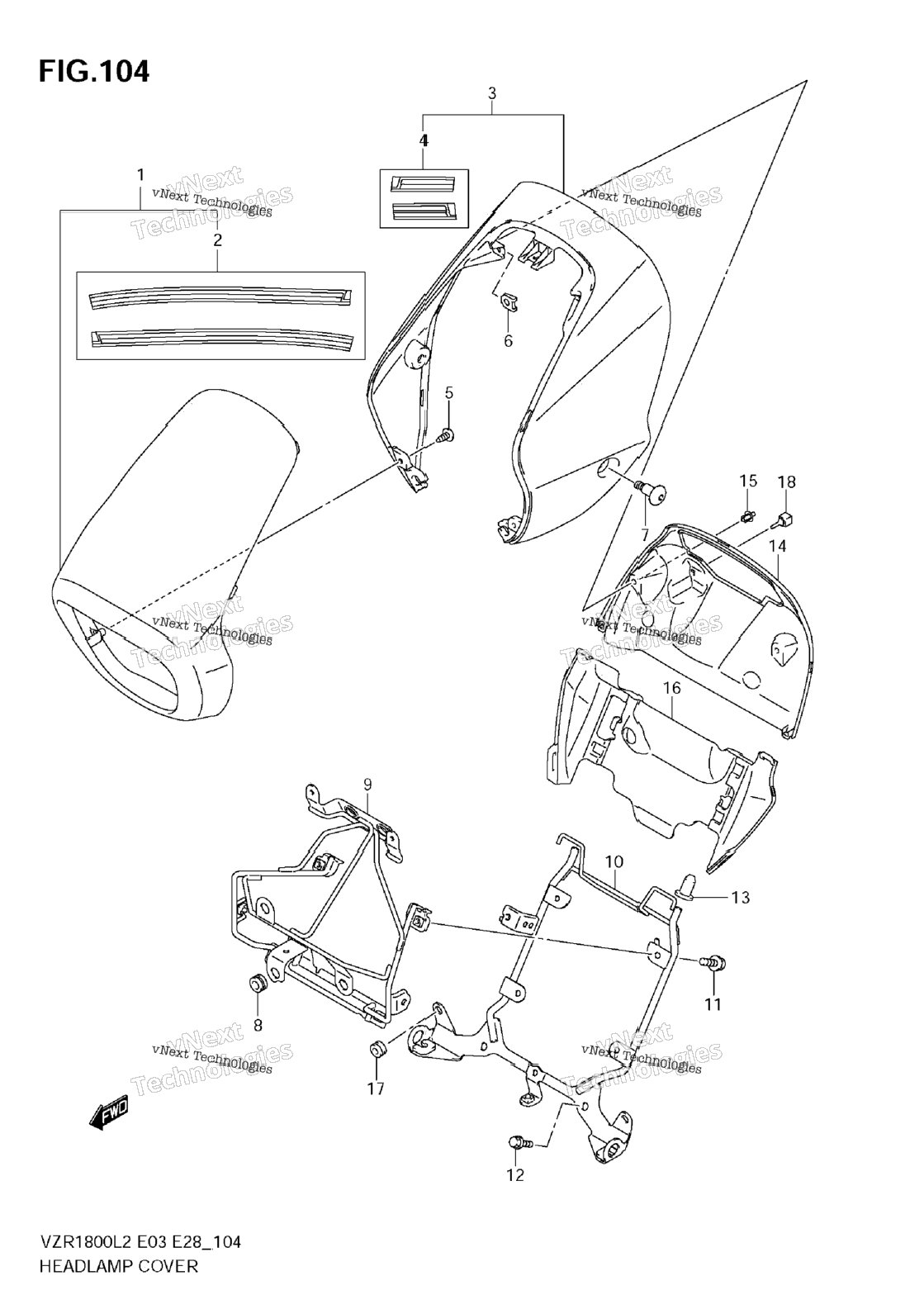

Схема Headlamp Cover (Vzr1800z L2 E28)
| № | Артикул | Название | Кол-во | Наличие и цены | Действия |
|---|
| 1 | 51810-48GC0-JBA | COVER,HEADLAMP (BLACK/ORANGE) | 1 шт. | — | |
| 2 | 51810-48GC0-GLR | COVER,HEADLAMP (BLUE/WHITE) | 1 шт. | — | |
| 3 | 68720-48G70-JBA | TAPE SET (BLACK/ORANGE) | 0 шт. | — | |
| 4 | 68720-48G70-GLR | TAPE SET (BLUE/WHITE) | 0 шт. | — | |
| 5 | 51820-48GC0-JBA | COVER, CENTER (BLACK/ORANGE) | 1 шт. | — | |
| 6 | 51820-48GC0-GLR | COVER, CENTER (BLUE/WHITE) | 1 шт. | — | |
| 7 | 68720-48G80-JBA | TAPE SET (BLACK/ORANGE) | 1 шт. | — | |
| 8 | 68720-48G80-GLR | TAPE SET (BLUE/WHITE) | 0 шт. | — | |
| 9 | 03541-0510A | SCREW | 4 шт. | — | |
| 10 | 09148-05045 | NUT (M5) | 2 шт. | — | |
| 11 | 09139-06191 | SCREW (6X22) | 2 шт. | — | |
| 12 | 09320-09039 | CUSHION | 2 шт. | — | |
| 13 | 51860-48GB0 | BRACE, HOUSING | 1 шт. | — | |
| 14 | 51850-48GB0 | BRACE, COVER | 1 шт. | — | |
| 15 | 01550-0612B | BOLT | 4 шт. | — | |
| 16 | 01550-0816A | BOLT | 2 шт. | — | |
| 17 | 51831-21D00 | CUSHION,HEADLAMP BRACE | 2 шт. | — | |
| 18 | 51831-48GB0 | COVER, REAR | 1 шт. | — | |
| 19 | 09409-06314-5PK | CLIP (BLACK) | 2 шт. | — | |
| 20 | 51841-48GB0 | COVER, BRACKET | 1 шт. | — | |
| 21 | 09320-06016 | CUSHION | 2 шт. | — | |
| 22 | 51832-48GB0 | CUSHION, COVER UPPER | 1 шт. | — | |
