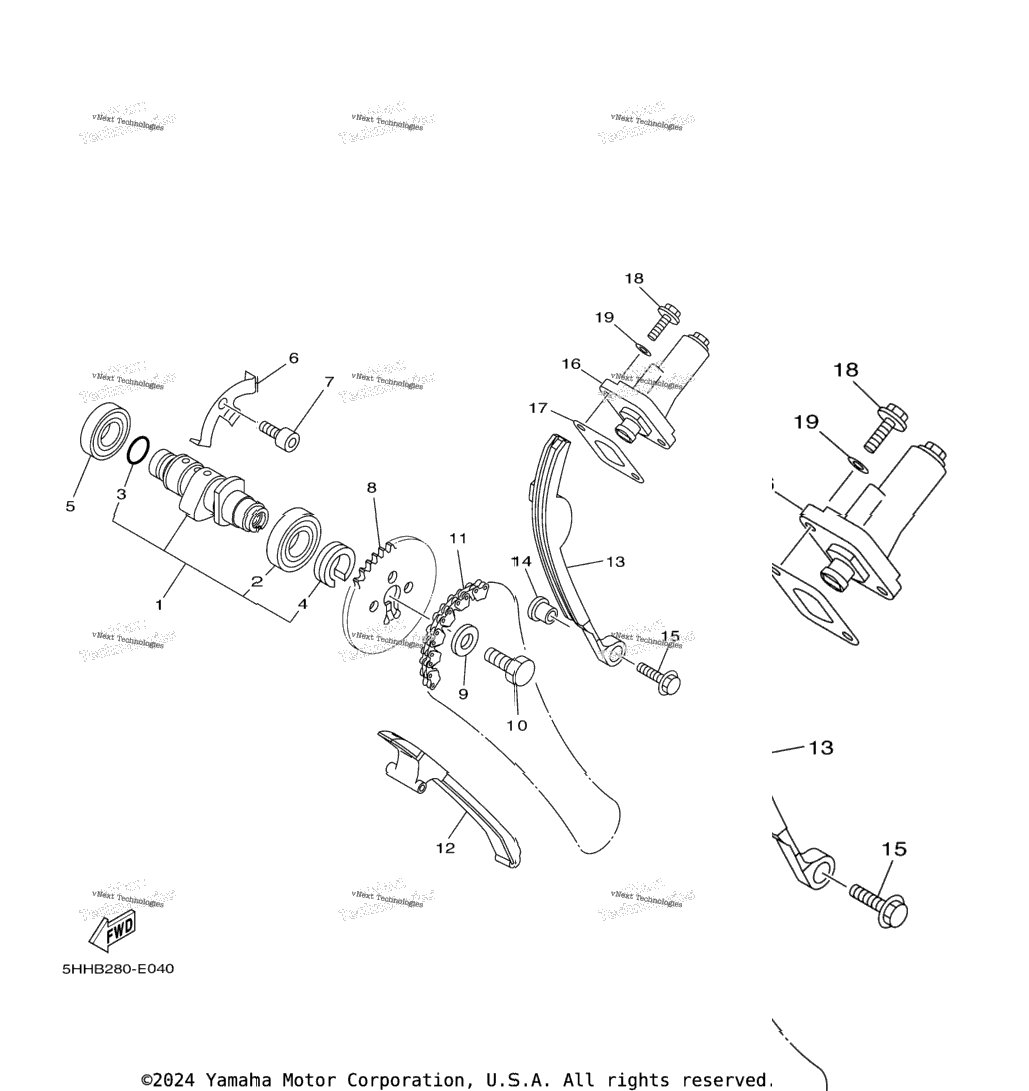

| 1 | 5HH-E2170-20-00 | Camshaft Assy 1 | 1 шт. | — | |
|
| 2 | 93306-003X0-00 | . .Bearing | 0 шт. | — | |
|
| 3 | 93210-11453-00 | . .O-Ring | 1 шт. | — | |
|
| 4 | 90387-16804-00 | . .Collar | 1 шт. | — | |
|
| 5 | 93306-002Y5-00 | Bearing | 1 шт. | — | |
|
| 6 | 5HH-E111F-00-00 | Plate | 1 шт. | — | |
|
| 7 | 9131M-06012-00 | Bolt | 1 шт. | — | |
|
| 8 | 5VL-E2176-10-00 | Sprocket, Cam Chain | 1 шт. | — | |
|
| 9 | 90201-08326-00 | Washer, Plate | 1 шт. | — | |
|
| 10 | 90101-08W10-00 | Bolt | 1 шт. | — | |
|
| 11 | 94582-18090-00 | Chain (Did Scr-0404 Sv) | 1 шт. | — | |
|
| 12 | 5HH-E2231-10-00 | Guide, Stopper 1 | 1 шт. | — | |
|
| 13 | 5HH-E2241-10-00 | Guide, Stopper 2 | 1 шт. | — | |
|
| 14 | 5HH-E5598-00-00 | Collar | 1 шт. | — | |
|
| 15 | 9580M-06020-00 | Bolt, Flange | 1 шт. | — | |
|
| 16 | 5VL-12210-10-00 | Tensioner Assy, Cam Chain | 1 шт. | — | |
|
| 17 | 5HH-E2213-00-00 | Gasket, Tensioner Case | 1 шт. | — | |
|
| 18 | 9502M-06016-00 | Bolt, Flange | 2 шт. | — | |
|
| 19 | 90430-06014-00 | Gasket | 2 шт. | — | |
|
