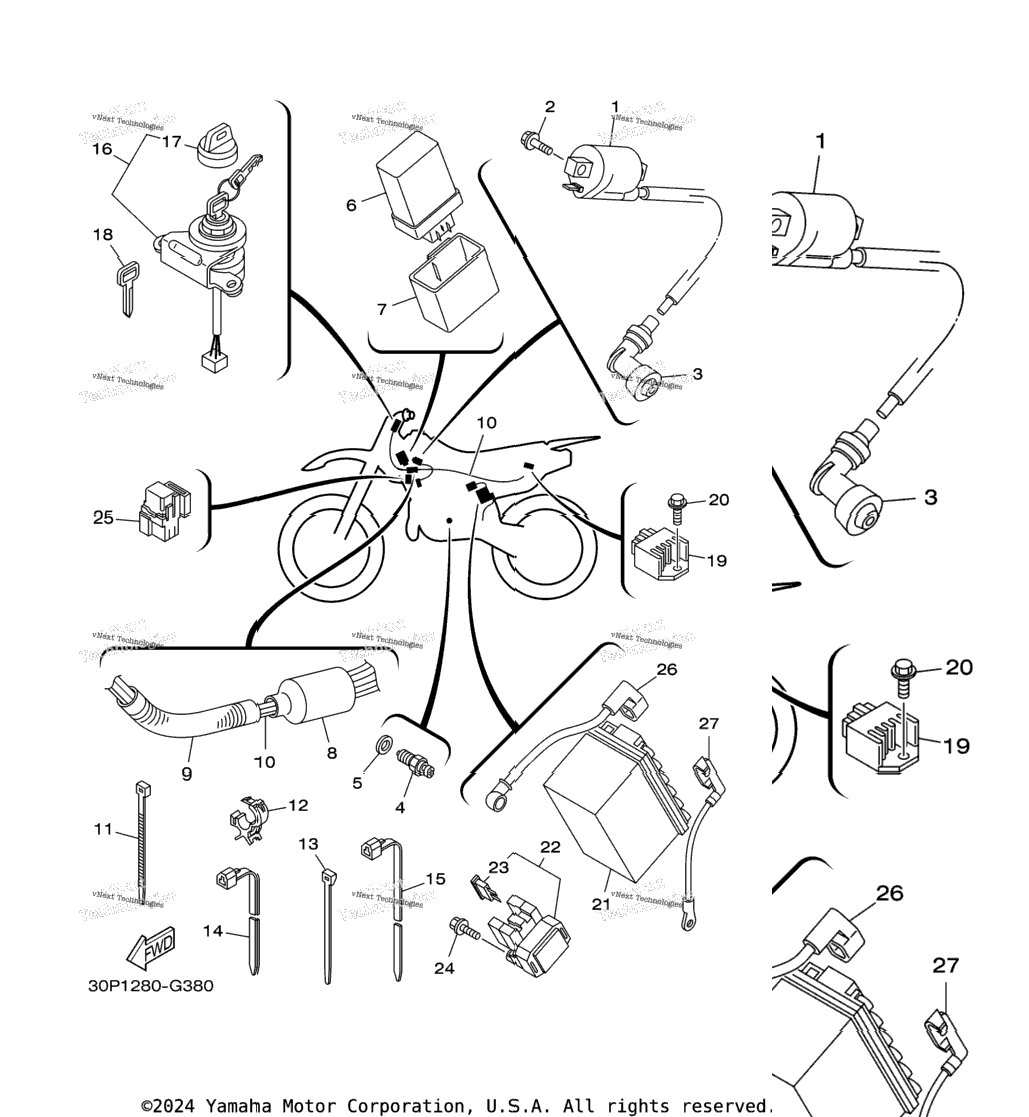

| 1 | 4KJ-82310-10-00 | Ignition Coil Assy | 1 шт. | — | |
|
| 2 | 95880-06016-00 | Bolt, Flange | 2 шт. | — | |
|
| 3 | 4BP-82370-00-00 | Plug Cap Assy | 1 шт. | — | |
|
| 4 | 5HH-H2540-02-00 | Neutral Switch Assy | 1 шт. | — | |
|
| 5 | 90430-09809-00 | Gasket | 1 шт. | — | |
|
| 6 | 5HP-85540-00-00 | C.D.I. Unit Assy | 1 шт. | — | |
|
| 7 | 1B2-H5546-00-00 | Band | 0 шт. | — | |
|
| 8 | 1B2-H2599-00-00 | Cover, Connector | 0 шт. | — | |
|
| 9 | 90447-19004-00 | Hose, With Spring (L130) | 1 шт. | — | |
|
| 10 | 19C-H2590-10-00 | Wire Harness Assy | 1 шт. | — | |
|
| 11 | 90465-13275-00 | Clamp | 3 шт. | — | |
|
| 12 | 90464-15192-00 | Clamp | 2 шт. | — | |
|
| 13 | 90465-13152-00 | Clamp | 5 шт. | — | |
|
| 14 | 90464-13077-00 | Clamp | 3 шт. | — | |
|
| 15 | 90464-13073-00 | Clamp | 2 шт. | — | |
|
| 16 | 5HP-82510-00-00 | Main Switch Assy | 1 шт. | — | |
|
| 17 | 3HN-82579-00-00 | . .Cap, Key | 1 шт. | — | |
|
| 18 | 90890-56001-00 | Blank Key (A-Type) AP | 1 шт. | — | |
|
| 19 | 90890-56002-00 | Blank Key (B-Type) AP | 1 шт. | — | |
|
| 20 | 5HH-H1960-00-00 | Rectifier & Regulator Assy | 1 шт. | — | |
|
| 21 | 9502M-06012-00 | Bolt, Flange | 1 шт. | — | |
|
| 22 | 1B2-H2100-00-00 | Battery Assy (Gt4l-Bs) | 1 шт. | — | |
|
| 23 | 5HH-81940-02-00 | Starter Relay Assy (Rc19-028) | 1 шт. | — | |
|
| 24 | 42X-82151-00-00 | . .Fuse (10A-Bl) | 2 шт. | — | |
|
| 25 | 9502M-06008-00 | Bolt, Flange | 2 шт. | — | |
|
| 26 | 8DM-81950-00-00 | Relay Assy (8Dm-00) | 1 шт. | — | |
|
| 27 | 1B2-H2115-00-00 | Wire, Plus Lead | 1 шт. | — | |
|
| 28 | 1B2-H2116-00-00 | Wire, Minus Lead | 1 шт. | — | |
|
