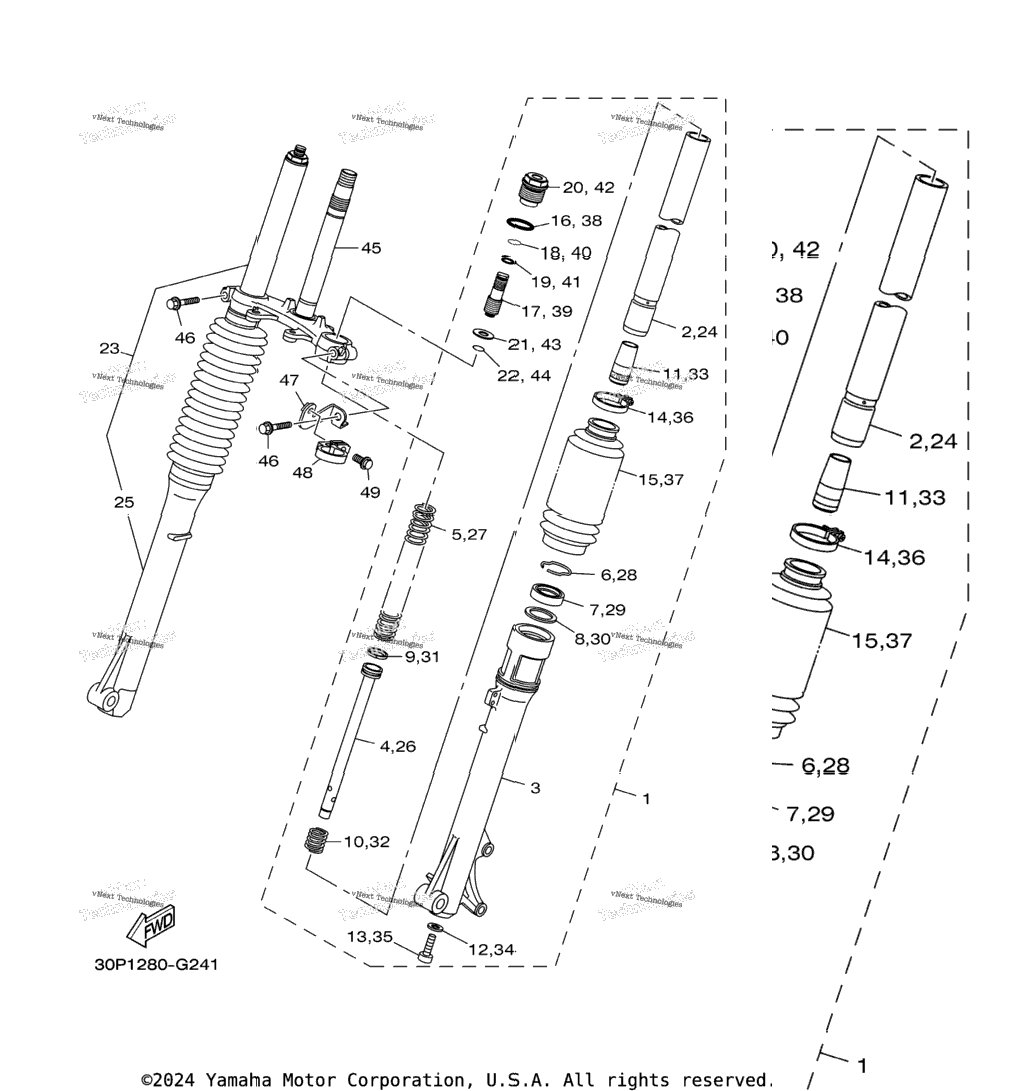

| 1 | 1B2-F3102-20-00 | Front Fork Assy (L.H) | 1 шт. | — | |
|
| 2 | 1B2-F3110-10-00 | . . .Inner Tube Comp.1 | 1 шт. | — | |
|
| 3 | 1B2-F3126-10-00 | . .Tube, Outer (L.H) | 0 шт. | — | |
|
| 4 | 1B2-F3171-00-00 | . .Piston, Front Fork | 0 шт. | — | |
|
| 5 | 1B2-F3351-20-00 | . .Spring | 0 шт. | — | |
|
| 6 | 2A6-F3156-00-00 | . .Ring, Snap | 1 шт. | — | |
|
| 7 | 5B6-23145-00-00 | . .Oil Seal | 1 шт. | — | |
|
| 8 | 5B6-23146-00-00 | . .Washer, Oil Seal | 1 шт. | — | |
|
| 9 | 1E7-F3157-00-00 | . .Ring, Piston | 1 шт. | — | |
|
| 10 | 1B2-F3151-00-00 | . .Spring, Rebound | 1 шт. | — | |
|
| 11 | 1B2-F3166-00-00 | . .Spacer, Oil Lock | 0 шт. | — | |
|
| 12 | 3MA-F3129-00-00 | . .Gasket, Drain Plug | 1 шт. | — | |
|
| 13 | 4B4-F3181-00-00 | . .Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 14 | 1B2-23192-00-00 | . .Band | 1 шт. | — | |
|
| 15 | 1B2-23191-00-00 | . .Boot | 1 шт. | — | |
|
| 16 | 1L9-23145-00-00 | . .Oil Seal | 1 шт. | — | |
|
| 17 | 1B2-23111-00-00 | . .Bolt, Cap | 1 шт. | — | |
|
| 18 | 1B2-23183-20-00 | . .Circlip | 1 шт. | — | |
|
| 19 | 1KT-23114-00-00 | . .Gasket | 1 шт. | — | |
|
| 20 | 1B2-2311H-00-00 | . .Fork Bolt | 1 шт. | — | |
|
| 21 | 1B2-23142-00-00 | . .Seat, Spring Upper | 1 шт. | — | |
|
| 22 | 1B2-23153-20-00 | . .Ring, Snap | 1 шт. | — | |
|
| 23 | 1B2-F3103-20-00 | Front Fork Assy (R.H) | 1 шт. | — | |
|
| 24 | 1B2-F3110-10-00 | . . .Inner Tube Comp.1 | 1 шт. | — | |
|
| 25 | 1B2-F3136-10-00 | . .Tube, Outer 2 | 1 шт. | — | |
|
| 26 | 1B2-F3171-00-00 | . .Piston, Front Fork | 0 шт. | — | |
|
| 27 | 1B2-F3351-20-00 | . .Spring | 0 шт. | — | |
|
| 28 | 2A6-F3156-00-00 | . .Ring, Snap | 1 шт. | — | |
|
| 29 | 5B6-23145-00-00 | . .Oil Seal | 1 шт. | — | |
|
| 30 | 5B6-23146-00-00 | . .Washer, Oil Seal | 1 шт. | — | |
|
| 31 | 1E7-F3157-00-00 | . .Ring, Piston | 1 шт. | — | |
|
| 32 | 1B2-F3151-00-00 | . .Spring, Rebound | 1 шт. | — | |
|
| 33 | 1B2-F3166-00-00 | . .Spacer, Oil Lock | 0 шт. | — | |
|
| 34 | 3MA-F3129-00-00 | . .Gasket, Drain Plug | 1 шт. | — | |
|
| 35 | 4B4-F3181-00-00 | . .Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 36 | 1B2-23192-00-00 | . .Band | 1 шт. | — | |
|
| 37 | 1B2-23191-00-00 | . .Boot | 1 шт. | — | |
|
| 38 | 1L9-23145-00-00 | . .Oil Seal | 1 шт. | — | |
|
| 39 | 1B2-23111-00-00 | . .Bolt, Cap | 1 шт. | — | |
|
| 40 | 1B2-23183-20-00 | . .Circlip | 1 шт. | — | |
|
| 41 | 1KT-23114-00-00 | . .Gasket | 1 шт. | — | |
|
| 42 | 1B2-2311H-00-00 | . .Fork Bolt | 1 шт. | — | |
|
| 43 | 1B2-23142-00-00 | . .Seat, Spring Upper | 1 шт. | — | |
|
| 44 | 1B2-23153-20-00 | . .Ring, Snap | 1 шт. | — | |
|
| 45 | 1B2-F3340-00-35 | Under Bracket Comp SL | 1 шт. | — | |
|
| 46 | 90105-10304-00 | Bolt, Flange | 2 шт. | — | |
|
| 47 | 1B2-F334G-00-00 | Bracket 1 | 1 шт. | — | |
|
| 48 | 1C6-F3389-00-00 | Guide, Cable | 1 шт. | — | |
|
| 49 | 90119-05193-00 | Bolt, With Washer | 1 шт. | — | |
|
