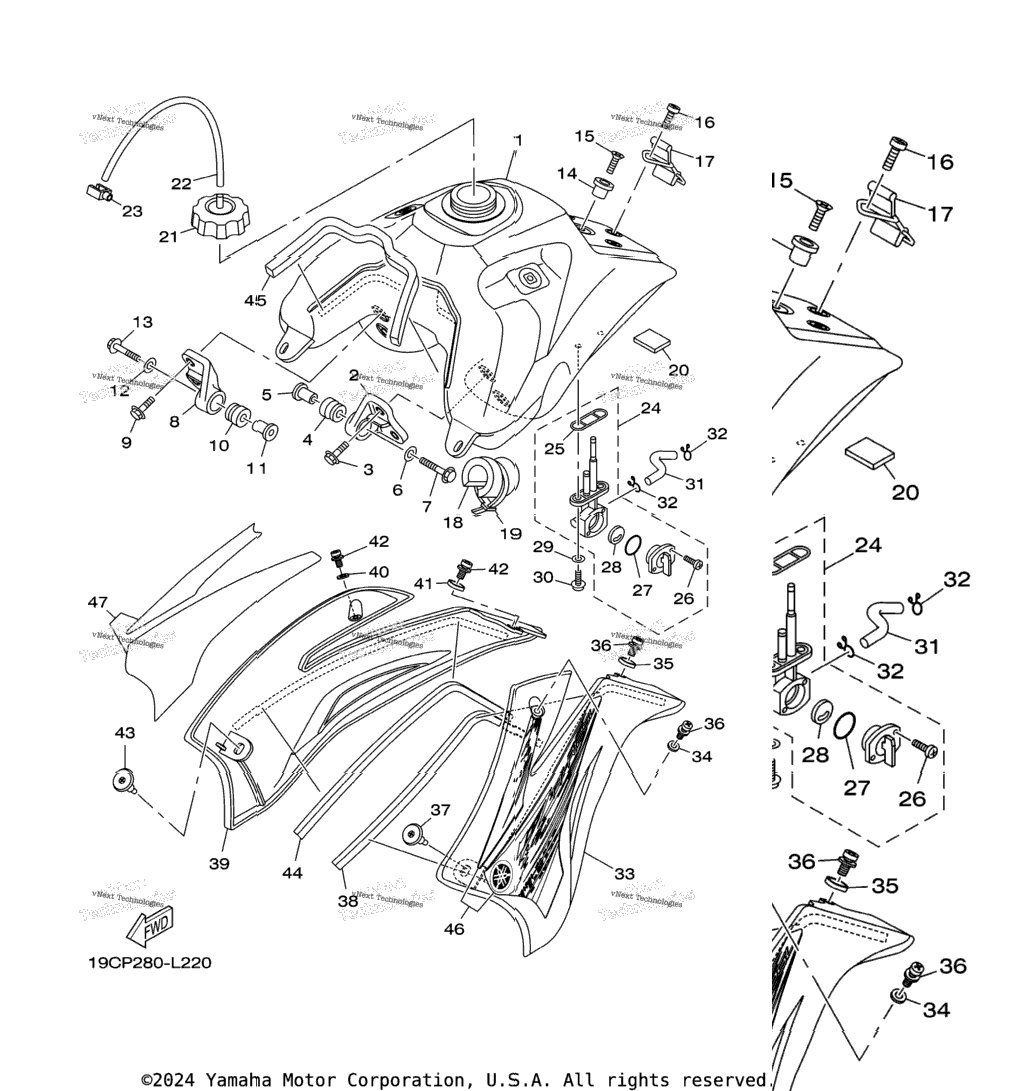

| № | Артикул | Название | Кол-во | Наличие и цены | Действия |
|---|
| 1 | 1B2-24110-10-00 | Fuel Tank Comp | 1 шт. | — | |
|
| 2 | 1B2-F4104-00-00 | Tank Bracket Assy | 1 шт. | — | |
|
| 3 | 9582M-06012-00 | Bolt | 2 шт. | — | |
|
| 4 | 90480-18549-00 | Grommet | 1 шт. | — | |
|
| 5 | 1B2-F4186-00-00 | Washer, Special | 1 шт. | — | |
|
| 6 | 90201-06071-00 | Washer, Plate | 1 шт. | — | |
|
| 7 | 9582M-06030-00 | Bolt | 1 шт. | — | |
|
| 8 | 1B2-F4105-00-00 | Tank Bracket Assy 2 | 1 шт. | — | |
|
| 9 | 9582M-06012-00 | Bolt | 2 шт. | — | |
|
| 10 | 90480-18549-00 | Grommet | 1 шт. | — | |
|
| 11 | 1B2-F4186-00-00 | Washer, Special | 1 шт. | — | |
|
| 12 | 90201-06071-00 | Washer, Plate | 1 шт. | — | |
|
| 13 | 9582M-06030-00 | Bolt | 1 шт. | — | |
|
| 14 | 1B2-F412F-00-00 | Bracket, Seat | 1 шт. | — | |
|
| 15 | 9870M-06020-00 | Screw, Flat Head | 1 шт. | — | |
|
| 16 | 9890M-06016-00 | Screw, Bind | 1 шт. | — | |
|
| 17 | 1B2-F4173-00-00 | Band, Tank Fitting 1 | 1 шт. | — | |
|
| 18 | 1B2-F4145-00-00 | Damper, Side Cover | 1 шт. | — | |
|
| 19 | 90465-13275-00 | Clamp | 1 шт. | — | |
|
| 20 | 1B2-F8415-00-00 | Damper 1 | 1 шт. | — | |
|
| 21 | 2FJ-24610-10-00 | Cap Assy | 1 шт. | — | |
|
| 22 | 5B6-21826-10-00 | Pipe, Breather | 1 шт. | — | |
|
| 23 | 90464-13003-00 | Clamp | 1 шт. | — | |
|
| 24 | 4X8-24500-10-00 | Fuel Cock Assy 1 | 1 шт. | — | |
|
| 25 | 4X8-24512-10-00 | . .Gasket | 1 шт. | — | |
|
| 26 | 98507-03008-00 | . .Screw, Pan Head | 2 шт. | — | |
|
| 27 | 3AJ-24534-10-00 | . .Seal, Cock | 1 шт. | — | |
|
| 28 | 3AC-24523-00-00 | . .Valve Packing | 1 шт. | — | |
|
| 29 | 90202-05193-00 | Washer, Plate | 2 шт. | — | |
|
| 30 | 90149-06011-00 | Screw | 2 шт. | — | |
|
| 31 | 90445-10041-00 | Hose (L110) | 1 шт. | — | |
|
| 32 | 90467-09W06-00 | Clip | 2 шт. | — | |
|
| 33 | 1B2-F137W-10-00 | Scoop, Air 1 | 1 шт. | — | |
|
| 34 | 90387-10W66-00 | Collar | 1 шт. | — | |
|
| 35 | 1B2-F1749-00-00 | Collar | 1 шт. | — | |
|
| 36 | 90159-06182-00 | Screw, With Washer | 2 шт. | — | |
|
| 37 | 90269-07076-00 | Rivet | 1 шт. | — | |
|
| 38 | 1B2-F414H-00-00 | Damper, Plate 1 | 1 шт. | — | |
|
| 39 | 1B2-F137X-10-00 | Scoop, Air 2 | 1 шт. | — | |
|
| 40 | 90387-10W66-00 | Collar | 1 шт. | — | |
|
| 41 | 1B2-F1749-00-00 | Collar | 1 шт. | — | |
|
| 42 | 90159-06182-00 | Screw, With Washer | 2 шт. | — | |
|
| 43 | 90269-07076-00 | Rivet | 1 шт. | — | |
|
| 44 | 1B2-F414H-00-00 | Damper, Plate 1 | 1 шт. | — | |
|
| 45 | 1B2-F414J-00-00 | Damper, Plate 2 | 1 шт. | — | |
|
| 46 | 19C-F4230-30-00 | Graphic Set 1 | 0 шт. | — | |
|
| 47 | 19C-F4250-30-00 | Graphic Set 2 | 0 шт. | — | |
|
