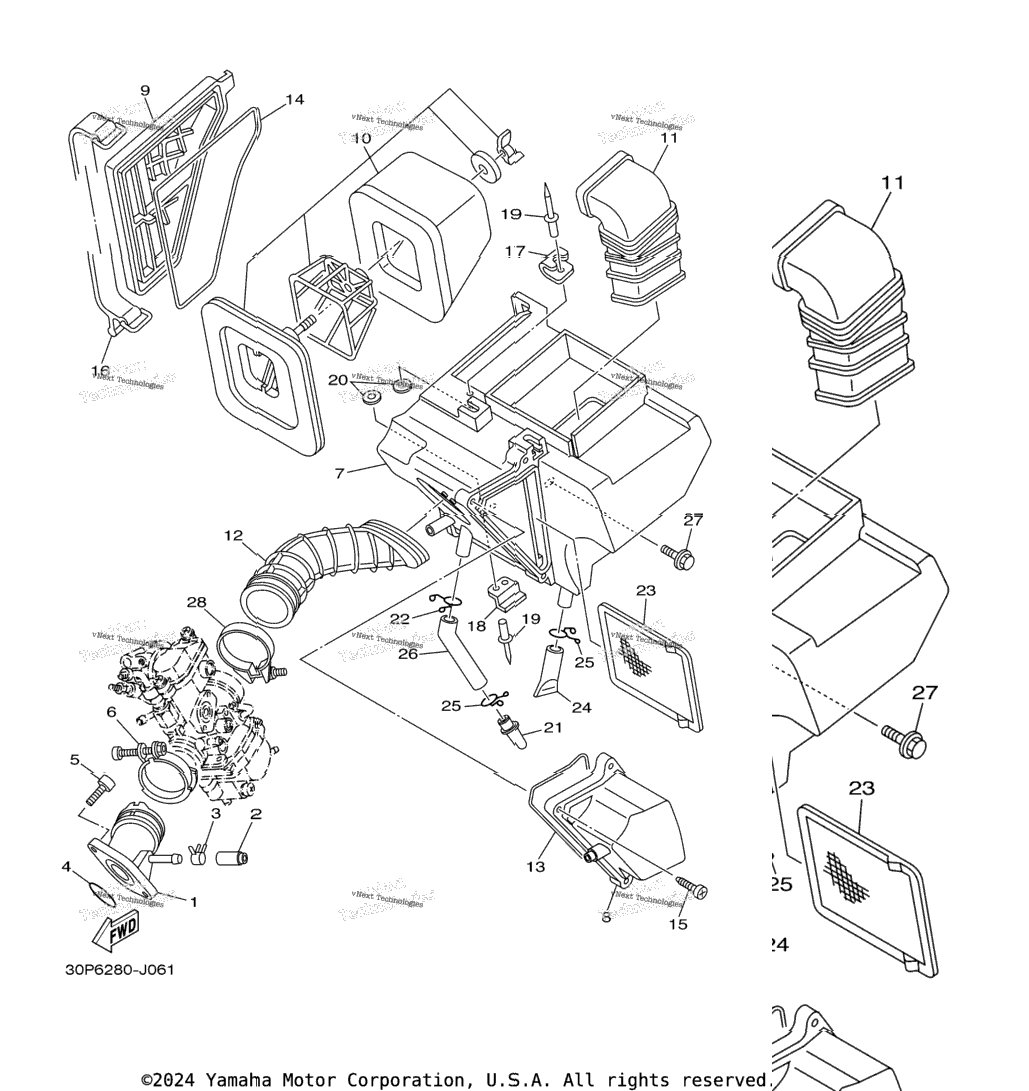

| 1 | 5HP-13586-00-00 | Joint, Carburetor 1 | 1 шт. | — | |
|
| 2 | 16G-13569-00-00 | Plug, Blind | 1 шт. | — | |
|
| 3 | 90467-10819-00 | Clip | 1 шт. | — | |
|
| 4 | 93210-30800-00 | O-Ring | 1 шт. | — | |
|
| 5 | 9131M-06020-00 | Bolt | 2 шт. | — | |
|
| 6 | 90450-44062-00 | Hose Clamp Assy | 1 шт. | — | |
|
| 7 | 1B2-E4411-00-00 | Case, Air Cleaner 1 | 1 шт. | — | |
|
| 8 | 1B2-E4412-20-00 | Cap, Cleaner Case 1 | 0 шт. | — | |
|
| 9 | 1B2-E4422-00-00 | Cap, Cleaner Case 2 | 1 шт. | — | |
|
| 10 | 5HP-14450-00-00 | Element Assy, Air Cleaner | 1 шт. | — | |
|
| 11 | 1B2-E4437-00-00 | Duct | 1 шт. | — | |
|
| 12 | 1B2-E4453-00-00 | Joint, Air Cleaner 1 | 1 шт. | — | |
|
| 13 | 1B2-E4452-00-00 | Seal | 1 шт. | — | |
|
| 14 | 1B2-E4452-10-00 | Seal | 1 шт. | — | |
|
| 15 | 9770M-50520-00 | Screw, Tapping | 3 шт. | — | |
|
| 16 | 1B2-F811G-00-00 | Band | 1 шт. | — | |
|
| 17 | 1B2-E4484-00-00 | Plate, Cleaner Case Fitting | 1 шт. | — | |
|
| 18 | 1B2-E4436-00-00 | Hook | 1 шт. | — | |
|
| 19 | 90267-40804-00 | Rivet, Blind | 3 шт. | — | |
|
| 20 | 9290M-04200-00 | Washer | 3 шт. | — | |
|
| 21 | 1B2-E443E-20-00 | Pipe, Drain | 0 шт. | — | |
|
| 22 | 90467-15012-00 | Clip | 1 шт. | — | |
|
| 23 | 1B2-E4472-00-00 | Plate, Element | 1 шт. | — | |
|
| 24 | 1B2-E443E-10-00 | Pipe, Drain | 1 шт. | — | |
|
| 25 | 90467-14015-00 | Clip | 2 шт. | — | |
|
| 26 | 1B2-E443G-00-00 | Pipe, Drain 2 | 1 шт. | — | |
|
| 27 | 90119-06044-00 | Bolt, With Washer | 3 шт. | — | |
|
| 28 | 90460-46206-00 | Clamp, Hose | 1 шт. | — | |
|
