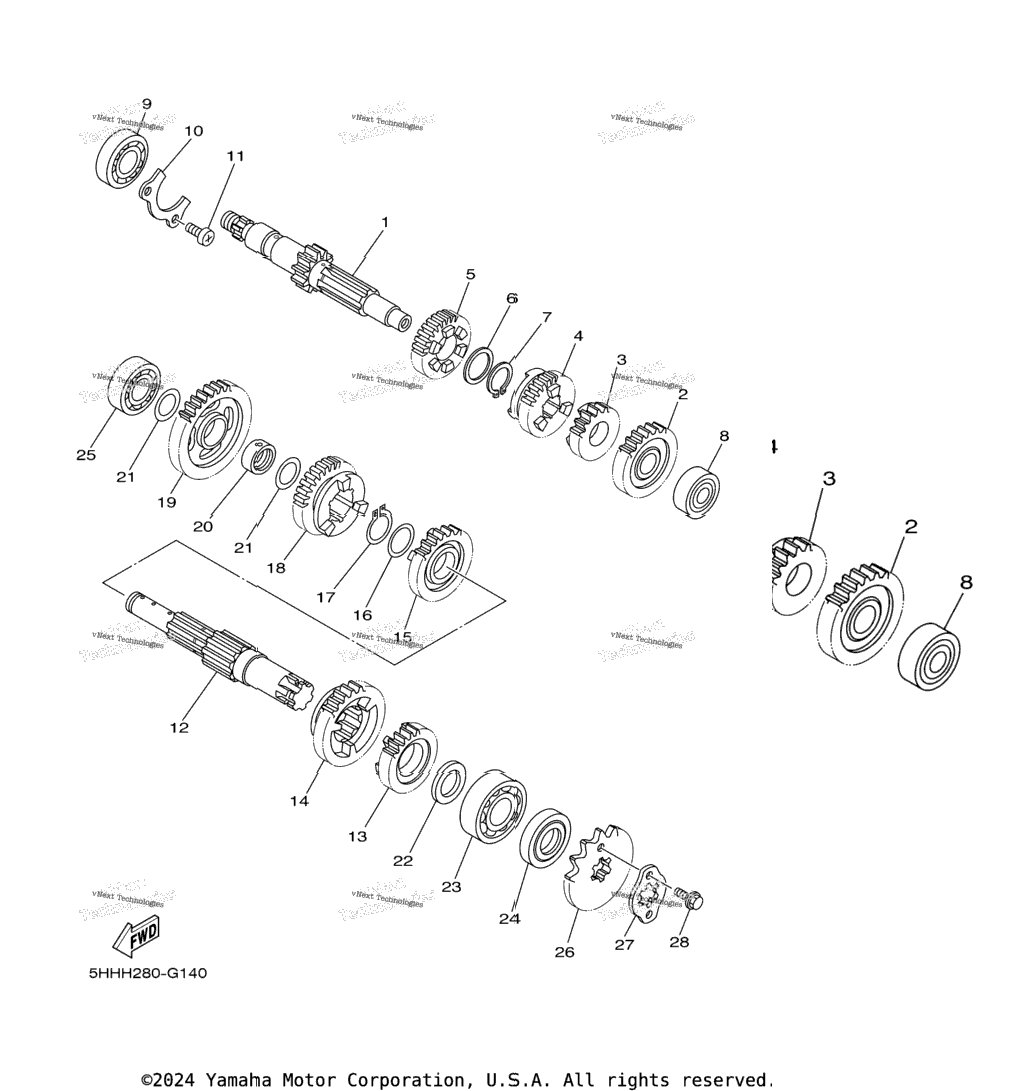

| 1 | 5HH-E7411-10-00 | Axle, Main | 1 шт. | — | |
|
| 2 | 5HH-E7151-20-00 | Gear, 5Th Pinion (24T) | 1 шт. | — | |
|
| 3 | 5HH-E7121-20-00 | Gear, 2Nd Pinion (18T) | 1 шт. | — | |
|
| 4 | 5AP-E7131-00-00 | Gear, 3Rd Pinion (19T) | 1 шт. | — | |
|
| 5 | 5HH-E7141-20-00 | Gear, 4Th Pinion (22T) | 0 шт. | — | |
|
| 6 | 90201-20266-00 | Washer, Plate (T=1.0) | 1 шт. | — | |
|
| 7 | 93410-20809-00 | Circlip | 1 шт. | — | |
|
| 8 | 93306-201X3-00 | Bearing | 1 шт. | — | |
|
| 9 | 93306-203YG-00 | Bearing | 1 шт. | — | |
|
| 10 | 5HH-E7471-00-00 | Plate, Cover | 1 шт. | — | |
|
| 11 | 9851M-06014-00 | Screw, Pan Head | 0 шт. | — | |
|
| 12 | 5HH-E7402-30-00 | Drive Axle Assy AP 5LX-E7402-00-00 | 0 шт. | — | |
|
| 13 | 5HH-E7251-20-00 | Gear, 5Th Wheel (21T) | 1 шт. | — | |
|
| 14 | 5HH-E7221-20-00 | Gear, 2Nd Wheel (32T) | 1 шт. | — | |
|
| 15 | 5LX-E7231-10-00 | Gear, 3Rd Wheel (25T) | 1 шт. | — | |
|
| 16 | 90214-19002-00 | Washer, Claw | 1 шт. | — | |
|
| 17 | 93410-22039-00 | Circlip | 1 шт. | — | |
|
| 18 | 5HH-E7241-00-00 | Gear, 4Th Whell (23T) | 1 шт. | — | |
|
| 19 | 5HH-E7211-20-00 | Gear, 1St Wheel (37T) | 1 шт. | — | |
|
| 20 | 5LX-E7258-00-00 | Collar 1 | 1 шт. | — | |
|
| 21 | 90201-177G4-00 | Washer, Plate | 2 шт. | — | |
|
| 22 | 90201-20272-00 | Washer, Plate | 1 шт. | — | |
|
| 23 | 93306-204X8-00 | Bearing | 1 шт. | — | |
|
| 24 | 93102-20143-00 | Oil Seal | 1 шт. | — | |
|
| 25 | 93306-203XD-00 | Bearing | 1 шт. | — | |
|
| 26 | 93822-13213-00 | Sprocket, Drive (13T) | 1 шт. | — | |
|
| 27 | 1B2-E7456-00-00 | Holder, Sprocket | 1 шт. | — | |
|
| 28 | 9131M-05010-00 | Bolt | 2 шт. | — | |
|
