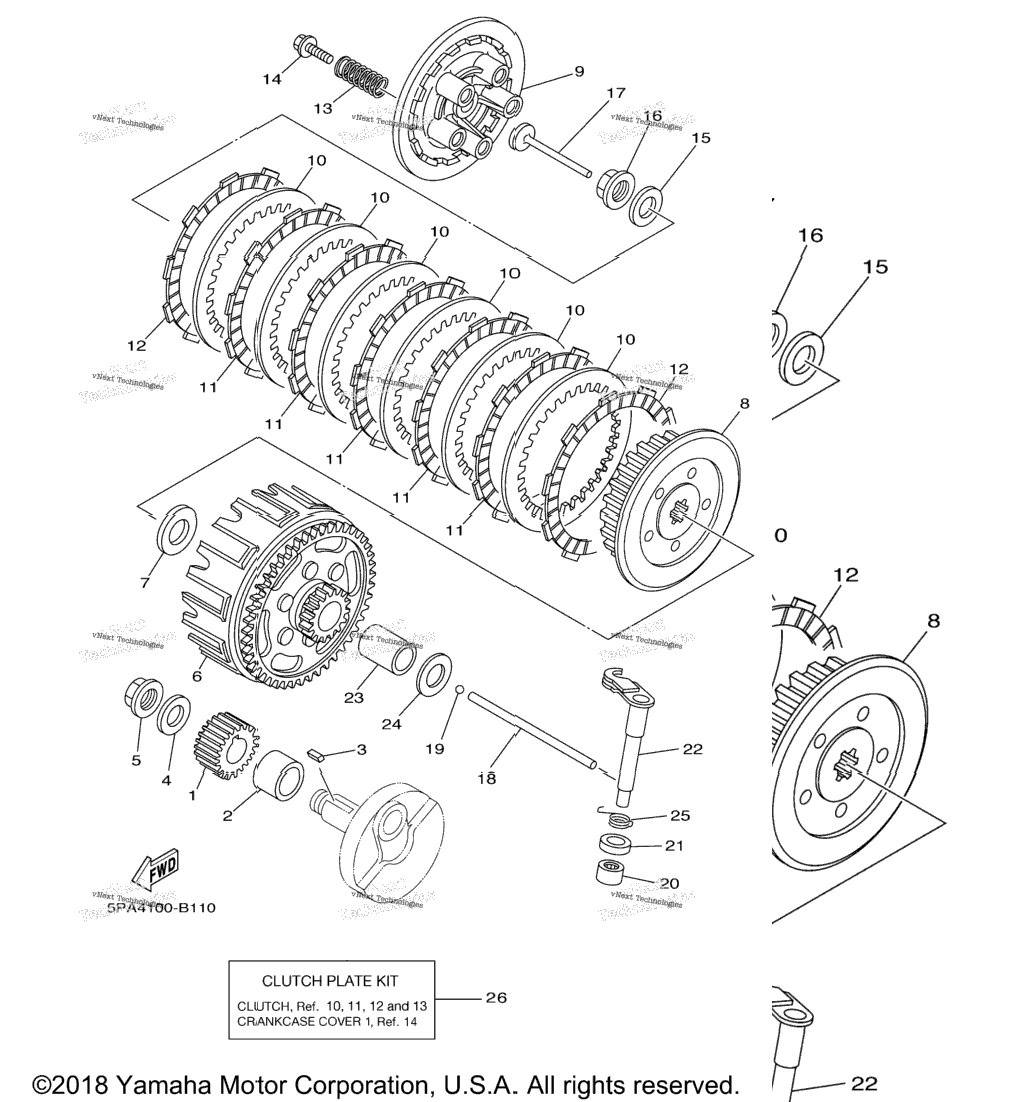

| 1 | 5PA-16111-00-00 | Gear, Primary Drive | 1 шт. | — | |
|
| 2 | 90387-20488-00 | Collar | 1 шт. | — | |
|
| 3 | 90282-05001-00 | Key, Straight (5Mmx16mm) | 1 шт. | — | |
|
| 6 | 5PA-16150-10-00 | Primary Driven Gear Comp | 1 шт. | — | |
|
| 7 | 90201-17558-00 | Washer, Plate | 1 шт. | — | |
|
| 8 | 5PA-16371-10-00 | Boss, Clutch | 1 шт. | — | |
|
| 9 | 2TK-16351-00-00 | Plate, Pressure 1 | 1 шт. | — | |
|
| 10 | 131-16324-00-00 | Plate, Clutch 1 INCL. IN CLUTCH KIT | 6 шт. | — | |
|
| 11 | 4ES-16321-00-00 | Plate, Friction INCL. IN CLUTCH KIT | 5 шт. | — | |
|
| 12 | 21V-16321-00-00 | Plate, Friction | 2 шт. | — | |
|
| 12 | 3XP-16321-00-00 | Plate, Friction INCL. IN CLUTCH KIT | 2 шт. | — | |
|
| 13 | 90501-204A0-00 | Spring, Compression INCL. IN CLUTCH KIT | 5 шт. | — | |
|
| 14 | 90119-05001-00 | Bolt, With Washer | 5 шт. | — | |
|
| 15 | 90208-12015-00 | Washer, Conical Spring | 0 шт. | — | |
|
| 15 | 90208-12015-00 | Washer, Conical Spring | 0 шт. | — | |
|
| 16 | 90179-12007-00 | Nut | 1 шт. | — | |
|
| 16 | 90179-12007-00 | Nut | 1 шт. | — | |
|
| 17 | 4ES-16356-00-00 | Rod, Push 1 | 1 шт. | — | |
|
| 18 | 5PA-16357-00-00 | Rod, Push 2 | 1 шт. | — | |
|
| 19 | 93503-16003-00 | Ball | 1 шт. | — | |
|
| 20 | 93315-11206-00 | Bearing | 1 шт. | — | |
|
| 21 | 93102-12224-00 | Oil Seal | 1 шт. | — | |
|
| 22 | 4ES-16381-00-00 | Push Lever Comp | 1 шт. | — | |
|
| 23 | 5PA-16181-00-00 | Spacer 1 | 1 шт. | — | |
|
| 24 | 90201-171G6-00 | Washer, Plate | 1 шт. | — | |
|
| 25 | 90508-14016-00 | Spring, Torsion | 1 шт. | — | |
|
| 26 | 5PA-W001G-00-00 | Clutch Plate Kit NOT SHOWN | 1 шт. | — | |
|
