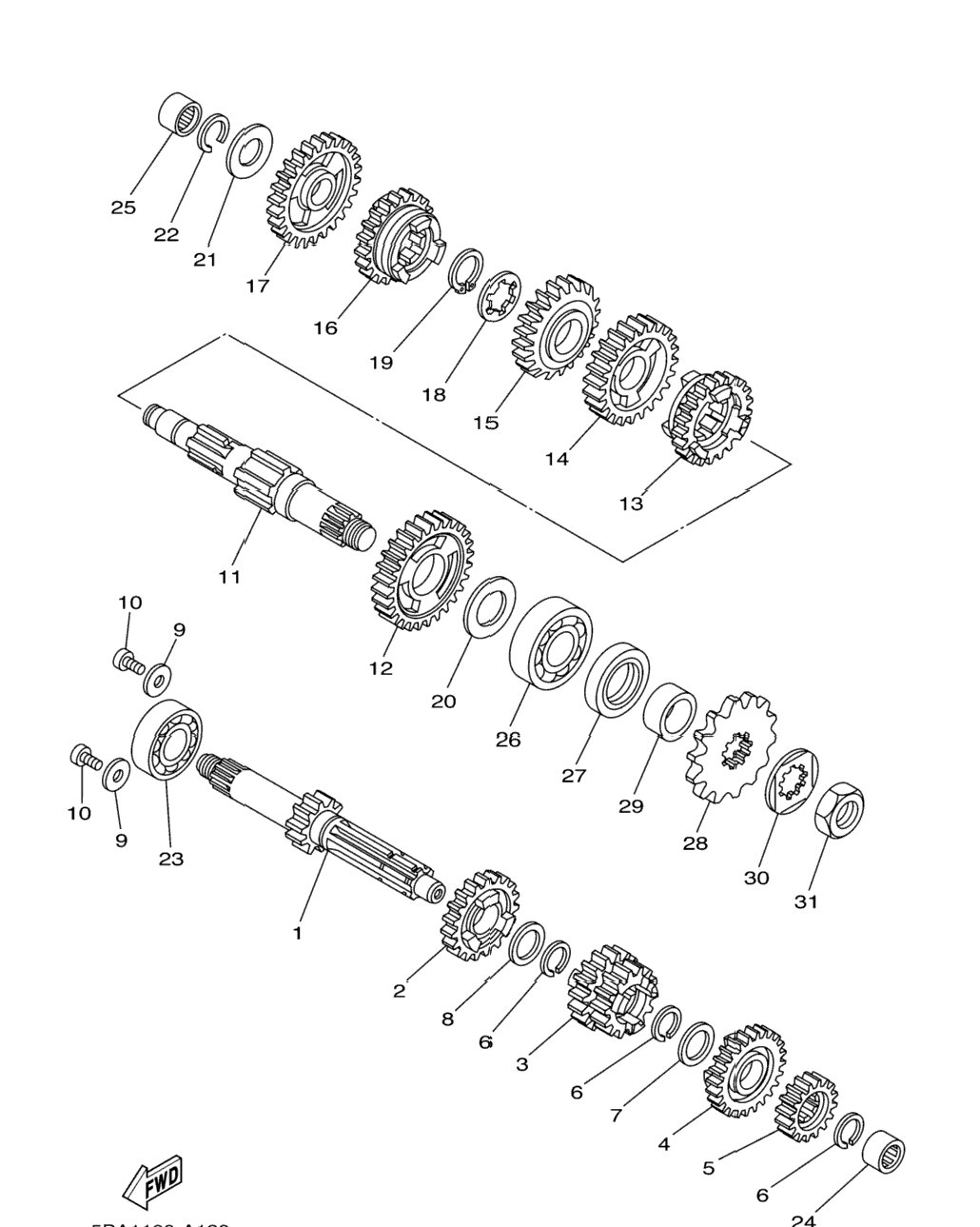

| 1 | 5PA-17411-00-00 | Axle, Main (11T) | 1 шт. | — | |
|
| 2 | 4ES-17151-10-00 | Gear, 5Th Pinion (23T) | 1 шт. | — | |
|
| 3 | 4ES-17131-03-00 | Gear, 3Rd Pinion (17T/17T) | 1 шт. | — | |
|
| 4 | 4ES-17161-10-00 | Gear, 6Th Pinion (25T) | 1 шт. | — | |
|
| 5 | 4ES-17121-01-00 | Gear, 2Nd Pinion (17T) | 1 шт. | — | |
|
| 6 | 93440-17064-00 | Circlip | 3 шт. | — | |
|
| 7 | 90209-14008-00 | Washer | 1 шт. | — | |
|
| 8 | 90201-17545-00 | Washer, Plate | 1 шт. | — | |
|
| 9 | 90201-06060-00 | Washer, Plate | 2 шт. | — | |
|
| 10 | 90157-06008-00 | Screw, Pan Head | 2 шт. | — | |
|
| 11 | 5PA-17421-00-00 | Axle, Drive | 1 шт. | — | |
|
| 12 | 5PA-17221-00-00 | Gear, 2Nd Wheel (32T) | 1 шт. | — | |
|
| 13 | 5PA-17261-00-00 | Gear, 6Th Wheel (25T) | 1 шт. | — | |
|
| 14 | 4ES-17231-10-00 | Gear, 3Rd Wheel (26T) | 1 шт. | — | |
|
| 15 | 5PA-17241-00-00 | Gear, 4Th Wheel (22T) | 1 шт. | — | |
|
| 16 | 4ES-17251-00-00 | Gear, 5Th Wheel (26T) | 1 шт. | — | |
|
| 17 | 4ES-17211-01-00 | Gear, 1St Wheel (27T) | 1 шт. | — | |
|
| 18 | 90209-16209-00 | Washer | 1 шт. | — | |
|
| 19 | 93410-20038-00 | .Circlip | 1 шт. | — | |
|
| 20 | 90201-20611-00 | Washer, Plate | 1 шт. | — | |
|
| 21 | 164-17427-00-08 | Shim 1 (T=0.8) UR | 1 шт. | — | |
|
| 22 | 164-17427-00-06 | Shim 1 (T=0.6) UR | 1 шт. | — | |
|
| 23 | 164-17427-00-10 | Shim 1 (T=1.0) UR | 1 шт. | — | |
|
| 24 | 93440-15012-00 | .Circlip | 1 шт. | — | |
|
| 25 | 93306-20333-00 | Bearing | 1 шт. | — | |
|
| 26 | 93317-11245-00 | Bearing | 1 шт. | — | |
|
| 27 | 93315-31502-00 | Bearing | 1 шт. | — | |
|
| 28 | 93306-20401-00 | Bearing | 1 шт. | — | |
|
| 29 | 93102-26042-00 | Oil Seal | 1 шт. | — | |
|
| 30 | 9382A-15228-00 | Sprocket, Drive (15T) AP | 1 шт. | — | |
|
| 31 | 9382A-14227-00 | Sprocket, Drive (14T) STD | 1 шт. | — | |
|
| 32 | 90387-202A0-00 | Collar | 1 шт. | — | |
|
| 33 | 90215-20261-00 | Washer, Lock | 1 шт. | — | |
|
| 34 | 90179-16226-00 | Nut | 1 шт. | — | |
|
