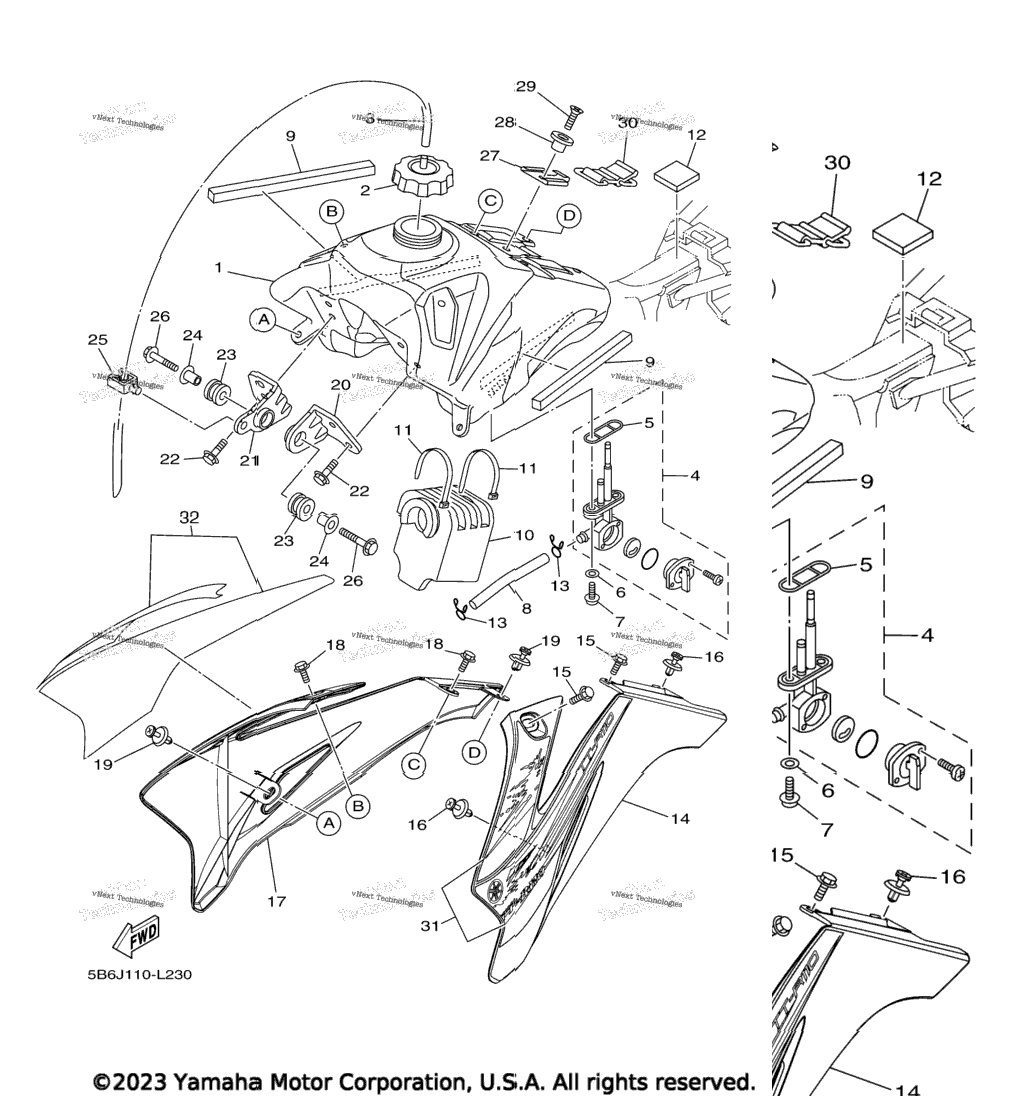

| № | Артикул | Название | Кол-во | Наличие и цены | Действия |
|---|
| 1 | 5B6-24110-00-00 | Fuel Tank Comp | 1 шт. | — | |
|
| 2 | 2FJ-24610-10-00 | Cap Assy | 1 шт. | — | |
|
| 3 | 5B6-21826-10-00 | Pipe, Breather | 1 шт. | — | |
|
| 4 | 1P6-24500-10-00 | Fuel Cock Assy 1 | 1 шт. | — | |
|
| 5 | 1P6-24512-10-00 | . .Gasket | 1 шт. | — | |
|
| 6 | 90202-05193-00 | Washer, Plate | 2 шт. | — | |
|
| 7 | 90149-06108-00 | Screw | 2 шт. | — | |
|
| 8 | 5B6-24311-00-00 | Pipe, Fuel 1 | 1 шт. | — | |
|
| 9 | 5B6-2411J-00-00 | Damper, Side Cover | 2 шт. | — | |
|
| 10 | 5B6-24181-00-00 | Damper, Locating 1 | 0 шт. | — | |
|
| 11 | 90465-13152-00 | Clamp | 2 шт. | — | |
|
| 12 | 2X6-24183-00-00 | Damper, Locating 3 | 0 шт. | — | |
|
| 13 | 90467-09006-00 | Clip | 2 шт. | — | |
|
| 14 | 5B6-2137A-00-00 | Scoop Air Assy. 1 | 1 шт. | — | |
|
| 15 | 90105-06064-00 | Bolt, Flange | 2 шт. | — | |
|
| 16 | 90269-07076-00 | Rivet | 2 шт. | — | |
|
| 17 | 5B6-2137B-00-00 | Scoop Air Assy. 2 | 1 шт. | — | |
|
| 18 | 90105-06064-00 | Bolt, Flange | 2 шт. | — | |
|
| 19 | 90269-07076-00 | Rivet | 2 шт. | — | |
|
| 20 | 5B6-24157-00-00 | Stay, Fuel Tank 1 | 1 шт. | — | |
|
| 21 | 5B6-24158-00-00 | Stay, Fuel Tank 2 | 1 шт. | — | |
|
| 22 | 95802-06010-00 | Bolt, Flange | 4 шт. | — | |
|
| 23 | 90480-18290-00 | Grommet | 2 шт. | — | |
|
| 24 | 90387-066J1-00 | Collar | 2 шт. | — | |
|
| 25 | 90464-13003-00 | Clamp | 1 шт. | — | |
|
| 26 | 95802-06030-00 | Bolt, Flange | 2 шт. | — | |
|
| 27 | 5B6-24116-00-00 | Stay, Fuel Tank 2 | 1 шт. | — | |
|
| 28 | 4EW-2412F-00-00 | Bracket, Seat | 1 шт. | — | |
|
| 29 | 98702-06025-00 | Screw, Flat Head | 1 шт. | — | |
|
| 30 | 5B6-24173-00-00 | Band, Tank Fitting 1 | 1 шт. | — | |
|
| 31 | 5B6-24230-30-00 | Graphic Set 1 | 0 шт. | — | |
|
| 32 | 5B6-24250-30-00 | Graphic Set 2 | 0 шт. | — | |
|
