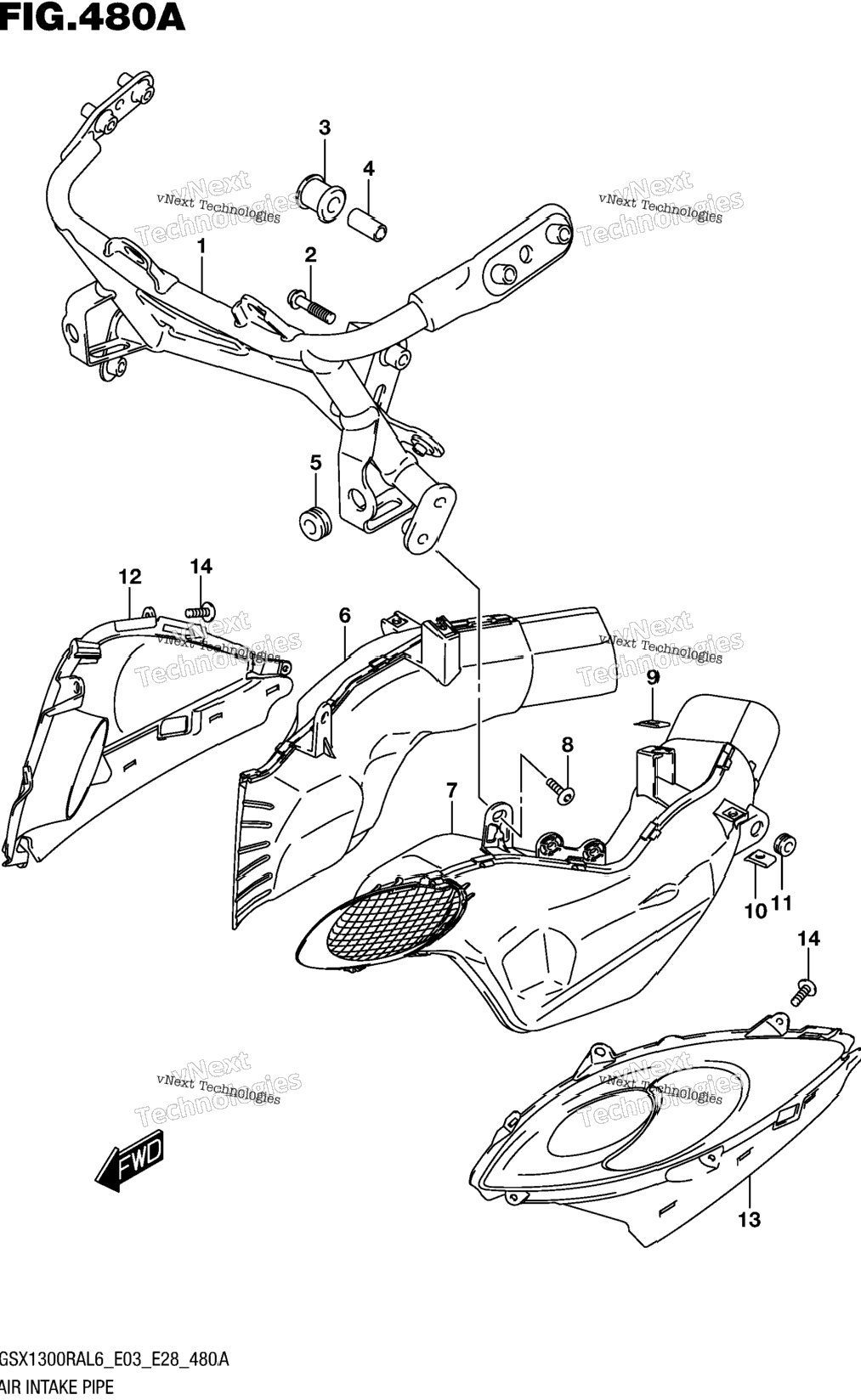

| 1 | 94510-15H00 | BRACE, COWLING | 1 шт. | — | |
|
| 2 | 09103-08367 | BOLT (8X40) | 2 шт. | — | |
|
| 3 | 94541-41C00 | CUSHION, UPPER | 1 шт. | — | |
|
| 4 | 09180-08215 | SPACER (8.6X12.2X26.5) | 1 шт. | — | |
|
| 5 | 09320-08028 | CUSHION (8X26X7) | 2 шт. | — | |
|
| 6 | 94420-15H01 | PIPE, INTAKE RH | 1 шт. | — | |
|
| 7 | 94430-15H01 | PIPE, INTAKE LH | 1 шт. | — | |
|
| 8 | 94423-15H00 | SCREW | 2 шт. | — | |
|
| 9 | 94484-24F00 | NUT COWL | 2 шт. | — | |
|
| 10 | 09148-05038 | NUT | 2 шт. | — | |
|
| 11 | 09320-08028 | CUSHION (8X26X7) | 2 шт. | — | |
|
| 12 | 94671-15H00-YVB | COVER, INTAKE RH (BLACK) FOR AA3 | 1 шт. | — | |
|
| 13 | 94671-15H00-RB5 | COVER, INTAKE RH (WHITE) FOR ARA | 0 шт. | — | |
|
| 14 | 94671-15H00-YYG | COVER, INTAKE RH (RED) FOR A9Z | 1 шт. | — | |
|
| 15 | 94681-15H00-YVB | COVER, INTAKE LH (BLACK) FOR AA3 | 1 шт. | — | |
|
| 16 | 94681-15H00-RB5 | COVER, INTAKE LH (WHITE) FOR ARA | 0 шт. | — | |
|
| 17 | 94681-15H00-YYG | COVER, INTAKE LH (RED) FOR A9Z | 1 шт. | — | |
|
| 18 | 03541-0516A | SCREW | 8 шт. | — | |
|
| 19 | SPECIAL NOTE | COLOR : | 0 шт. | — | |
|
| 20 | SPECIAL NOTE | AA3=YLF(GRAY),YVB(BLACK) | 0 шт. | — | |
|
| 21 | SPECIAL NOTE | ARA=RB5(WHITE),YMD(SILVER) | 0 шт. | — | |
|
| 22 | SPECIAL NOTE | A9Z=YMD(SILVER),YYG(RED) | 0 шт. | — | |
|
