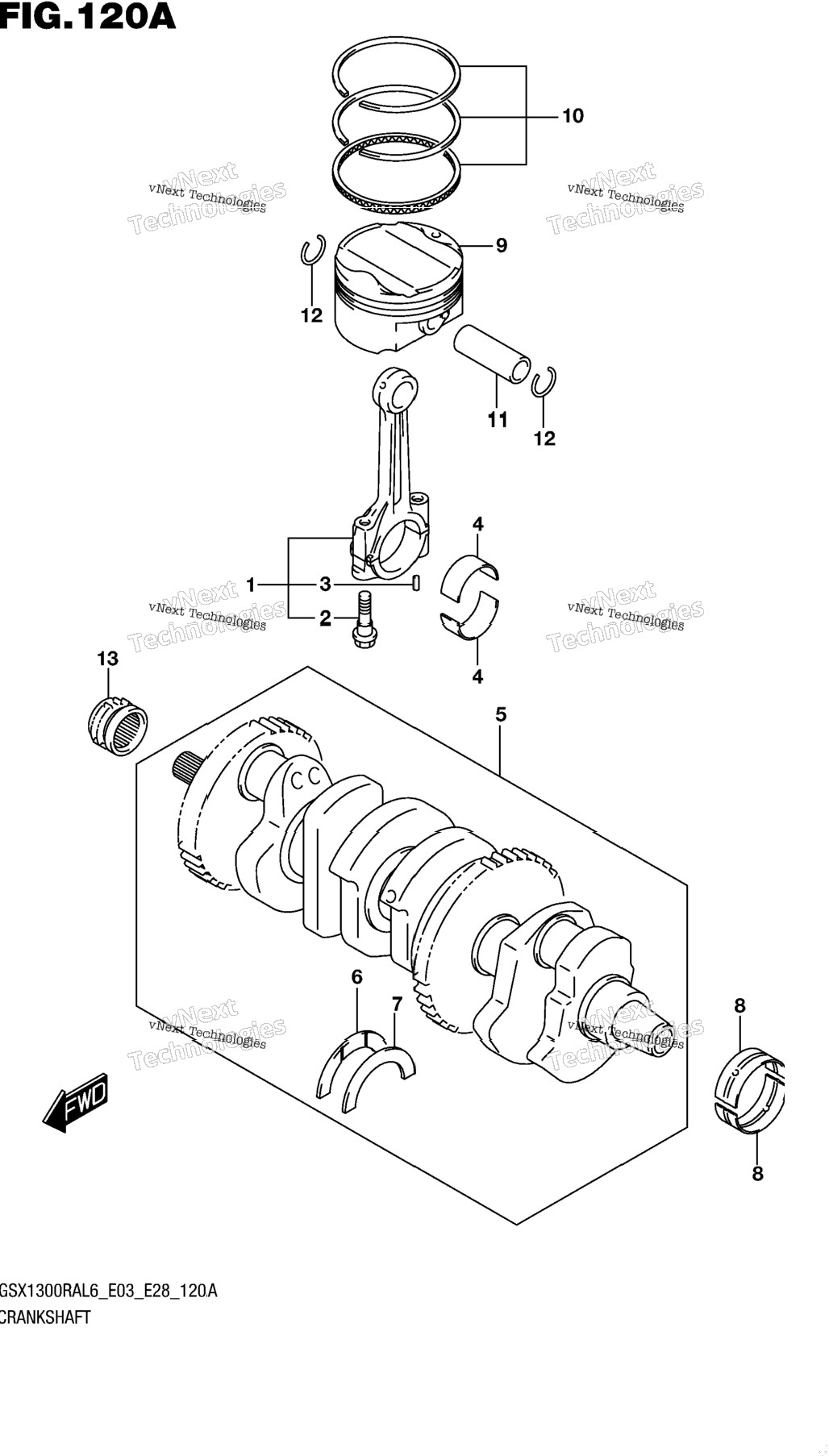

| 1 | 12160-15H00 | ROD ASSY, CONNECTING | 4 шт. | — | |
|
| 2 | 12163-24F10 | .BOLT | 8 шт. | — | |
|
| 3 | 04221-04089 | .PIN | 8 шт. | — | |
|
| 4-1 | 12164-46E01-0A0 | BEARING, CRANK PIN (GREEN) | 8 шт. | — | |
|
| 4-2 | 12164-46E01-0B0 | BEARING, CRANK PIN (BLACK) | 8 шт. | — | |
|
| 4-3 | 12164-46E01-0C0 | BEARING, CRANK PIN (BROWN) | 8 шт. | — | |
|
| 4-4 | 12164-46E01-0D0 | BEARING, CRANK PIN (YELLOW) | 8 шт. | — | |
|
| 5 | 12000-15810 | CRANKSHAFT SET | 1 шт. | — | |
|
| 7-1 | 12228-24F00-0A0 | .BEARING,CRANK THRUST,L (RED) | 1 шт. | — | |
|
| 7-2 | 12228-24F00-0B0 | .BEARING,CRANK THRUST,L (BLAC | 1 шт. | — | |
|
| 7-3 | 12228-24F00-0C0 | .BEARING,CRANK THRUST,L (BLUE | 1 шт. | — | |
|
| 7-4 | 12228-24F00-0D0 | .BEARING,CRANK THRUST (GREEN) | 1 шт. | — | |
|
| 7-4 | 12228-24F00-0D0 | .BEARING,CRANK THRUST (GREEN) | 1 шт. | — | |
|
| 7-5 | 12228-24F00-0E0 | .BEARING,CRANK THRUST,L (YELL | 1 шт. | — | |
|
| 7-6 | 12228-24F00-0F0 | .BEARING,CRANK THRUST,L (WHIT | 1 шт. | — | |
|
| 8-1 | 12229-15H10-0A0 | BEARING,CRANKSHAFT (GREEN) | 10 шт. | — | |
|
| 8-2 | 12229-15H10-0B0 | BEARING,CRANKSHAFT (BLACK) | 10 шт. | — | |
|
| 8-3 | 12229-15H10-0C0 | BEARING,CRANKSHAFT (BROWN) | 10 шт. | — | |
|
| 8-4 | 12229-15H10-0D0 | BEARING,CRANKSHAFT (YELLOW) | 10 шт. | — | |
|
| 8-5 | 12229-15H10-0E0 | BEARING,CRANKSHAFT (BLUE) | 10 шт. | — | |
|
| 9 | 12111-15H00-0F0 | PISTON | 4 шт. | — | |
|
| 10 | 12140-15H10 | RING SET, PISTON | 4 шт. | — | |
|
| 11 | 12151-07D00 | PIN, PISTON | 4 шт. | — | |
|
| 12 | 09381-18003 | CIRCLIP | 8 шт. | — | |
|
| 13 | 12731-24F10 | SPROCKET,CAM CHAIN DRIVE | 1 шт. | — | |
|
