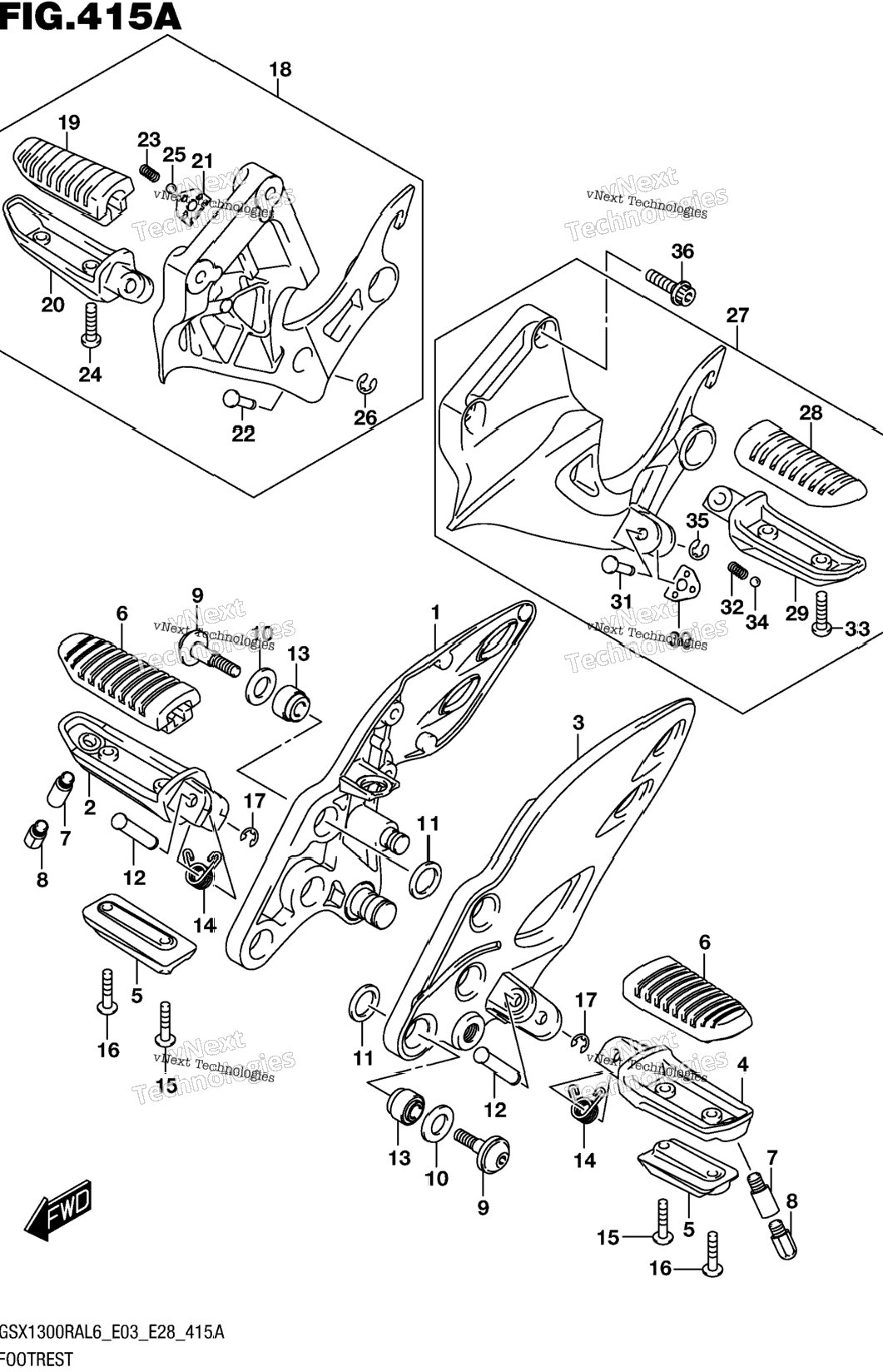

| 1 | 43510-15H00 | BRACKET, FRONT FOOTREST RH | 1 шт. | — | |
|
| 2 | 43511-44G10 | BAR,FR FOOTREST,R | 1 шт. | — | |
|
| 3 | 43521-15H00 | BRACKET, FRONT FOOTREST LH | 1 шт. | — | |
|
| 4 | 43521-44G10 | BAR,FR FOOTREST,L | 1 шт. | — | |
|
| 5 | 43536-44G00 | BALANCER, FRONT FOOTREST | 2 шт. | — | |
|
| 6 | 43550-44G10 | RUBBER, FOOTREST | 2 шт. | — | |
|
| 7 | 43576-15H00 | SENSOR,FOOTREST | 2 шт. | — | |
|
| 8 | 43576-15H10 | BOLT, BANK SENSOR | 2 шт. | — | |
|
| 9 | 09106-08147 | BOLT (8X30) | 6 шт. | — | |
|
| 10 | 09161-13004 | WASHER (13.7X24X2) | 6 шт. | — | |
|
| 11 | 09161-17002 | WASHER (17.2X24X2.2) | 6 шт. | — | |
|
| 12 | 09208-08019 | PIN | 2 шт. | — | |
|
| 13 | 09319-08045 | BUSH (8.4X20X16) | 6 шт. | — | |
|
| 14 | 09448-14046 | SPRING | 2 шт. | — | |
|
| 15 | 02142-0525A | SCREW | 2 шт. | — | |
|
| 16 | 02142-0530A | SCREW | 2 шт. | — | |
|
| 18 | 43600-15H20 | FOOTREST ASSY, PILLION RH | 1 шт. | — | |
|
| 20 | 43611-44G10 | .BAR, PILLION FOOTREST RH | 1 шт. | — | |
|
| 27 | 43700-15H20 | FOOTREST ASSY, PILLION LH | 1 шт. | — | |
|
| 28 | 43550-44G00 | .RUBBER | 1 шт. | — | |
|
| 28 | 43550-44G00 | .RUBBER | 1 шт. | — | |
|
| 29 | 43621-44G10 | .BAR, PILLION FOOTREST LH | 1 шт. | — | |
|
| 30 | 43816-01H10 | PLATE,PILLION FOOTREST | 1 шт. | — | |
|
| 30 | 43816-01H10 | PLATE,PILLION FOOTREST | 1 шт. | — | |
|
| 31 | 09208-08020 | .PIN | 1 шт. | — | |
|
| 31 | 09208-08020 | .PIN | 1 шт. | — | |
|
| 32 | 09440-05003 | .SPRING | 1 шт. | — | |
|
| 32 | 09440-05003 | .SPRING | 1 шт. | — | |
|
| 33 | 02142-0516A | .SCREW | 2 шт. | — | |
|
| 33 | 02142-0516A | .SCREW | 2 шт. | — | |
|
| 34 | 06111-07004 | .BALL | 1 шт. | — | |
|
| 34 | 06111-07004 | .BALL | 1 шт. | — | |
|
| 35 | 08332-1106A | E-RING | 1 шт. | — | |
|
| 35 | 08332-1106A | E-RING | 2 шт. | — | |
|
| 35 | 08332-1106A | E-RING | 1 шт. | — | |
|
| 36 | 09106-08121 | BOLT (8X30) | 4 шт. | — | |
|
