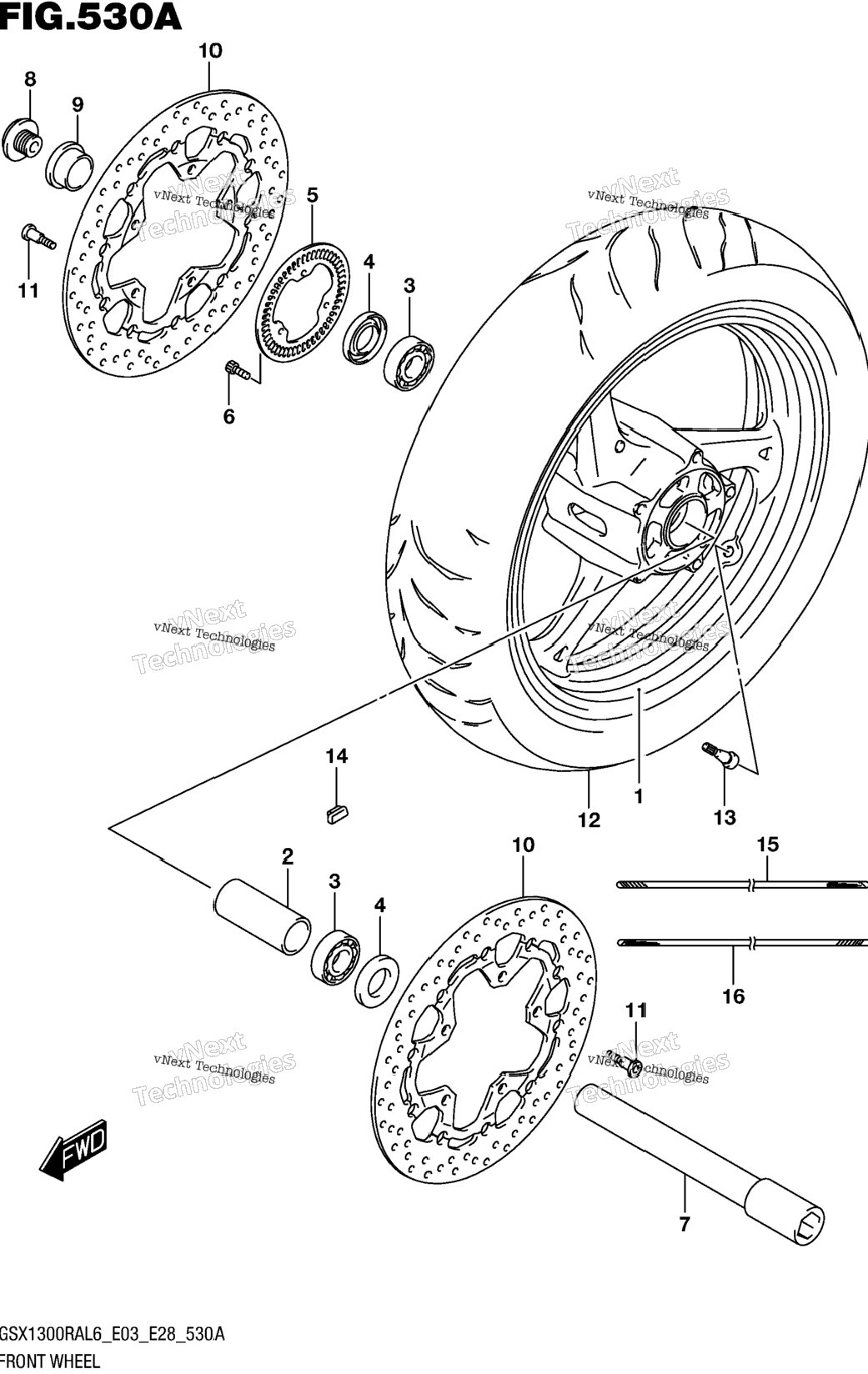

| 1 | 54111-15H10-019 | (BLACK | 0 шт. | — | |
|
| 1 | 54111-15H10-019 | WHEEL, FRONT (17M/CXMT3.50) | 1 шт. | — | |
|
| 2 | 54731-33E20 | SPACER, HUB BEARING | 1 шт. | — | |
|
| 3 | 09262-25167 | BEARING (25X52X15) | 2 шт. | — | |
|
| 4 | 09285-32004 | .SEAL,OIL (32X52X7) | 2 шт. | — | |
|
| 5 | 54162-27G00 | RING, SPEED SENSOR FR (50T) | 1 шт. | — | |
|
| 6 | 07130-0512A | BOLT | 3 шт. | — | |
|
| 7 | 54711-15H00 | AXLE, FRONT | 1 шт. | — | |
|
| 8 | 54712-41G10 | BOLT, FRONT AXLE | 1 шт. | — | |
|
| 9 | 54751-41G10 | SPACER, FRONT AXLE, RH | 1 шт. | — | |
|
| 10 | 59210-15H10 | DISC, FRONT BRAKE | 2 шт. | — | |
|
| 11 | 09106-08160 | BOLT (8X21) | 10 шт. | — | |
|
| 12 | 55110-24F60 | 120/70ZR17 M/C (58W) BT015F | 0 шт. | — | |
|
| 12 | 55110-24F60 | TIRE, FRONT BRIDGESTONE | 1 шт. | — | |
|
| 13 | 43130-24A00 | VALVE ASSY,WHEEL RIM (TR412) | 1 шт. | — | |
|
| 14-1 | 55411-22H00 | BALANCER,WHEEL (10G) 10G | 1 шт. | — | |
|
| 14-2 | 55412-22H00 | BALANCER,WHEEL (20G) 20G | 1 шт. | — | |
|
| 14-3 | 55413-22H00 | BALANCER,WHEEL (30G) 30G | 1 шт. | — | |
|
| 15-1 | 68251-15H00-AWZ | (BLACK/RED | 0 шт. | — | |
|
| 15-1 | 68251-15H00-AWZ | TAPE, WHEEL FRONT RH FOR AA3 | 0 шт. | — | |
|
| 15-2 | 68251-15H00-GYR | (BLACK/SILVER | 0 шт. | — | |
|
| 15-2 | 68251-15H00-GYR | TAPE, WHEEL FRONT RH FOR ARA,A9Z | 0 шт. | — | |
|
| 16-1 | 68252-15H00-AWZ | (BLACK/RED | 0 шт. | — | |
|
| 16-1 | 68252-15H00-AWZ | TAPE, WHEEL FRONT LH FOR AA3 | 0 шт. | — | |
|
| 16-2 | 68252-15H00-GYR | (BLACK/SILVER | 0 шт. | — | |
|
| 16-2 | 68252-15H00-GYR | TAPE, WHEEL FRONT LH FOR ARA,A9Z | 1 шт. | — | |
|
| 17 | SPECIAL NOTE | A9Z=YMD(SILVER),YYG(RED) | 0 шт. | — | |
|
| 17 | SPECIAL NOTE | AA3=YLF(GRAY),YVB(BLACK) | 0 шт. | — | |
|
| 17 | SPECIAL NOTE | ARA=RB5(WHITE),YMD(SILVER) | 0 шт. | — | |
|
| 17 | SPECIAL NOTE | COLOR : | 0 шт. | — | |
|
