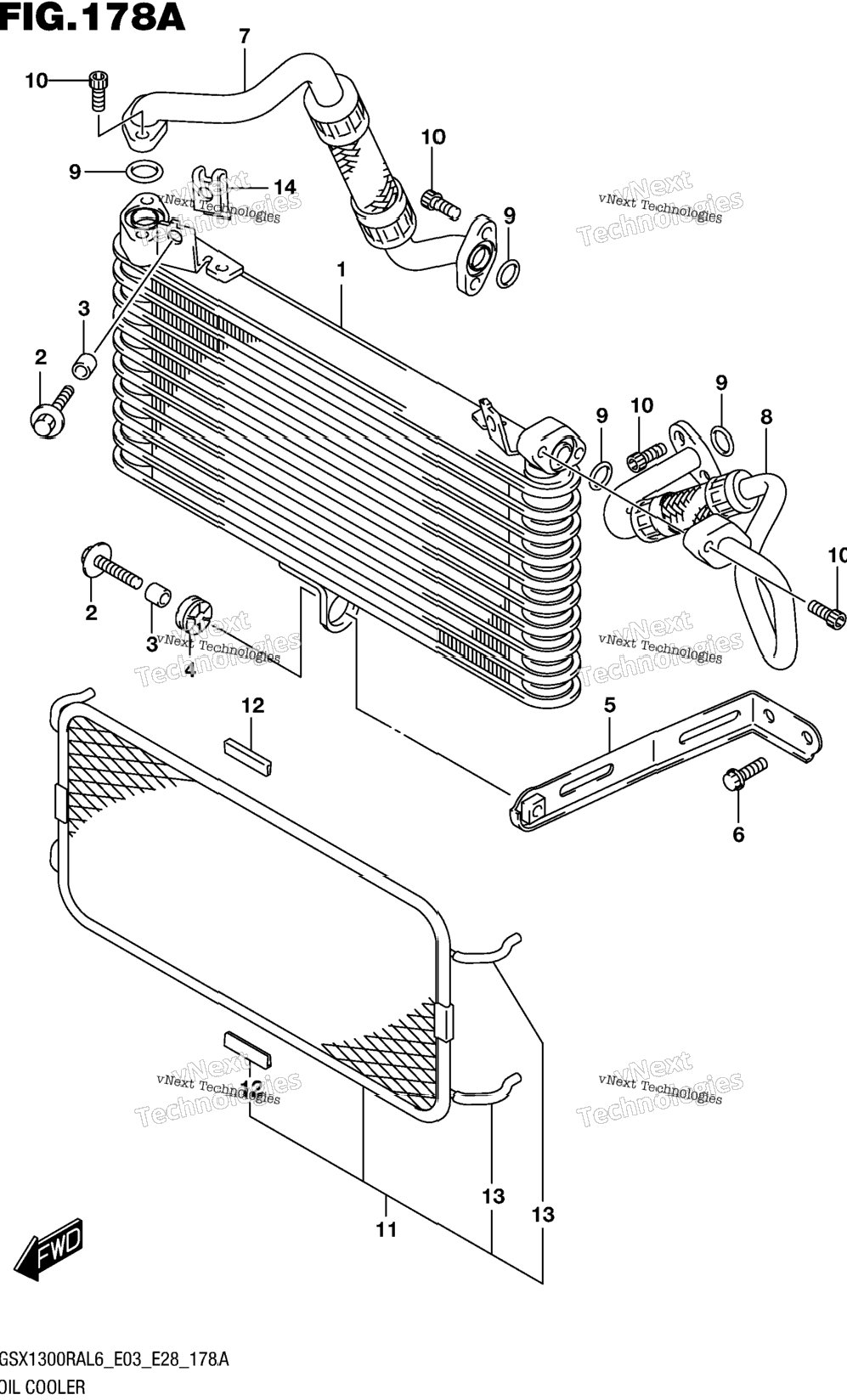

| 1 | 16600-15H20 | COOLER ASSY, OIL | 1 шт. | — | |
|
| 2 | 09118-06097 | BOLT (6X25) | 3 шт. | — | |
|
| 3 | 09180-06290 | SPACER (6.5X10X12) | 3 шт. | — | |
|
| 4 | 09320-10051 | CUSHION | 1 шт. | — | |
|
| 5 | 16640-24F00 | BRACKET, OIL COOLER | 1 шт. | — | |
|
| 6 | 01550-0612A | BOLT | 2 шт. | — | |
|
| 7 | 16460-15H00 | HOSE, OIL COOLER RH | 0 шт. | — | |
|
| 8 | 16470-15H00 | HOSE, OIL COOLER LH | 1 шт. | — | |
|
| 9 | 09280-15015 | O RING (D:2.4,ID:16) | 4 шт. | — | |
|
| 10 | 09106-06073 | BOLT (6X16) | 8 шт. | — | |
|
| 11 | 16650-15H00 | GUARD, OIL COOLER | 1 шт. | — | |
|
| 12 | 17765-09F00 | .PROTECTOR, CTR | 2 шт. | — | |
|
| 13 | 09352-30503-600 | .HOSE (3X5X600) L:600->40 | 4 шт. | — | |
|
| 14 | 17802-14F00 | .NUT,RADIATOR FAN | 2 шт. | — | |
|
